To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | JUNQI |
| Certification: | CE,ROHS, UL |
| Model Number: | BLSD2410DC-2Q-N |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag+ carton |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T,L/C,Paypal |
| Supply Ability: | 1000sets/day |
| Product Name: | Brushless Dc Motor Driver | Working Voltage: | 24VDC |
|---|---|---|---|
| Voltage Range: | 17~32VDC | Peak Current: | 10A |
| Continue Current: | 5A | Output Power: | 120W |
| Reference Input: | 0~10V/PWM/Frequency | Size: | W82.5xL162xH29mm |
| High Light: | 42mm DC Motor Driver,42mm Brushless Motor Driver,BLSD2410DC Motor Speed Controller |
||
Features:
1. Surface-mount Technology and small size.
2. 2-Quadrant PI Closed-loop control of speed with good linearity.
3. Variable Parameter settings for different motors
4. Control functions of F/R, enable, speed reference and output functions of speed pulse(PG), alarm. Over temperature protection.
5. Three kinds of reference inputs: analog voltage, PWM, Frequency.
6. Suitable for 3-phase BLDC motors with hall sensors.
7. Use of industrial grade chips.
Model and Specification:
N series 2-Quadrant BLDC Motor Speed Driver:
| Model |
Voltage
|
I peak (A) |
I cont (A) |
Po (W) |
Reference Input |
Size (mm) |
| BLSD2410DC-2Q-N |
24VDC
|
10 | 5 | 120 |
0~10v/ PWM/ Frequency
|
W82.5,L162,H29 |
| BLSD2420DC-2Q-N | 20 | 10 | 240 | |||
| BLSD2430DC-2Q-N | 30 | 15 | 360 |
Driver Numbering Information:
BLSD 12 10 DC -2Q-N-T
BLSD: BLDC Speed Driver
12: Rated Voltage(VDC)
10: Peak Current Limit(A)
DC: DC Power supply
2Q: 2-Quadrant Driving Mode
N: N series(normal size and variable parameters)
T : -40~+65℃ Ta, Unlabelled=-10~+45℃ Ta
Notice:
1.Select peak current of driver: Ip(A)≧2*Ir(A) or Ip(A)≧4*Pom/(1.414*Vp), Irm=rated current of motor(A) Pom=Rated output power of motor(W), Vp=AC supply voltage of Driver(Vrms)
2. Driving quadrant: The drivers are only used in I&III quadrant.
3. Interference from leads: The Hall signals can be disturbed by switched current in windings leads when length is more than 3m. Don't intertwine them together. It is better to use shielded leads.
4. Motor Insultaion: Hall sensors to Windings/Hall sensors to Motor Cse/Windings to Motor Case
Insulation Resistance＞100MOhm@1500VDC
Dielectric strength＜1mA@1200VAC/50-60Hz/1 minute
5.Safety: The PE terminal labeled on the driver must be connected to the protection earth point of the supply system.
Typical connections:
BLDC Driver Inter face Port Descritpion:
Mechanical Size:

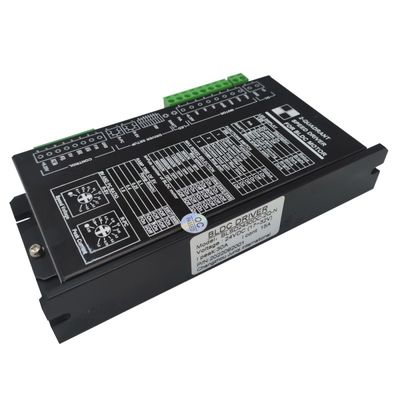

Picture Details:
