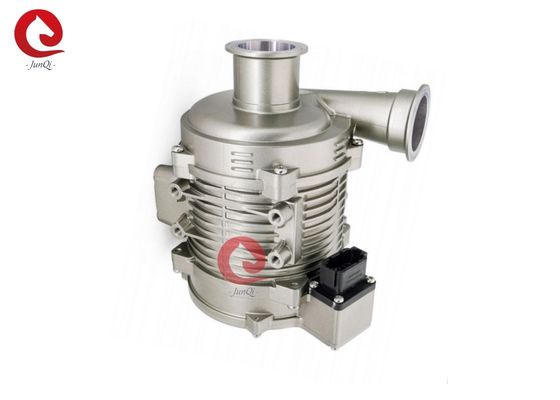

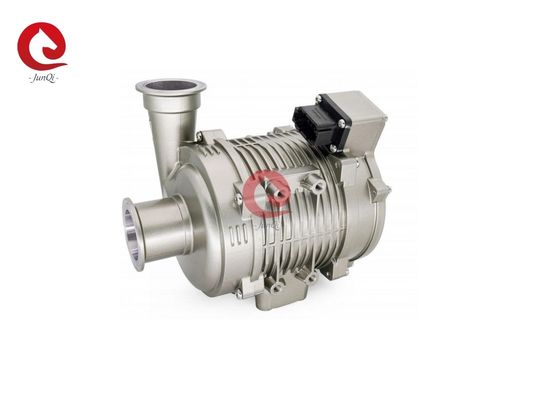

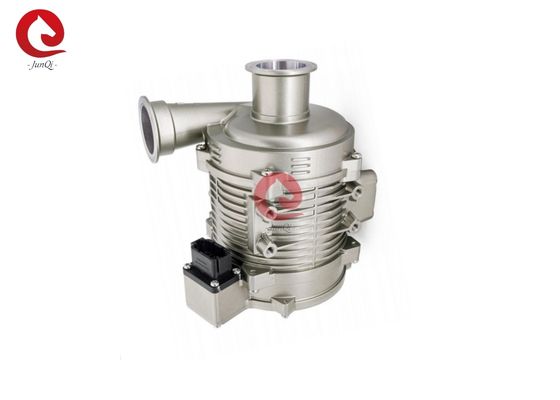

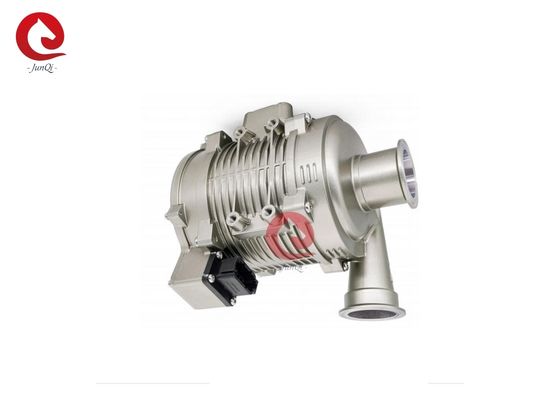

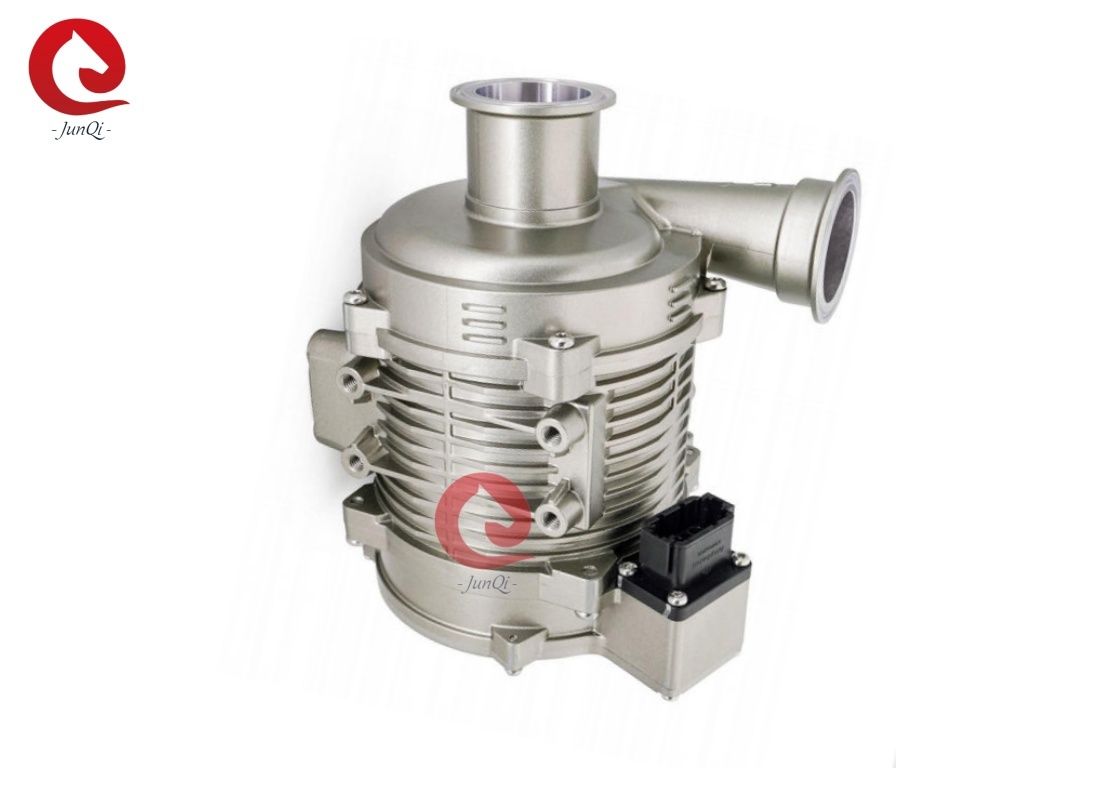

JUNQI High Voltage 540VDC 250L/min 20m lift BLDC water pump with chuck plate used for IT fluid cooling Solutions

JUNQI High Voltage 540VDC 250L/min 20m lift BLDC water pump with chuck plate used for IT fluid cooling Solutions

Technical Parameters:

Model: JP1500-540V

Rated Voltage: 540VDC

Working voltage range: 400~800VDC

Protection level: IP67

Ambient temperature: -40~85℃

Medium: Coolant liquid

Rated Current: 2.8A

Noise: ≤70dB

Rated Flow rate: 250L/min   H=20m

Rated Power: 1500W

Working life: ≥20000h

Weight: 5.3kg

Features:

♦ Pump motor brushless dc motor, high efficency;

♦ Long life(more than 20000h), low noise;

♦ Troubleshooting: When there is a fault, the fault feedback line is ow and when there is no fault, the fault feedback line is high ( The fault evel is based on customer requirements);

♦ Built-in a variety of protection functions and pwer reverse protection function.

H-Q performance curve:

Dimensions(mm):

PWM control chart:

Workshop pictures:

Certificates:
