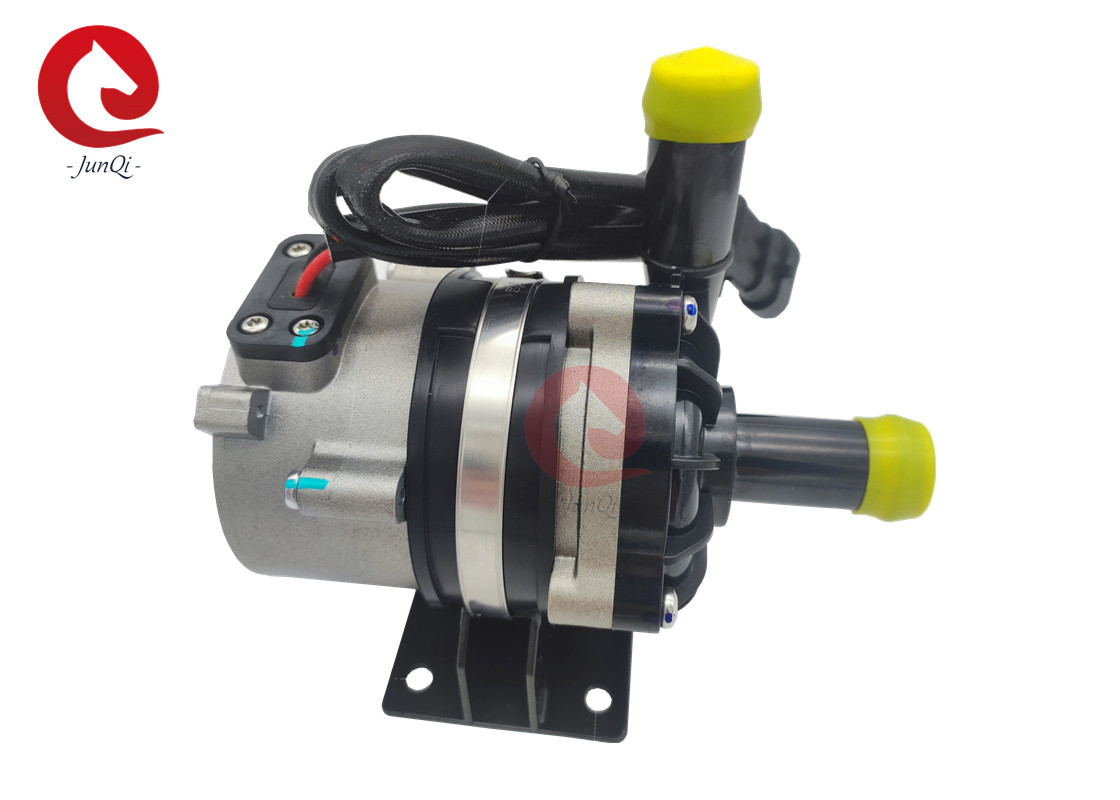

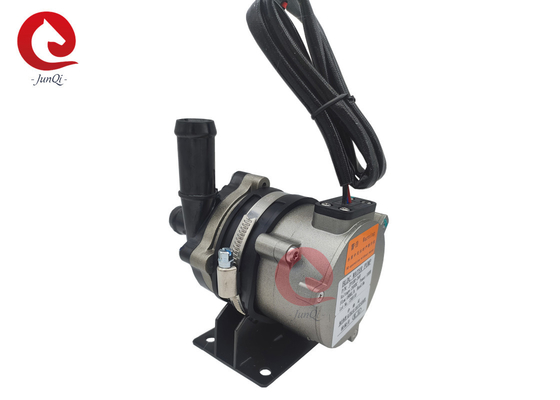

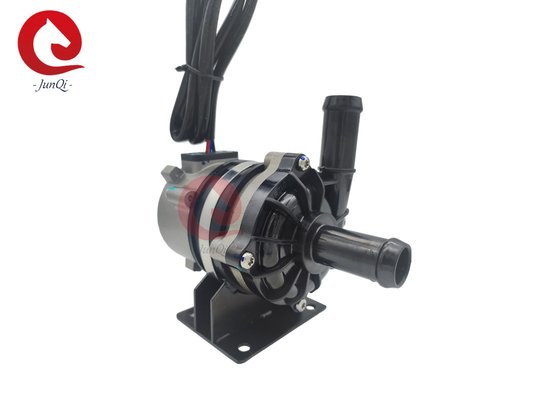

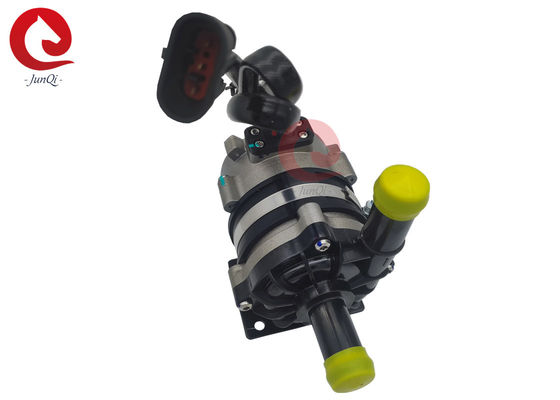

12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus

12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus

12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus
12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus
12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: IS9001, TS16949,CE
Model Number: JP100-12V
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotialbe
Packaging Details: suitable for export
Delivery Time: base on order,
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Model: JP100-12 Material: Aluminium Alloy
Voltage: 12VDC Power: 100W
Rated Flow Rate: 1800L/H Max Head: 10M
Application: Hybrid Bus, Electric Vehicles Theory: Centrifugal Pump
Usage: Coolant
High Light:

PWM Electric Car Coolant Pump

,

100W Electric Car Coolant Pump

,

EV Bus Brushless Water Pump

JUNQI 12V 100W PWM Control Electric Car Coolant Pump New Energy Water PUmp Brushless Water Pump For EV Bus







♣ Features

♦ Single stage centrifugal pump

♦ Magnetic force transmission (shield pump structure)

♦ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.

♦ With wide range operating temperature

♦ PWM signal speed controlling (optional PG signal feedback )

♦ With constant flow controlling

♦ Reverse polarity protection

♦ Dry running protection

♦ Over Voltage, over current protection

♦ Overload, over temperature protection

♦ Automobile grade electronic components



♣ Technical description (parts in contact with the liquid)

Pump head housing: PPS+GF

Impeller: PPS+GF

Shield cavity: PPS+GF

Shaft bearing: Carbon resin composite materials+ zirconia ceramic washer

Shaft: hollow stainless steel shaft

Rotor: nylon injection packed

Seal ring: EPDM



♣ Driving device (Including motor)

Driving electromagnet: magnet+nylon injection packed

Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor

Motor wire frame: PPA+GF (white)

Pump housing: aluminum alloy

Bracket: SUS 304 stainless steel

Bracket hoop: US 304 stainless steel+ Damping rubber ring

Waterproof based on IP68 rating (en60529)

Connector:3 Pins or 4Pins (with PG signal feedback)

Nozzle diameter:22.2mm (inner diameter:20mm)



♣Basic information




Item Value
Product Name Electric Water Pump
Part No. JP100-12V
Ambient Temperature -40~80℃
Medium(antifreeze) Temperature ≤90℃
Rated Voltage 12VDC
Working voltage range DC9~16V
Rated Currrent ≤9.2A
Rated Flow Rate 1800L/h
Rated Head 8m
Rated Power 100W
Noise ≤45dB
Protection Level IP68
Service Life more than 20000hours
Function PWM Speed control / fauilt feedback (customized)





♣ Mounting instruction:

12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus 0







♣ Temperature parameter

Medium liquid temperature: -40℃ to +120℃ (-40°F to + 248°F)

Working ambient temperature: -40℃ to +100℃ (-40°F to +212°F)

Storage temperature: -40℃ to +70℃ (-40°F to +158°F)

(up to 100 ℃, but it will shorten the service life)



♣ System pressure

-0.2 to 2.5 bar ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.



♣ Connector model and Pins



12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus 1



♣ Attentions

1. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.

2. The installation position of the water pump should as much as possible close to the low water level, to extend the service life of the pump.

3. In order to reduce water resistance, should as much as possible to reduce the number elbow in piping in the installation, ensure no any elbow within 20 cm from the pump.

4. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life

5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump.



♣ Curve chart

12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus 2



♣PWM Control Description:

12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus 3



♣Overall dimensions

12V 100W PWM Control Electric Car Coolant Pump New Energy Brushless For EV Bus 4





♣Applications:



Apply to HEV(Hybrid Electrical Vehicle),EV(Electric Vehicles), trains, ships and other heating circulation and cooling circulation system.
