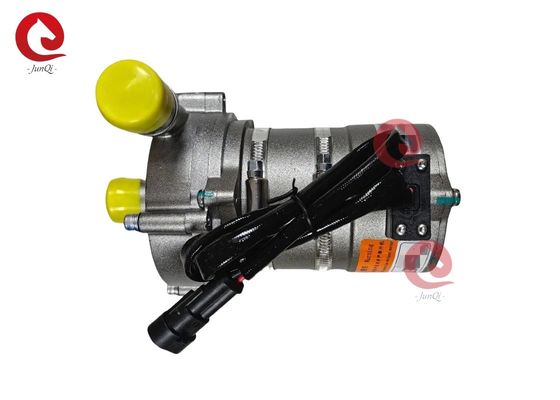

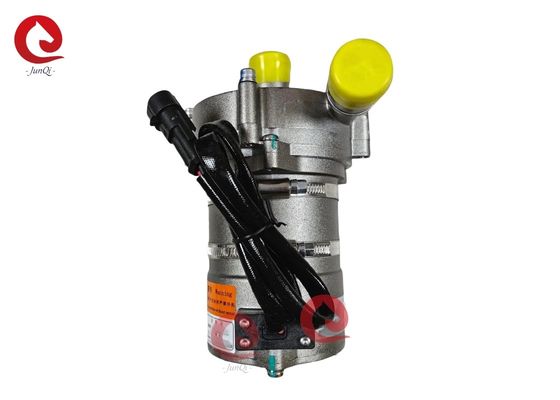

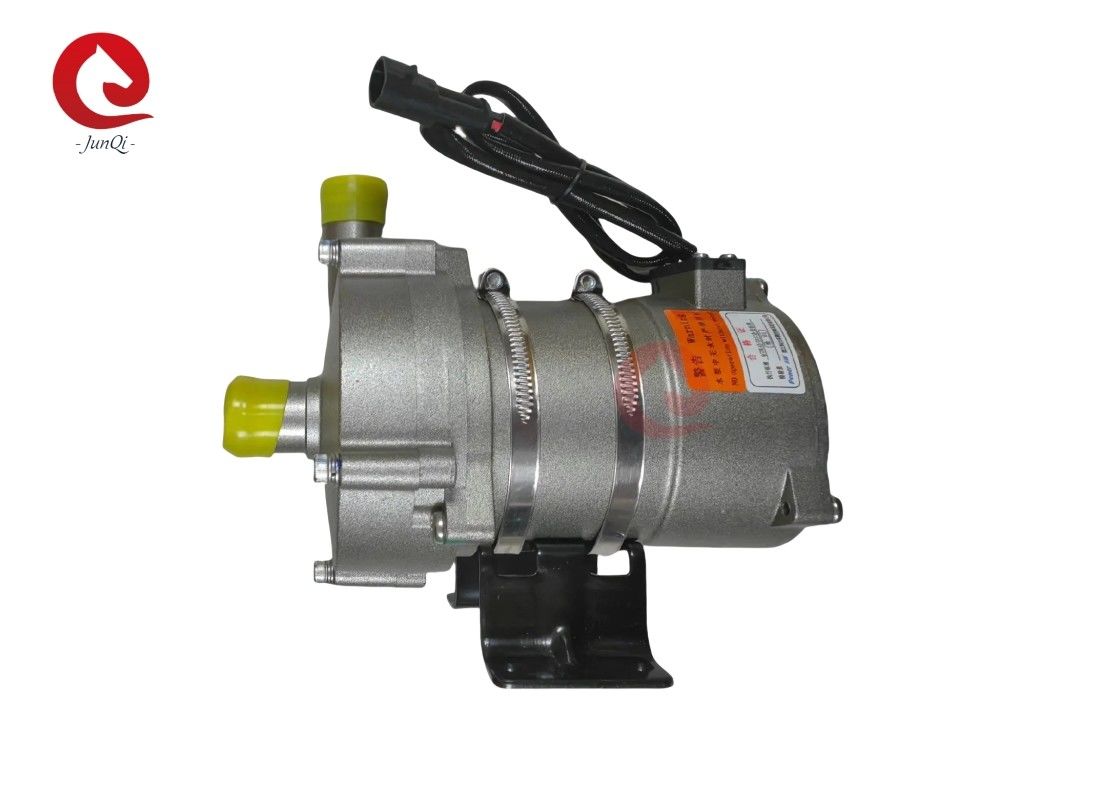

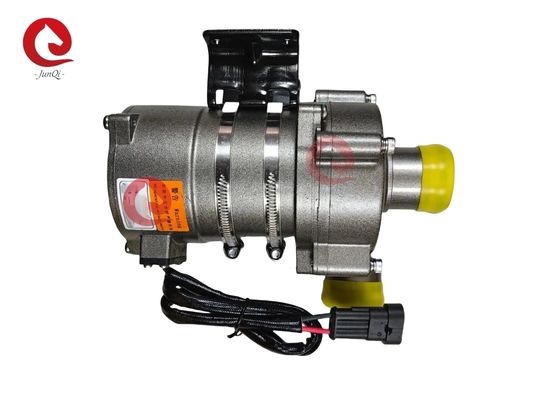

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: TS16949,ISO9001,CE
Model Number: JP200-3X Series
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs ( sample available)
Price: negotiation
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T,,Western Union,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Description: Electric Vehicle Coolant Water Pump Model: JP200-3X
Rated Voltage: 24VDC Power: 240W
Rated Flow: 2000L/h Rated Head: 18m
Highlight:

24V Electronic Water Pump

,

240W Electronic Water Pump

,

18m Water Pump Electronic

24V 240W High Lift 18m JP200-3X Eelectronic Water Pump For Cocal Trucks and MuCK Truck Engine Cooling





Technical Parameter:



Model JP200-3X
Rated Voltage 24VDC
Rated Current 10A
Operating Voltage DC 18~32V
Rated Power 240W
Workign environment -40℃~105℃
Working Medium 50% glcol aqueous solution
Protection level IP68
Working Noise ≤61dB ( Distance 1m)
Working life ≥20000h
Weight 2.45KG
Protection function Blocked rotation, reverse connection, over voltage, low voltage, over current, over temperature, idling.



Pumps Features:



1. Built-in a variety of protection functions and power reverse protection function;

2. Troubleshooting: When there is a fult, the fault feedback line is low, and when there is no fault, the fault feedback line is high( the fault level is based on customer requirements.)



Working Performance Curve:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling 0





Application:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling 1







Work shop:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling 2

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling 3



Dimensions(mm):

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling 4



Certificate: Applications:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling 5

For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
