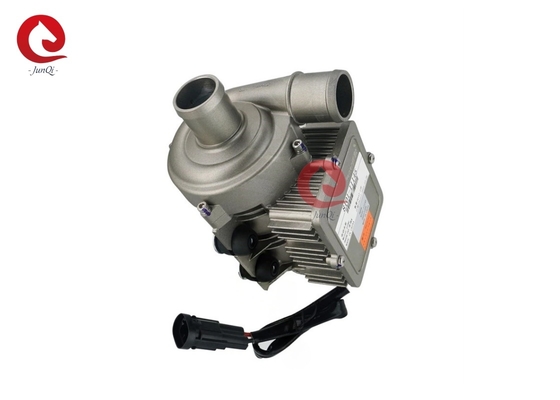

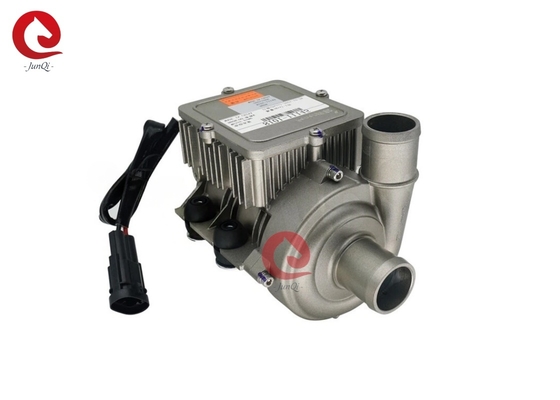

JUNQI DC24V 920W 6500L/h 23m lift Electric Water Pump For Vehicle Thermal Management System
Technical Parameters:
Model: JP1000-24V-920W
Rated Voltage: 24VDC
Working voltage range: 18~32VDC
Protection level: IP68
Ambient temperature: -40~85℃
Medium: 50% glycol aquesous lolution
Rated Current: 38.3A
Noise: ≤70dB
Rated Flow rate: 6500L/h H=23.5m
Rated Power: 920W
Working life: ≥20000h
Weight: 4.2kg
Features:
♦ Highly integrated shield pump,hihg reliability, mainteanance-free, soft satart protection, low starting current;
♦ High efficiency: hydraulic+motor+controller;
♦ With anti-reverse connection, over current, over voltage, under voltage, over temperature, blocking rotot protection;
♦ Full range adjustable speed ( support fixed speed customization);
♦ BLDC-PMSM+Non-inductive FOC, lightweight, low noise;
♦ Industry-leading ECU gauge devices, a variety of communication methods of ECU platform design;
♦ To meet the needs of intelligent vehicle connection: CAN communication, non-sensing temperature measurement.
Working performance curve:
Dimensions(mm):
Workshop pictures:
Certificates:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet it.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
