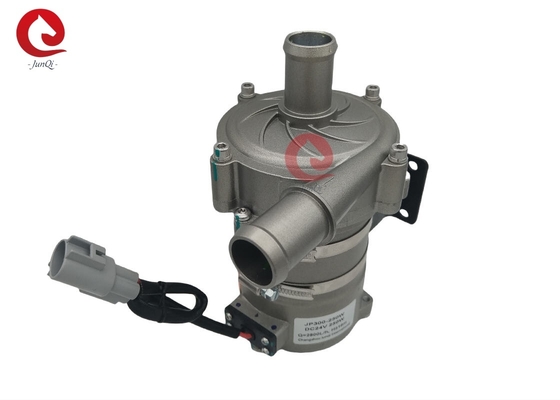

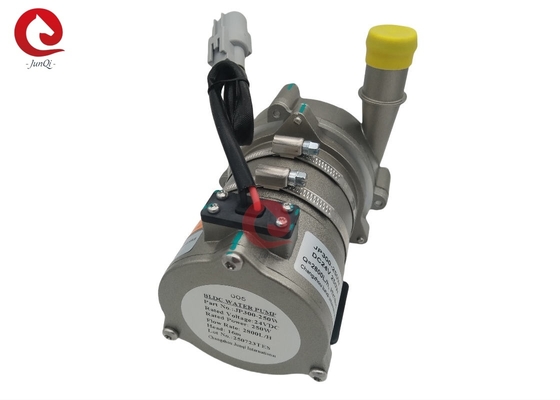

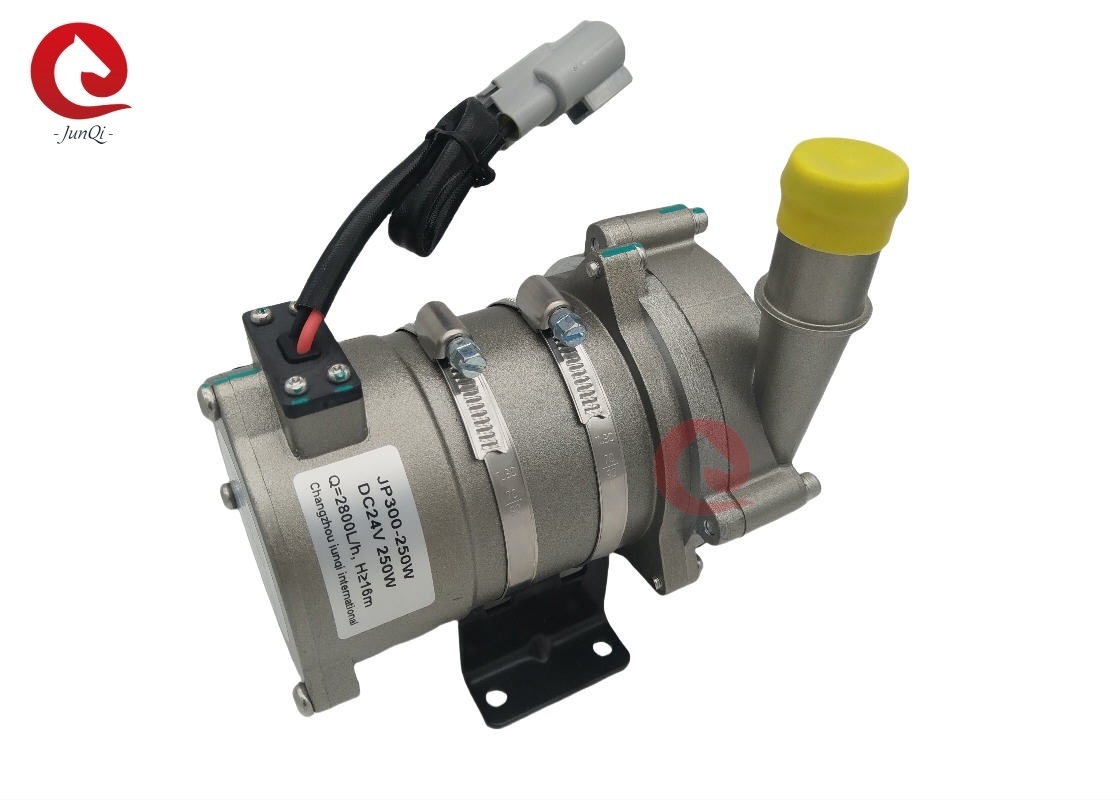

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: TS16949,ISO9001,CE
Model Number: JP300-250W
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs ( sample available)
Price: negotiation
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T,,Paypal
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Description: Electric Vehicle Coolant Water Pump Model: JP300-250W
Rated Voltage: 24VDC Power: 250W
Rated Flow: 2800L/h Rated Head: 16m

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head



Pumps Features:


1. Built-in a variety of protection functions and power reverse protection function;

2. Troubleshooting: When there is a fult, the fault feedback line is low, and when there is no fault, the fault feedback line is high( the fault level is based on customer requirements.)


Technical Parameter:


Model JP300-250W
Rated Voltage 24VDC
Rated Current 10.5A
Operating Voltage DC 18~32V
Rated Power 240W
Workign environment -40℃~85℃
Working Medium 50% glcol aqueous solution
Protection level IP68
Working Noise ≤60dB ( Distance 1m)
Working life ≥20000h
Weight 2.45KG
Protection function Blocked rotation, reverse connection, over voltage, low voltage, over current, over temperature, idling.



Working Performance Curve:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head 0



Application:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head 1




Work shop:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head 2

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head 3


Dimensions(mm):

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head 4


Certificate:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head 5

For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
