JUNQI JP2200RS-48V 2KW Commerical/ Industrial Energy Storage System Coolant Loop Circulating Pump
Description:
The electronic water pump mainly consists of three parts: the fluid nuit, the motor unit and the electronic unit.
Compared with traditional mechanical water pumps, electronic water pumps feature high control accuracy
and higher efficiency. Theay are mainly applied in the following scenarios:
1. Charging/battery swap stations rectifier main units temperature control cooling system;
2. Medium/small photovoltaic, lithium battery energy storage cooling system;
3. ICT computing and communications industry severs cooling system;
4. New energy vehicle cooling system;
5. other need water pump fields.
Pump Basic Parameters:
1.Rated voltage:48VDC
2. Working voltage range: 48V±20%DC
3. Rated current: 45.8A±5%
4. Max.Currrent(at rated voltage working):46.0A±5%
5. Rated Power (effective value):2200W±10%
6. Max.Power-input:2210W
7. Medium: 50%Ethylene Glycol Aqueous Sloution
8. Recommend operatiing ambient temperature:-40℃-85℃
9. Recommend operating temperature of antifreeze coolant:-40℃-85℃
10. Rated flow rate:12000L/h
11. Rated Head: 30m
12. Pump operationg flow point: 0.6Q-1.1Q ( Q:rated flow point)
13. Noise:≤75dB
14. Housing material: ADC12
15. Volute material: 304 stainless steel
16. Impeller materials: PPS+40%GF
17: Weight: 6.4 kg
Dimensions:
Application:
Commerical Vehicle Battery Energy Storage Battery Vehicle Thermal Management Data Center
Thermal Management Liquid Thermal Management Liquid System
Cooling Systme Cooling System

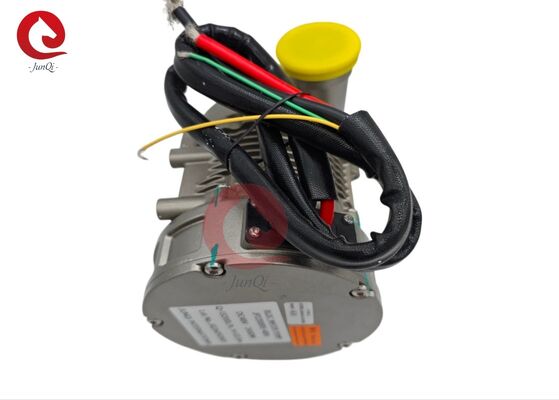

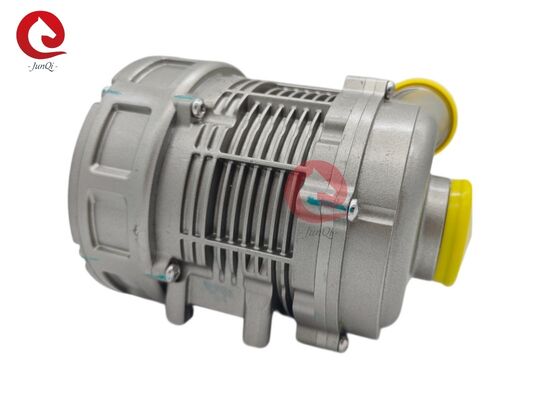

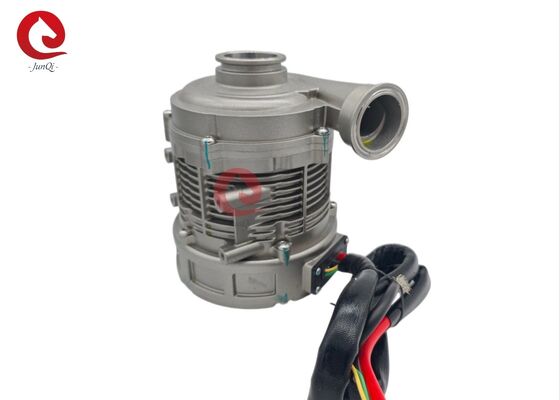

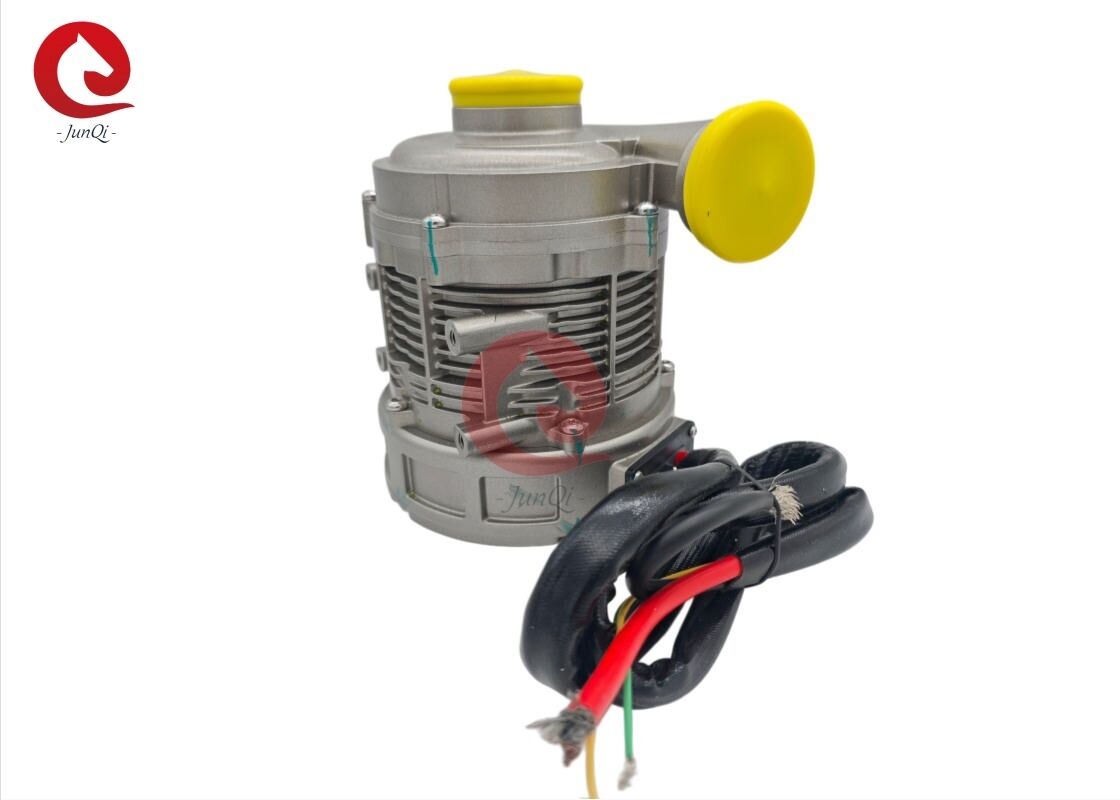

Pump Picture:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet customized .
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
