48VDC 12000L/h 33.5m Lift Head Electric Coolant Water Pump, Enery Storage Cooling Circulating Water Pump

Pump Basic Parameters:

1.Rated voltage:48VDC

2. Working voltage range: 48V±20%DC

3. Rated current: 45.8A±5%

4. Max.Currrent(at rated voltage working):46.0A±5%

5. Rated Power (effective value):2200W±10%

6. Max.Power-input:2210W

7. Medium: 50%Ethylene Glycol Aqueous Sloution

8. Recommend operatiing ambient temperature:-40℃-85℃

9. Recommend operating temperature of antifreeze coolant:-40℃-85℃

10. Rated flow rate:12000L/h

11. Rated Head: 30m

12. Pump operationg flow point: 0.6Q-1.1Q ( Q:rated flow point)

13. Noise:≤75dB

14. Housing material: ADC12

15. Volute material: 304 stainless steel

16. Impeller materials: PPS+40%GF

17: Weight: 6.4 kg

Working Performance curve:

Dimensions:

Application:

 Commerical Vehicle Battery       Energy Storage Battery          Vehicle Thermal Management               Data Center

Thermal Management Liquid    Thermal Management Liquid     System

Cooling Systme                         Cooling System

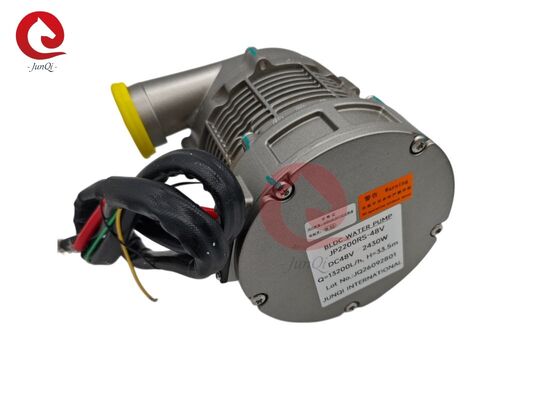

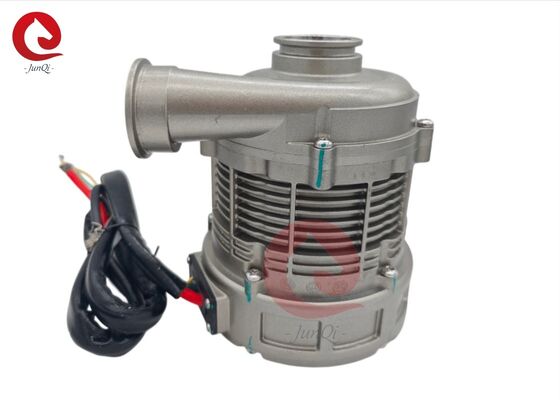

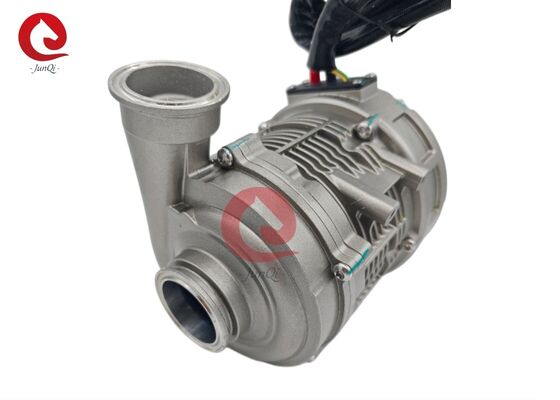

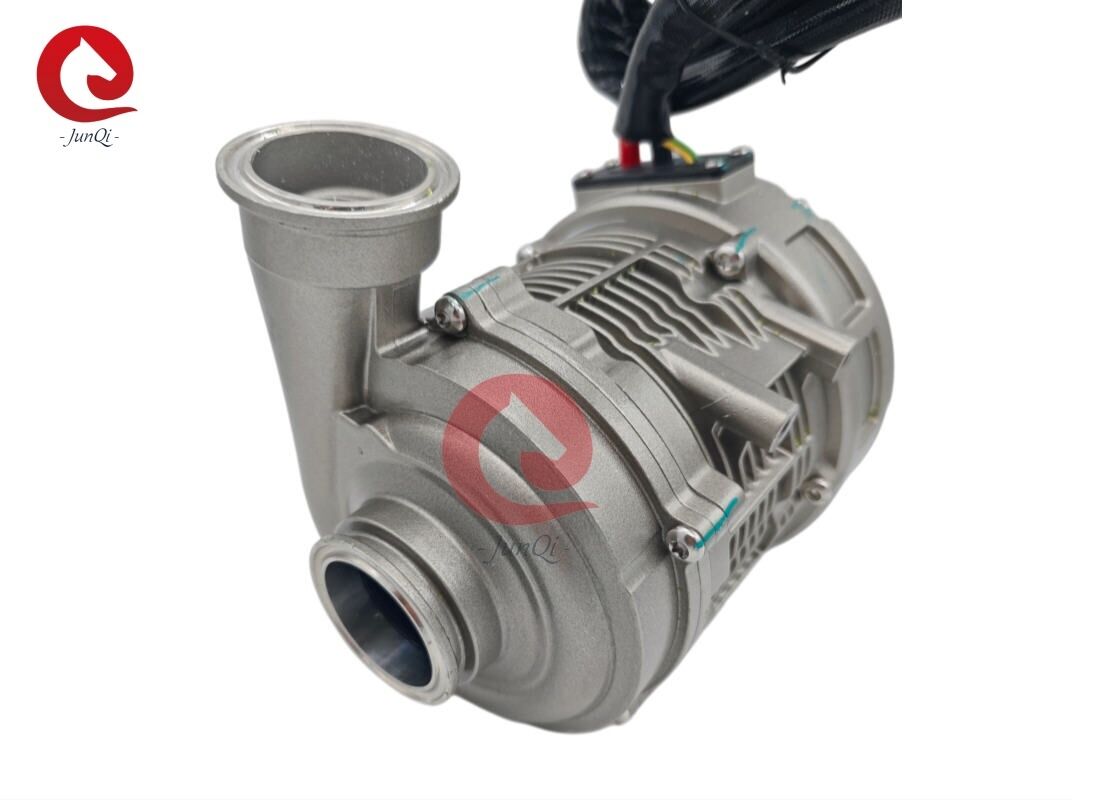

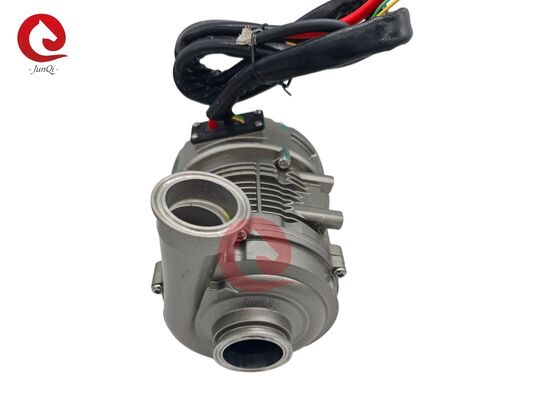

Pump Picture:

FAQ:

Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?
A:100% product quality protection.
    100% product on time shipment protection.
    100% payment protection for your covered amount.

Q: What’s Moq?
A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?
A:Yes,We Accpet customized .

Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
    Generally, this problem is rare.

Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.

For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
