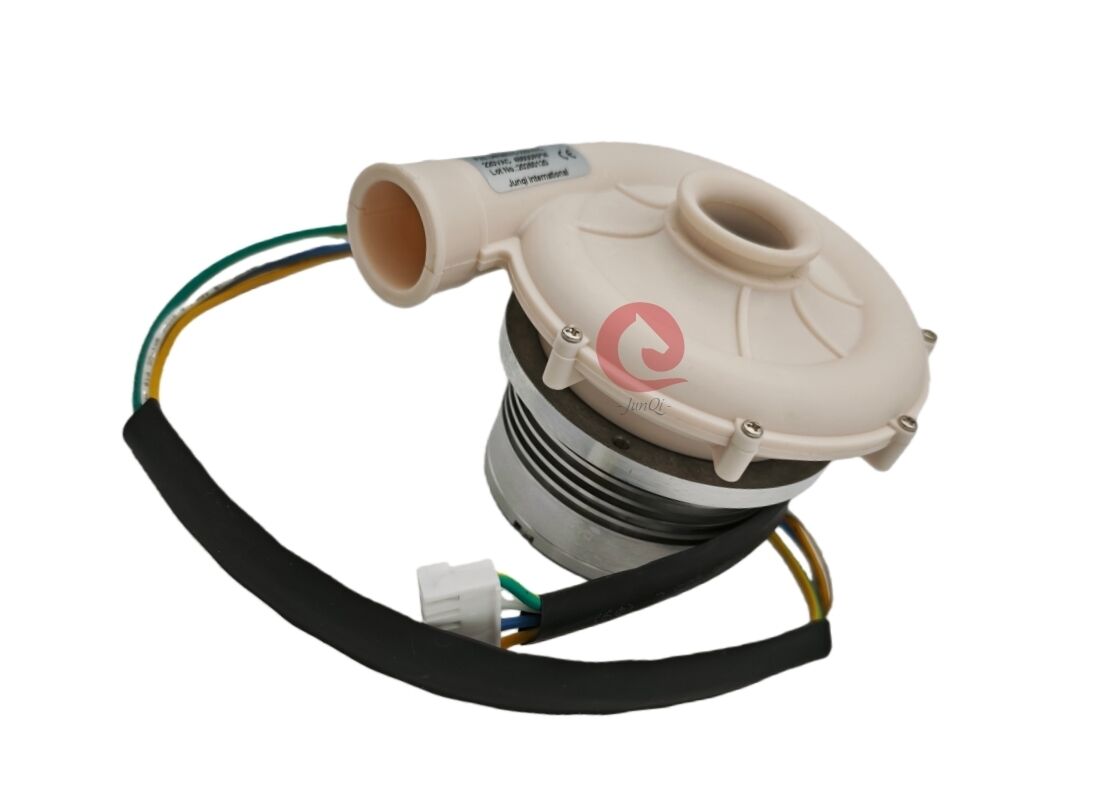

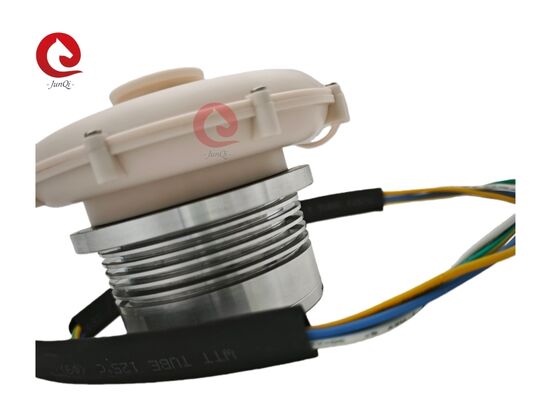

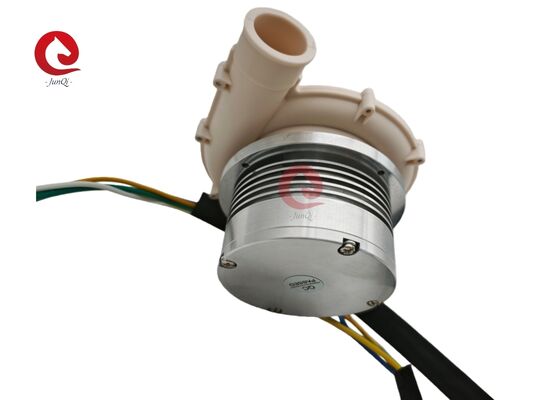

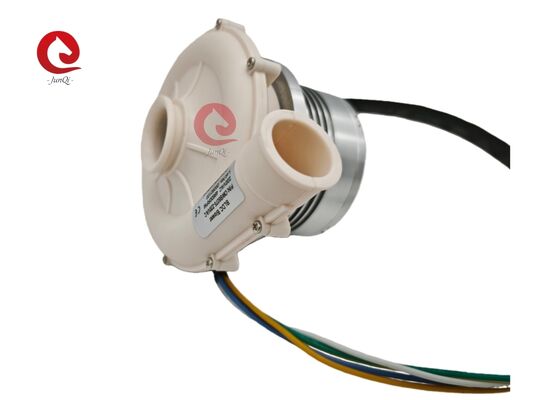

Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation

Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation

  • Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation
  • Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation
  • Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation
  • Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation
Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS
Model Number: OWB9275
Payment & Shipping Terms:
Minimum Order Quantity: 5set
Price: Negotiable
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C,T/T,PAYPAL
Supply Ability: 1000PCS/Month
Contact Now
Detailed Product Description
Product Name: BLDC Blower Fan Model: OWB9275-24V/48V/220VAC
Power: 418~528W Voltage: DC24V/48V/220VAC
Air Volume: 1200~1500LPM Size: 93*93*80mm
Wind Speed: 52000~54000rpm Pole Pairs Of Magnets: 2P=1
Noise: 45dB (1m-kpa)
Highlight:

37mm Mini DC Spur Gear Motor

,

12v DC Spur Gear Motor

,

DC Spur Gear Motor 24v

Junqi OWB9275 Series Brushless DC Blower Fan


This OWB9275 Series BLDC Blower can be mainly used in various types of ventilators(clinical and domestic), It has also worked closely with manufacturers in the virus elimination car, cell fuel stack, environmental samplers, and express air column filling industries.


Blower Main Technical Parameter:

Model Max.Flow (L/min) Max.Pressure (kPa) Suction Pressure (kPa) Speed (rpm) Power (W) Recommend Driver
OWB9275-24V 1500 25 -19 52000 528 BLD24600W
OWB9275-48V 1350 23 -17 51000 510 BLD48600W
OWB9275-220VAC 1337 21 -15 50800 418 BLC220600W


OWB9275 is one of the high-air volume blowers of Junqi International Company. The air volume at all 3 rated voltages is more than 1300l/min. It can be quickly started and stopped, which greatly increases the efficiency of use.


Dimensions(mm):

Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation 0

Performance Curve:

Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation 1

Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation 2


Applications:

Junqi OWB9275 Series Brushless DC Blower Fan for Fuel Cell/ Rapid Inflation 3

DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.
