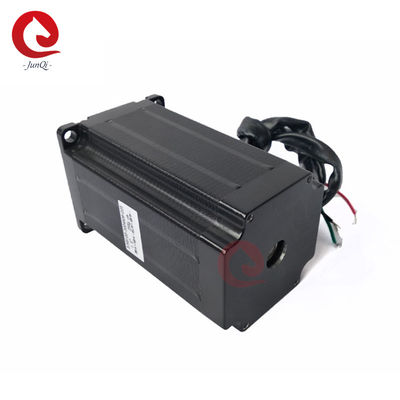

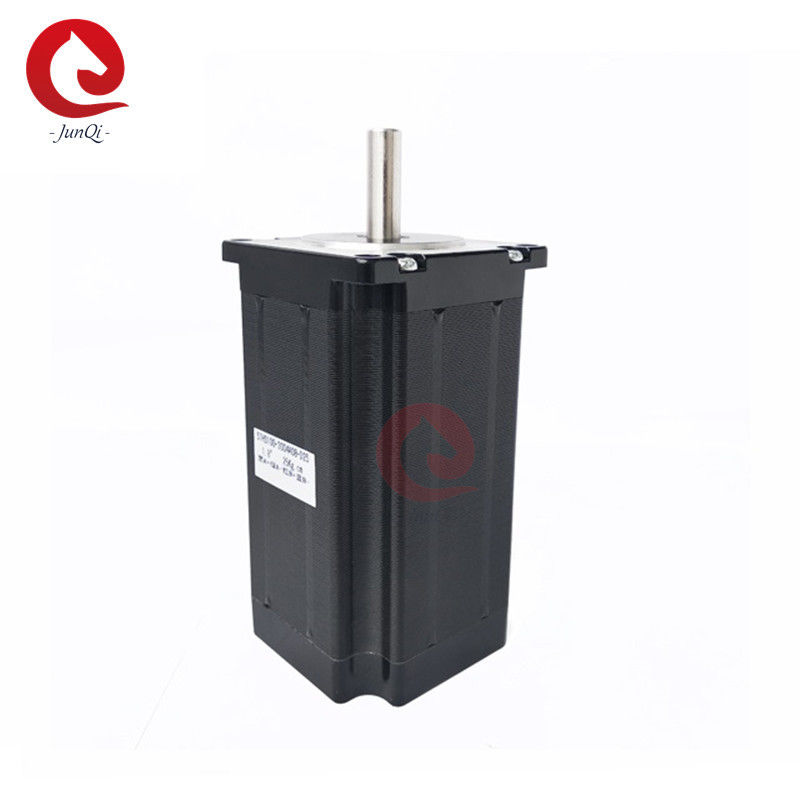

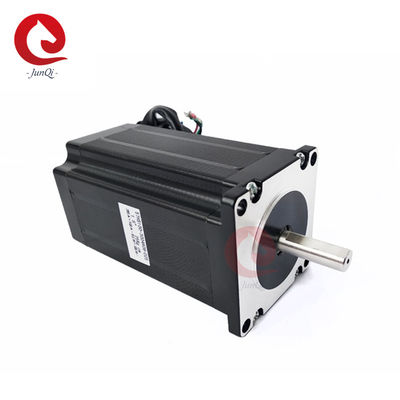

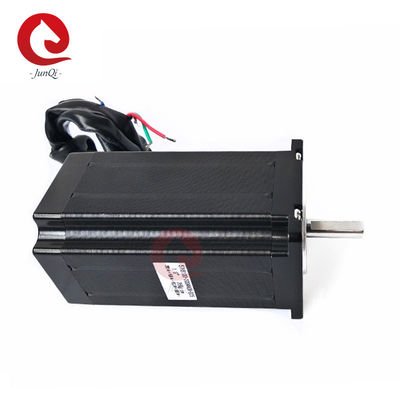

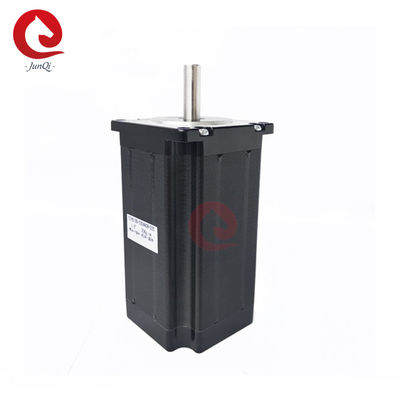

JQ57HS100-3004 Nema23 Electric Stepper Motor, 57mm 1.8 Degree 2 Phase 2.5N.m Torque Stepping motor For CNC Parts
Quick Details:
| Item |
Specifications |
| Step Angle Accuracy |
±5% |
| Resistance Accuracy |
±10% |
| Inductance Accuracy |
±20% |
| Temperature Rise |
80℃ Max |
| Ambient Temperature |
-20℃～+50℃ |
| Dielectric Strength |
100MΩMin.500VDC |
| Dielectric Strength |
500VAC for one minute |
| Shaft Radial Play |
0.02Max.(450g-load) |
| Shaft Axial Play |
0.08Max.(450g-load) |
Mechanical Size and Electric Connection:
Electricl Specification:
| Model No |
Step
Angle
(°) |
Rated
Voltage
(V) |
Rated
Current
(A) |
Phase
Resistance
(Ω) |
Phase
Inductance
(mH) |
Torque
(Kg.cm) |
Detent
Torque
(g.cm Max) |
Rotor
Inertia
(g.cm²) |
Motor
Length
(mm) |
Leads No. |
Motor
Weight
(Kg) |
| JQ57HS41-2004 |
1.8 |
2 |
2 |
1 |
1.2 |
3.2 |
210 |
120 |
41 |
4 |
0.45 |
| JQ57HS41-1004 |
1.8 |
5.4 |
1 |
5.4 |
9.5 |
5.5 |
210 |
120 |
41 |
4 |
0.45 |
| JQ57HS41-2004 |
1.8 |
2 |
2 |
1 |
2.2 |
5 |
210 |
120 |
41 |
4 |
0.45 |
| JQ57HS51-1504 |
1.8 |
2.4 |
1.5 |
1.6 |
3.8 |
8.2 |
360 |
275 |
51 |
4 |
0.65 |
| JQ57HS51-2004 |
1.8 |
2.4 |
2 |
1.2 |
3 |
9 |
360 |
275 |
51 |
4 |
0.65 |
| JQ57HS51-2006 |
1.8 |
2 |
2 |
1 |
1.6 |
7 |
360 |
275 |
51 |
6 |
0.65 |
| JQ57HS56-1504 |
1.8 |
5.7 |
1.5 |
3.8 |
12 |
13.5 |
400 |
300 |
56 |
4 |
0.7 |
| JQ57HS56-3004 |
1.8 |
2.85 |
3 |
0.95 |
2.8 |
12 |
400 |
300 |
56 |
4 |
0.7 |
| JQ57HS56-2006 |
1.8 |
3.6 |
2 |
1.8 |
2.8 |
9 |
400 |
300 |
56 |
6 |
0.7 |
| JQ57HS64-3004 |
1.8 |
3.9 |
3 |
1.3 |
2.2 |
15 |
500 |
380 |
64 |
4 |
0.8 |
| JQ57HS76-2004 |
1.8 |
8.6 |
2 |
4.3 |
16.2 |
24 |
680 |
480 |
76 |
4 |
1 |
| JQ57HS76-3004 |
1.8 |
2.7 |
3 |
0.9 |
3.5 |
20 |
680 |
480 |
76 |
4 |
1 |
| JQ57HS76-4004 |
1.8 |
2.4 |
4 |
0.6 |
2.2 |
20 |
680 |
480 |
76 |
4 |
1 |
| JQ57HS82-3004 |
1.8 |
4.2 |
3 |
1.4 |
5 |
22 |
700 |
510 |
82 |
4 |
1.2 |
| JQ57HS82-4004 |
1.8 |
3 |
4 |
0.75 |
3.5 |
20 |
700 |
510 |
82 |
4 |
1.2 |
| JQ57HS100-3004 |
1.8 |
3 |
3 |
1 |
4.5 |
25 |
1000 |
680 |
100 |
4 |
1.4 |
| JQ57HS112-3004 |
1.8 |
3.9 |
3 |
1.3 |
6.5 |
30 |
1200 |
800 |
112 |
4 |
1.7 |
| JQ57HS112-3504 |
1.8 |
2.45 |
3.5 |
0.7 |
3 |
28 |
1200 |
800 |
112 |
4 |
1.7 |
| Above only for representative products, products of special request can be made according to the customer request. |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
Motor details:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
Our motor products contain range:
