Place of Origin: | Changzhou,China |
Brand Name: | Junqi |
Certification: | CE, RoHs, REACH |
Model Number: | JQ1303P282-5003A |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | CTN |
Delivery Time: | 4weeks after get payment (base on order), |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000set/month |

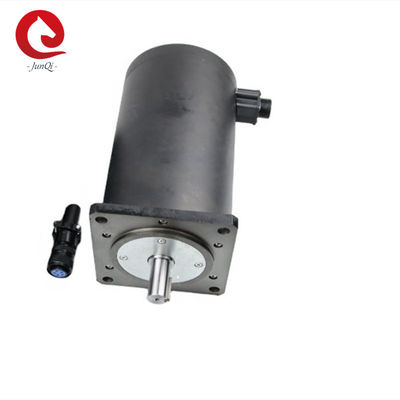

Type: | STEPPER MOTOR | Model Number: | JQ1303P282-5003A |
---|---|---|---|
Frame Size: | 130mm | Rated Torque: | 50N.m |
Number Of Phase: | 3 Phase | Body Length: | 282mm |
Usage: | Industry Automation | Shape: | Square |
Step Angle: | 1.2 Degree | Rated Current: | 5A |
Weight: | 22kg | ||
High Light: | 3Phase Stepper Motor,Automation Equipment 3Phase Stepper Motor,NEMA52 Hybrid Stepper Motor 130mm |
Stepper motor technology can be a good choice whenever controlled movement is required. They can be used to an advantage in applications where you need to control rotation angle, speed, position and synchronism. Delta Line portfolio offers wide options of micro stepper motors technology such as Hybrid, Flat, Hollow shaft or IP65 stepper motors, in sizes from 15 to 130mm.
Quick Details:
Item | Specifications |
Step Angle Accuracy | ±5% |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Insulation Resistance | 500VDC 100MΩ Min |
Temperature Rise | 80℃ Max(rated current) |
Ambient Temperature | -20℃~+50℃ |
Dielectric Strength | 1000VAC for one minute |
Shaft Radial Play | 0.025Max.(450g-load) |
Shaft Axial Play | 0.3Max.(450g-load) |
Max Axial Force | 60 N |
Max Radial Force | 220N(20mm from the flange) |
Insulation Class | B |
Electricl Specification:
Model No | Step Angle (°) |
Rated Voltage (V) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (N.m) |
Rotor Inertia (Kg.cm²) |
Motor Length (mm) |
Leads No. | Motor Weight (Kg) |
JQ1303P170-503A | 1.2 | 220 | 5.0 | 0.95 | 9.5 | 23 | 25 | 170 | Seven Pins Socket | 13 |
JQ1303P199-5003A | 1.2 | 220 | 5.0 | 1.1 | 11.3 | 30 | 30 | 199 | Seven Pins Socket | 16 |
JQ1303P226-5003A | 1.2 | 220 | 5.0 | 1.3 | 13.1 | 36 | 35 | 226 | Seven Pins Socket | 18 |
JQ1303P282-5003A | 5.0 | 1.7 | 18 | 50 | 45.5 | 282 | Seven Pins Socket | 22 | ||
Above only for representative products, products of special request can be made according to the customer request. |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
Mechanical Size and Electric Connection:
Motor details:
Motor Application Fields:
Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift
Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.
Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
