To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | RoHS,ISO9001, CE |
| Model Number: | JQ86STH80-4208A |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD35-USD50/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 10000pcs per month |
| Name: | Stepper Motor | Model No.: | JQ86STH80-4208A |
|---|---|---|---|
| Step Angle: | 1.8° | Rated Current: | 4.2A |
| Holding Torque: | 3.2N.m | No.of Lead Wires: | 8 |
| Length: | 80mm | Shape: | Square |
| Warranty: | 12 Months | ||
| High Light: | nema 34 hybrid stepper motor,2 Phase nema 34 hybrid stepper motor,CNC nema 34 hybrid stepper motor |
||

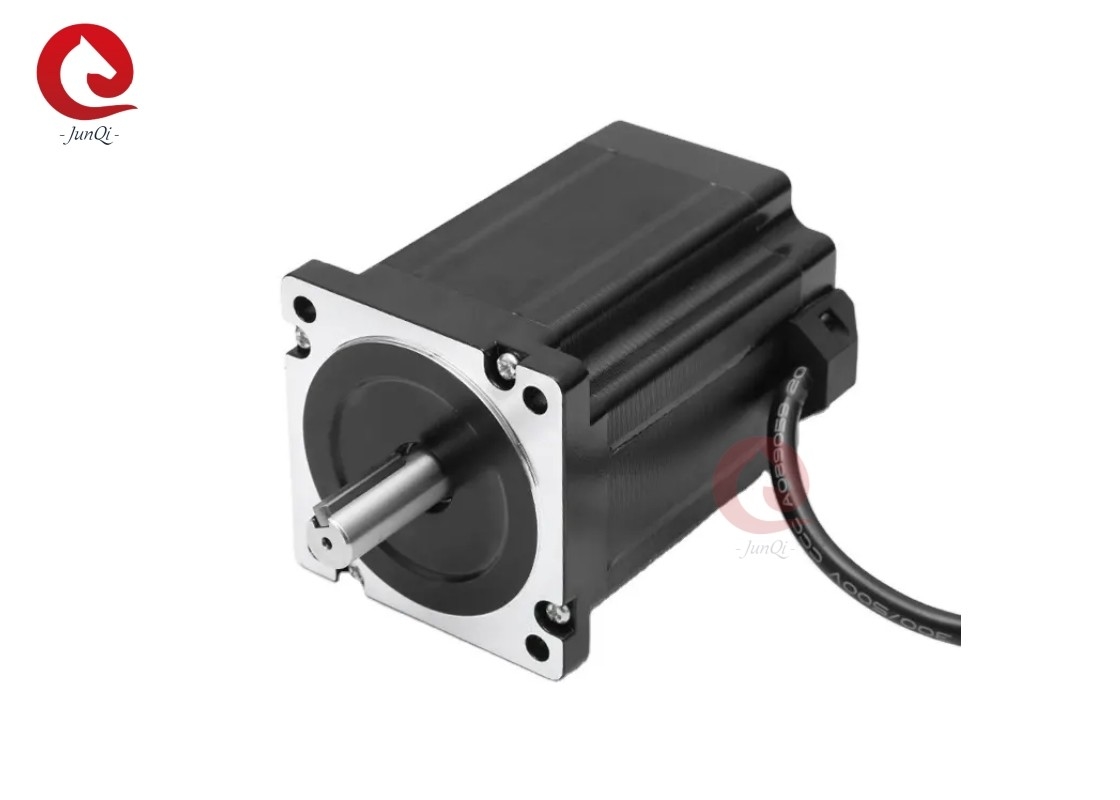

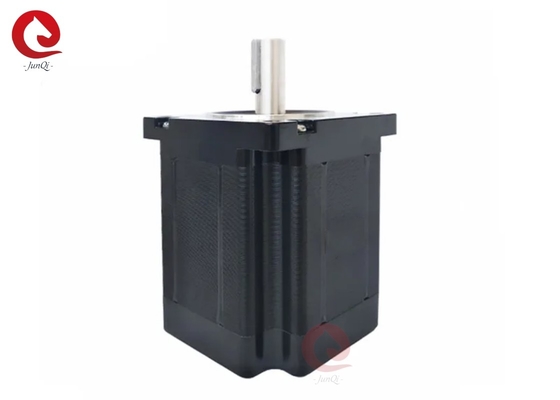

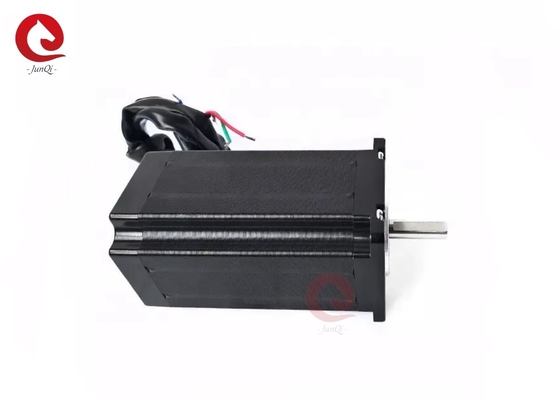

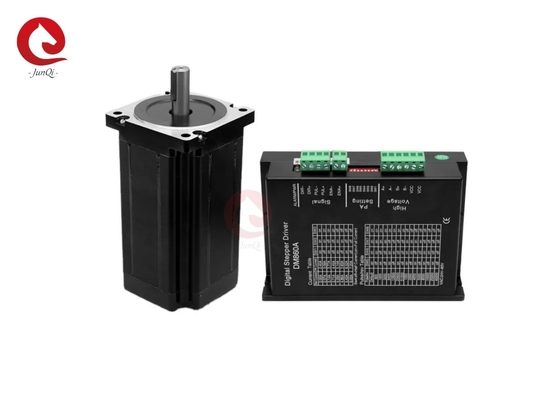

JQ86STH80-4205A High Torque Hybrid Stepper Motor
Dimensions(mm):
Electrical Specifications:
| Model |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
Detent Toque |
#Lead wires |
Rotor Inertia |
Length | Weight | |
| Single Shaft | A | Ω | mH | N.m | N.m | g-cm² | mm | kg | ||
| JQ86STH65-2808A | unipolar | 2.8 | 1.3 | 3.9 | 2.2 | 0.08 | 8 | 1000 | 65 | 1.7 |
| series | 2 | 2.6 | 15.6 | 3.5 | ||||||
| parallel | 4 | 0.65 | 3.9 | 3.5 | ||||||
| JQ86STH80-4208A | unipolar | 4.2 | 0.65 | 3 | 3.2 | 0.12 | 8 | 1400 | 80 | 2.3 |
| series | 3 | 1.3 | 12 | 4.5 | ||||||
| parallel | 6 | 0.325 | 3 | 4.5 | ||||||
| JQ86STH118-4208A | unipolar | 4.2 | 0.99 | 6 | 6 | 0.24 | 8 | 2700 | 118 | 3.8 |
| series | 3 | 1.98 | 24 | 8.5 | ||||||
| parallel | 6 | 0.495 | 6 | 8.5 | ||||||
| JQ86STH156-4208A | unipolar | 4.2 | 1.25 | 8 | 8.4 | 0.36 | 8 | 4000 | 156 | 5.3 |
| series | 3 | 2.5 | 32 | 12 | ||||||
| parallel | 6 | 0.63 | 8 | 12 |
The motor can be designed and manufactured with customized request.
General Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 220N@20mm from the flange |
| Max.Axial Force | 60N |
| Dielectric Strength | 1200VAC/1s |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Our motor products contain range:
Motor Applications:
Dispensing machine, hot stamping machine, manipulator, robot, repair table, labeling machine, laser cutting machine, SMT equipment, medical equipment, Printing machine, textile machinery, packaging machinery, CNC machine toold, robots and other automation control field.
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
