To Create Value For Customers. Integrity and Win-Win.

|
| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | ISO9001, RoHs,CE |
| Model Number: | JQ86STH156-4208A |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD80-USD100/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 1000pcs per month |

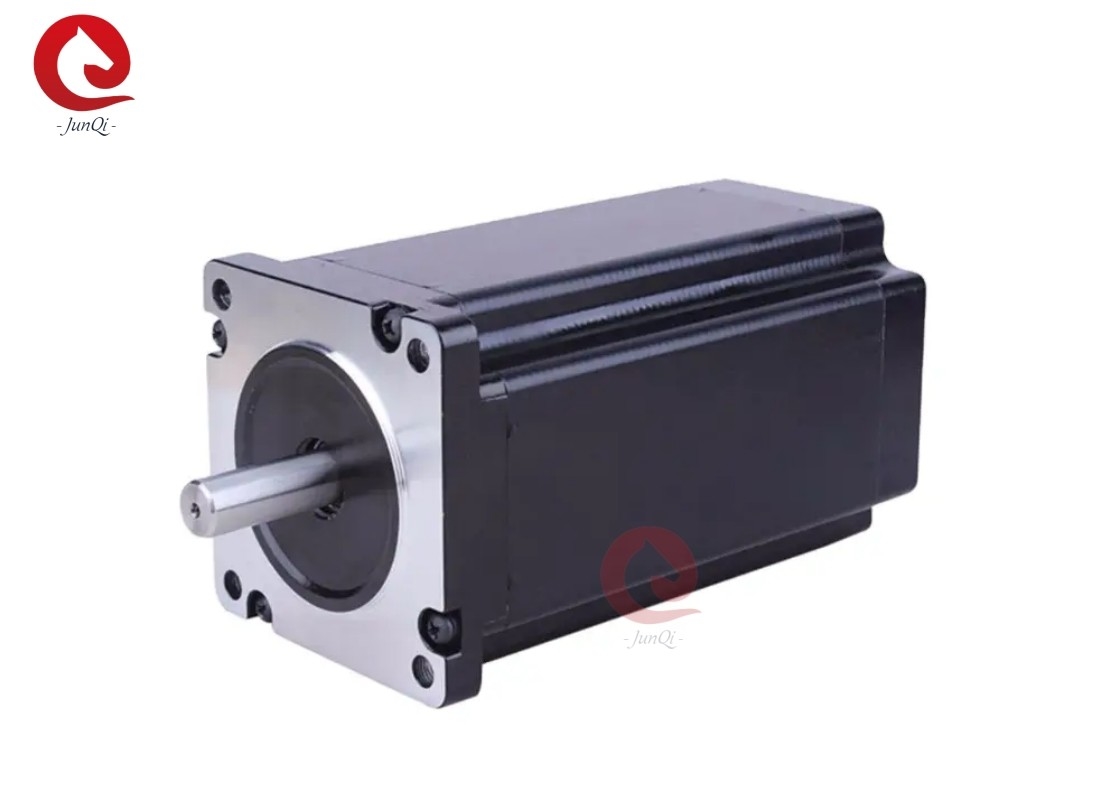

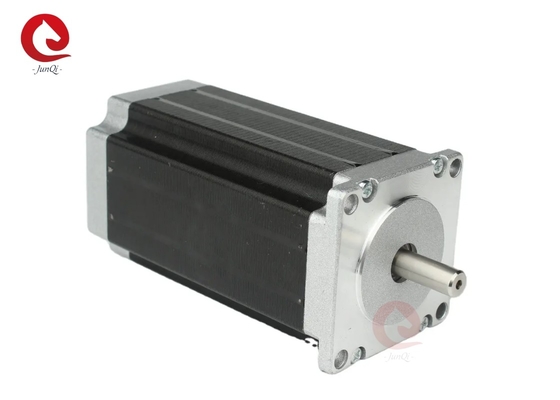

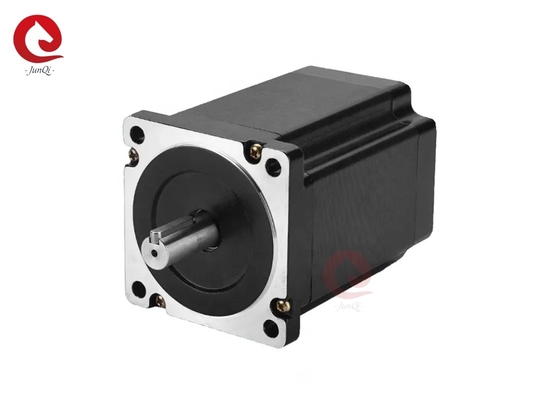

| Name: | Stepper Motor | Model No.: | JQ86STH156-4208A |
|---|---|---|---|
| Type: | Hybrid Step Motor | Current: | 3A |
| Holding Torque: | 12N.m | Length: | 156mm |
| Weight: | 5.3kg | Shape: | Square |
| Warranty: | 12 Months | ||
| High Light: | 2phase nema 34 hybrid stepper motor,nema34 2 phase hybrid stepper motor,CNC 2 phase hybrid stepper motor |
||
Stepper motor technology can be a good choice whenever controlled movement is required. They can be used to an advantage in applications where you need to control rotation angle, speed, position and synchronism.JUNQI INTERNATIONAL offers wide options of high quality micro stepper motors technology such as Hybrid, Flat, Hollow shaft or IP65 stepper motors, in sizes from 15 to 110mm. Our stepper motors offer high torque density and high volume capabilities and all of our models are customizable to answer any of your specific requirements.
General Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 220N@20mm from the flange |
| Max.Axial Force | 60N |
| Dielectric Strength | 1200VAC/1s |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electrical Parameters:
| Model |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
Detent Toque |
#Lead wires |
Rotor Inertia |
Length | Weight | |
| Single Shaft | A | Ω | mH | N.m | N.m | g-cm² | mm | kg | ||
| JQ86STH65-2808A | unipolar | 2.8 | 1.3 | 3.9 | 2.2 | 0.08 | 8 | 1000 | 65 | 1.7 |
| series | 2 | 2.6 | 15.6 | 3.5 | ||||||
| parallel | 4 | 0.65 | 3.9 | 3.5 | ||||||
| JQ86STH80-4208A | unipolar | 4.2 | 0.65 | 3 | 3.2 | 0.12 | 8 | 1400 | 80 | 2.3 |
| series | 3 | 1.3 | 12 | 4.5 | ||||||
| parallel | 6 | 0.325 | 3 | 4.5 | ||||||
| JQ86STH118-4208A | unipolar | 4.2 | 0.99 | 6 | 6 | 0.24 | 8 | 2700 | 118 | 3.8 |
| series | 3 | 1.98 | 24 | 8.5 | ||||||
| parallel | 6 | 0.495 | 6 | 8.5 | ||||||
| JQ86STH156-4208A | unipolar | 4.2 | 1.25 | 8 | 8.4 | 0.36 | 8 | 4000 | 156 | 5.3 |
| series | 3 | 2.5 | 32 | 12 | ||||||
| parallel | 6 | 0.63 | 8 | 12 |
The motor can be designed and manufactured with customized request.
Dimensions (mm):
Wiring Diagram:

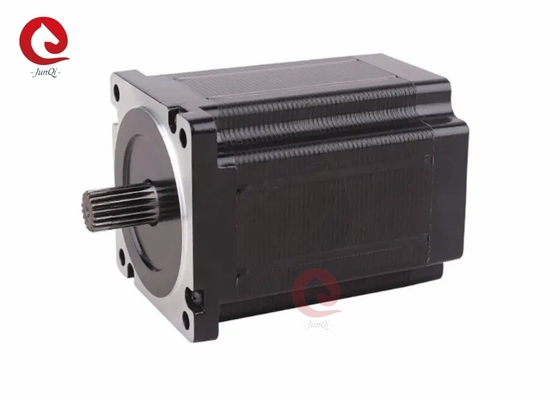

Customized Design: Customized Winding, Customized Flange, Customized Shaft....
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
