| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | CE, ROHS, ISO10993 |
| Model Number: | OWB7575-48V |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD60-USD85/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 1000pcs per month |
| Name: | DC Brushless Blower Fan | Model No.: | OWB7575-48V |
|---|---|---|---|
| Power Source: | Battery/ DC Power Supply | Voltage: | 48VDC |
| Power: | 435W | Pressure: | 50Kpa |
| Air Volume: | 666L/min | Wind Speed: | 80000rpm |
| Pole Pairs Of Magnets: | 2P=1 | Noise: | 45dB(1m-kpa) |
| Warranty: | 12 Months | Weight: | 420g |
| High Light: | 48V brushless blower fan,50Kpa brushless blower fan,brushless blower fan For Sampling Equipment |
||
OWB7575 can be used in many applications, such as fuel cell systems, rapid inflation and pumping scenarios, environmental sampling devices, and more.
DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.
The Blower Main Parameters:
| Model | OWB7575-220VAC | OWB7575-48V |
| Rated Voltage | 220VAC | 48VDC |
| Max.Air Flow | 666L/min | 666L/min |
| Max.Air Pressure | 50kpa | 50kpa |
| Power Consumption | 435W | 435W |
| Free Blowing Speed | 100000rpm | 80000rpm |
| Noise(1kpa-1m) | 45dB(A) | 45dB(A) |
Characteristics:

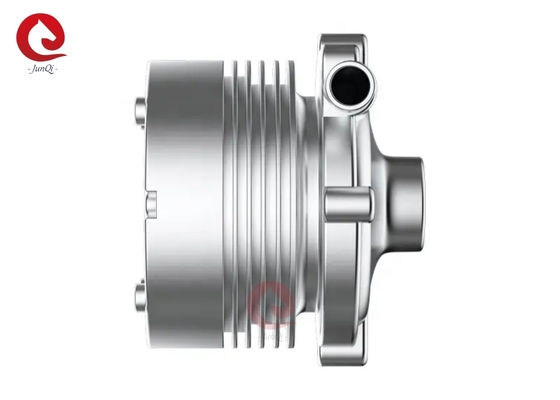

Dimensions:

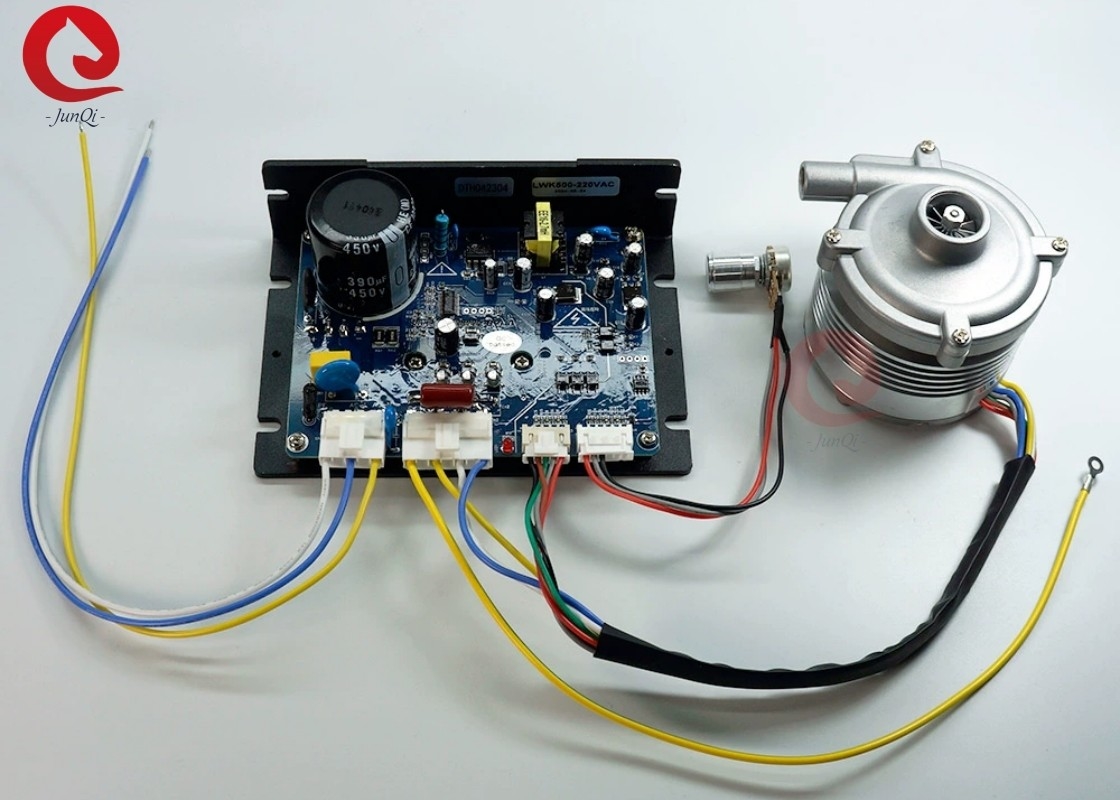

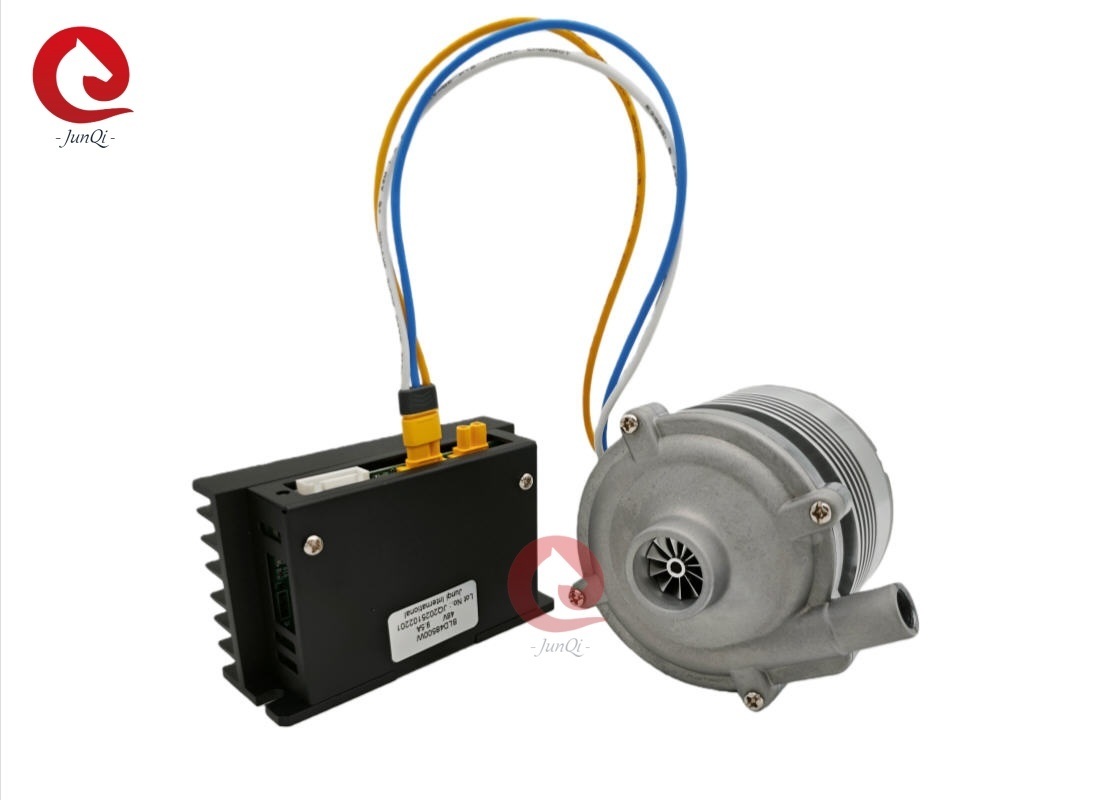

Mattached Driver:
The driver is compatible with 0-5V and PWM modulation, and the wind speed can be more accurately adjusted according to demand.
1. Accepting speed regulation voltage 0-5V (Starting at 0.244V), PWM pulse speed regulation ( Frequency:10KHz, voltage:+5V,duty cycle:0-100%)
2. Directly cooperate with VSR to achieve full startup speed.
3. Then EN pin, in conjunction with GND, can control start and stop when the driver continuously receiveds a speed control signal.
4. FG*60/P=RPM, P=pole pair of Magnet.
