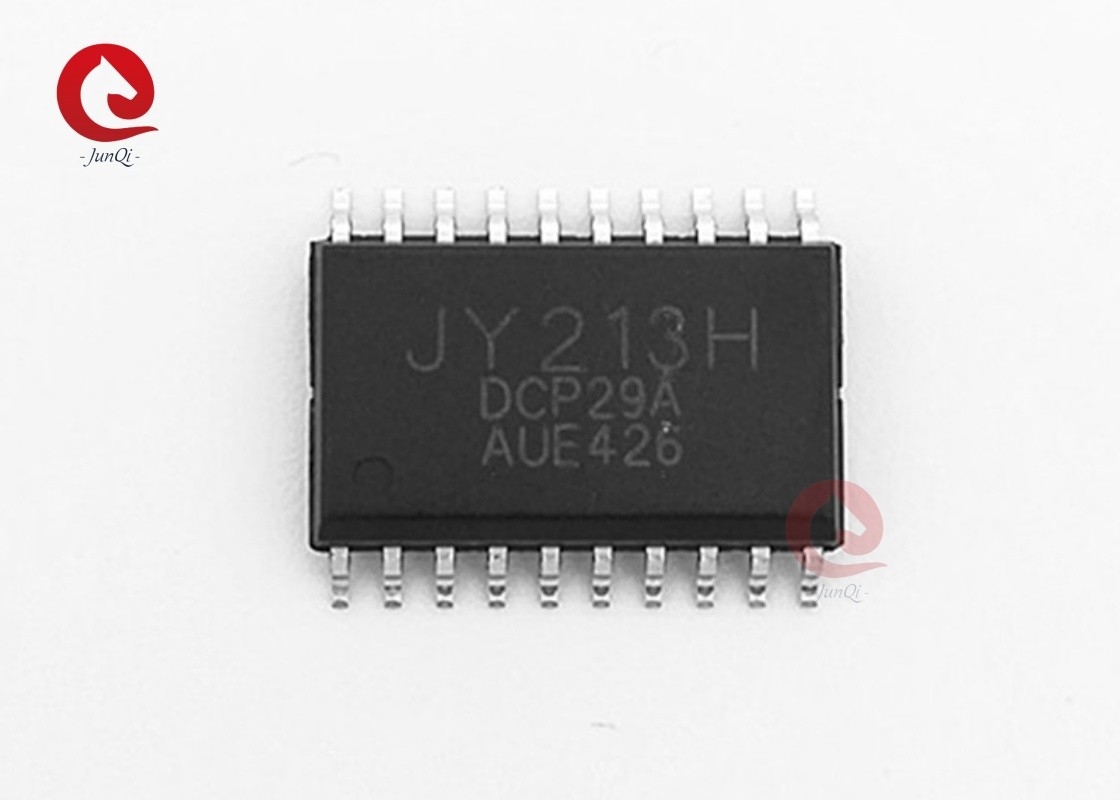

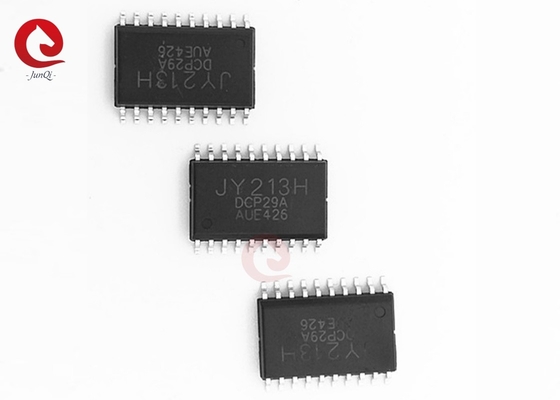

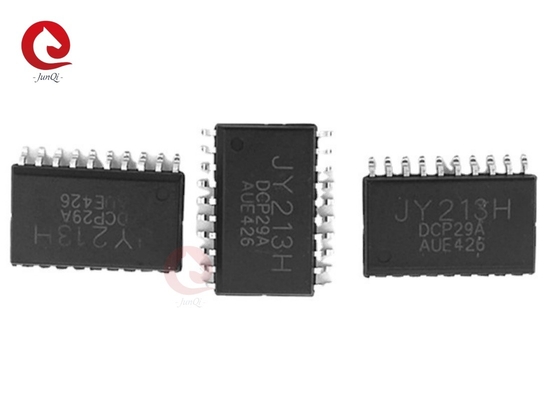

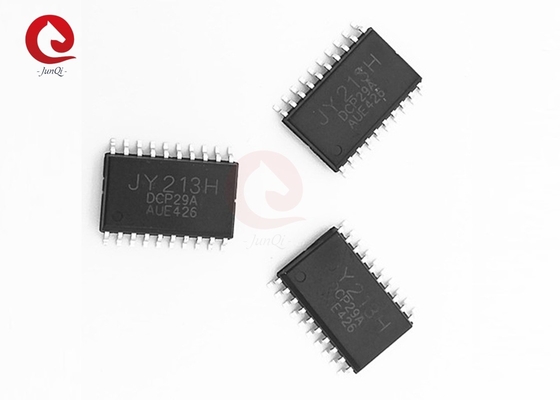

| Name: | High Speed Power MOSFET | Model No.: | JY213H |
|---|---|---|---|
| Package Type: | SOP20 | Channel Type: | Half-bridge High Side Driver |
| Drive: | Driver Up To 3-phase Half-bridge Gates | Grid Type: | High Voltage 3-phase Gate Driver |
| Input Logic Compatible: | 3.3V,5V,15V | High-voltage Process: | 600V |
| Built-in Input Filter: | Yes | Application: | 3-phase Motor Inverter Driver |
| High Light: | A6395451413,A6395450613,OEM Universal Power Window Switches |
||
Descriptions:
The JY213H is a high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels for 3-phase gate driver. Built-in deadtime protection and Shoot-through protection that prevent half-bridge breakdown. The UVLO circuits prevent malfunction when VCC and VBS are lower than the specified threshold voltage. 600V high-voltage process and common-mode noise canceling technique provide stable operation of high-side drivers under high-dv/dt noise circumstances.
Features:
1. Integrated 600V half-bridge high side driver
2. Driver up to 3-phase half-bridge gates
3. Built-in deadtime control
4. Shoot-through protection
5. Under voltage lockout for VCC and VBS
6. 3.3V, 5V,15V input logic Compatible
7. Built-in input filter
8. -40℃ to 125℃ operating range
9. Common-Mode dv/dt Noise Canceling Circuit
Applications:
1. 3-phase Motor Inverter Driver
2. Air Condition
3. Washing Machines
Block Diagram:
Typical application circuit:
Order information:
| Valid Part No. | Package Type | Top Code |
| JY213H-S | 20-PIN, SOP,300mil | JY213H-S |
| JY213H-S1 | 24-PIN, SOP,300mil | JY213H-S1 |
| JY213H-S2 | 28-PIN, SOP,300mil | JY213H-S2 |
PIN Configuration:
PIN Descriptions:
| Pin Name | Descripion | Pin No. | |
| SOP20 | SOP24 | ||
| VCC | Logic and low-side gate drivers power supply voltage | 1 | 1 |
| V5V | 5V LDO output | 2 | |
| HU | Logic input for high-side gate U-phase driver | 2 | 3 |
| HV | Logic input for high-side gate V-phase driver | 3 | 4 |
| HW | Logic input for high-side gate W-phase driver | 4 | 5 |
| LU | Logic input for low-side gate U-phase driver | 5 | 6 |
| LV | Logic input for low-side gate V-phase driver | 6 | 7 |
| LW | Logic input for low-side gate W-phase driver | 7 | 8 |
| GND | Logic ground and low-side gate drivers ground | 8 | 9 |
| LOW | Low-side gate driver-W-phase output | 9 | 10 |
| LOV | Low-side gate driver V-phase output | 10 | 11 |
| LOU | Low-side gate driver W-phase output | 11 | 12 |
| NC. | Not Connected | 13 | |
| VSW | High-side driver W-phase floating supply offset voltage | 12 | 14 |
| HOW | High-side driver W-phase gate driver output | 13 | 15 |
| VBW | High-side driver W-phase floating supply | 14 | 16 |
| NC. | Not Connected | 17 | |
| VSV | High-side driver V-phase floating supply ooset voltage | 15 | 18 |
| HOV | High-side driver V-phase gate driver output | 16 | 19 |
| VBV | High-side driver W-phase floating supply | 17 | 20 |
| NC. | Not Connected | 21 | |
| VSU | High-side driver U-phase floating supply ooset voltage | 18 | 22 |
| HOU | High-side driver U-phase gate driver output | 19 | 23 |
| VBU | High-side driver U-phase floating supply | 20 | 24 |
PIN Descriptions:
| Pin Name | Descripion | Pin No. |
| VCC | Logic and low-side gate drivers power supply voltage | 1 |
| V5V | 5V LDO output | 2 |
| NC. | Not Connected | 3 |
| SGND | Logic ground | 4 |
| HU | Logic input for high-side gate U-phase driver | 5 |
| HV | Logic input for high-side gate V-phase driver | 6 |
| HW | Logic input for high-side gate W-phase driver | 7 |
| LU | Logic input for low-side gate U-phase driver | 8 |
| LV | Logic input for low-side gate V-phase driver | 9 |
| LW | Logic input for low-side gate W-phase driver | 10 |
| NC. | Not Connected | 11 |
| NC. | Not Connected | 12 |
| PGND | Low-side gate drivers ground | 13 |
| LOW | Low-side gate driver-W-phase output | 14 |
| LOV | Low-side gate driver V-phase output | 15 |
| LOU | Low-side gate driver W-phase output | 16 |
| NC. | Not Connected | 17 |
| VSW | High-side driver W-phase floating supply offset voltage | 18 |
| HOW | High-side driver W-phase gate driver output | 19 |
| VBW | High-side driver W-phase floating supply | 20 |
| NC. | Not Connected | 21 |
| VSV | High-side driver V-phase floating supply ooset voltage | 22 |
| HOV | High-side driver V-phase gate driver output | 23 |
| VBV | High-side driver W-phase floating supply | 24 |
| NC. | Not Connected | 25 |
| VSU | High-side driver U-phase floating supply ooset voltage | 26 |
| HOU | High-side driver U-phase gate driver output | 27 |
| VBU | High-side driver U-phase floating supply | 28 |
