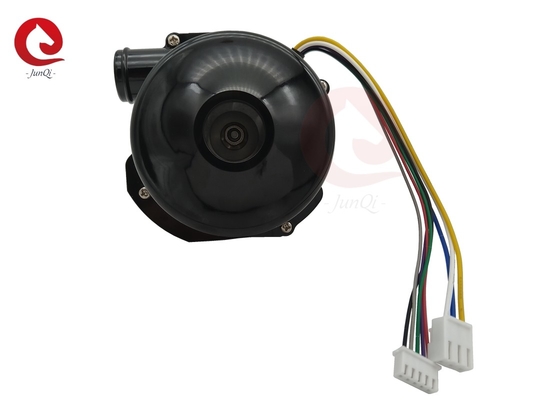

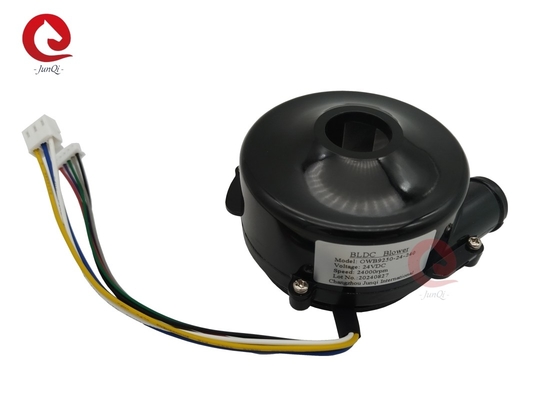

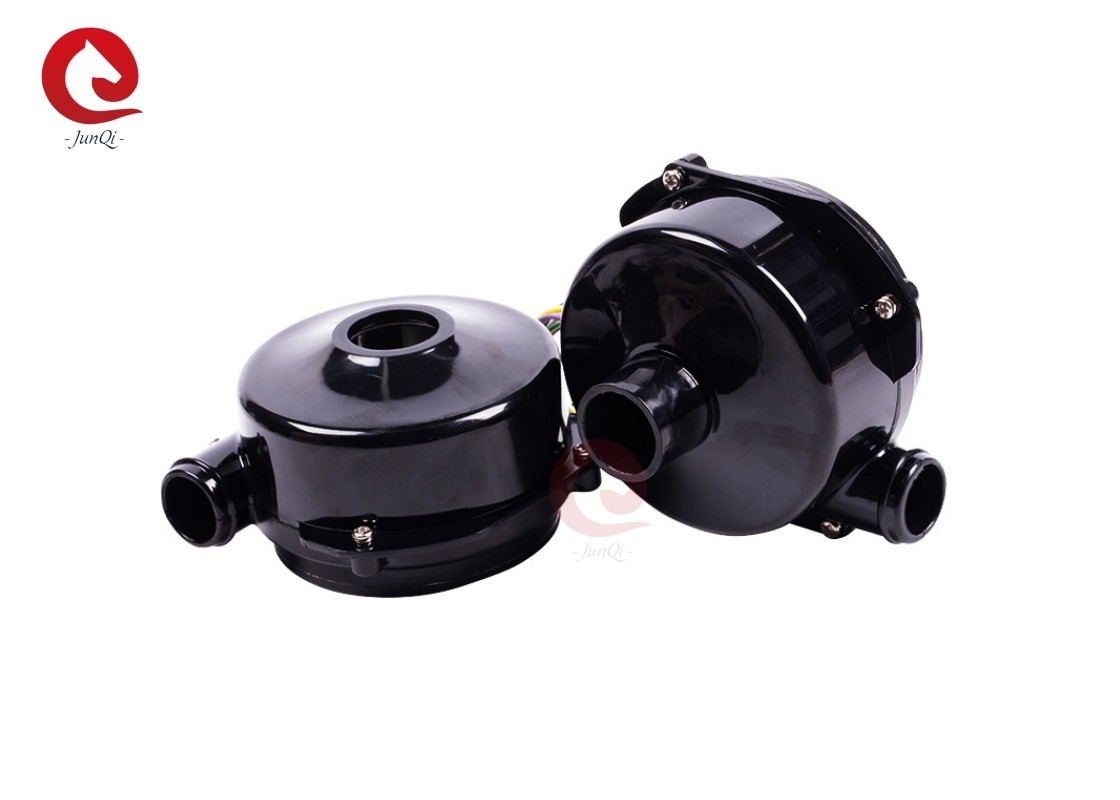

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower

  • 8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower
  • 8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower
  • 8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower
  • 8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower
8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower
Product Details:
Place of Origin: China
Brand Name: JEUNKEI
Certification: ISO9001, CE
Model Number: OWB9250-24-240
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs ( sample available)
Price: USD50-USD60/PC
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T, , Western Union, Paypal
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Name: High Pressure DC Brushless Air Blower For Medical Device Model No.: OWB9250-24-240
Voltage: 24VDC Blade Material: Aluminum

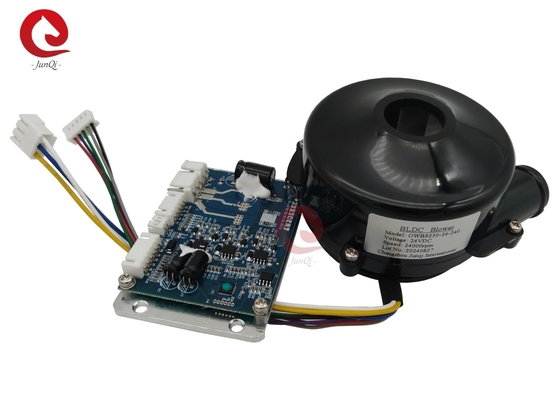

Bearing: NMB Ball Bearing Driver: External Driver
Fan Type: DC Centrifugal Fan Size: 92mm*50mm
Color: Black Speed: 24000rpm
Highlight:

8 Kpa brushless blower fan

,

28 CFM brushless blower fan

,

High Capacity brushless blower fan

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower 0

Part Name
high capacity airflow medical blower
Part No
OWB9250-24-240
Rated votlage
24VDC
Max power consumption
160W
Life time(MTTF)
>20,000hours
Unit weight
0.4kgs
Bearing
NMB Ball bearing
Insulation class
Class F
Driver board
External
Speed control
PWM or 0~5V



Mechanical Size:

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower 1



P-Q Performance Curve:



8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower 2



Wiring Diagram:

8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower 3

Package:



8 Kpa High Pressure OWB9250-24V DC Brushless Air Blower Fan With 28 CFM High Capacity Airflow Medical Blower 4



Applications:



1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
