To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | ISO9001,CE |
| Model Number: | OWB9290B-24V-220 |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD40-USD65/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 1000pcs per month |

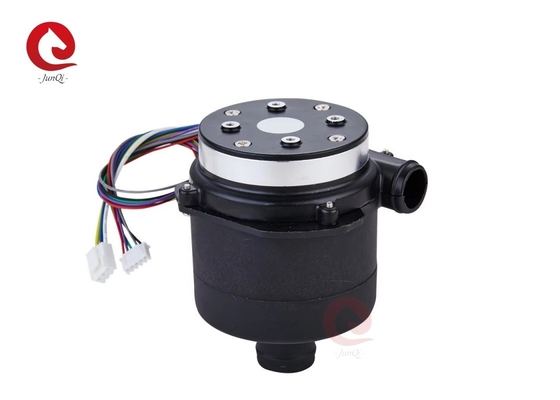

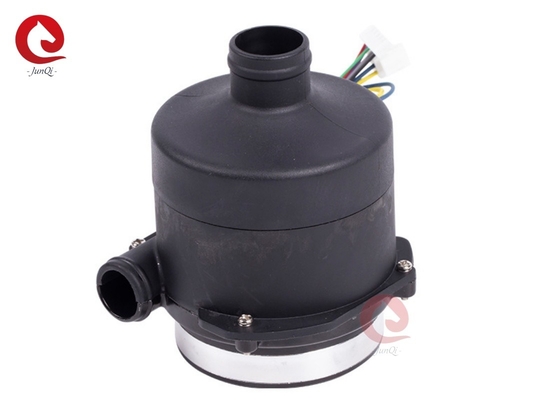

| Name: | DC Brushless Air Blower With High Pressure For Ventilatros | Model No.: | OWB9290B-24V |
|---|---|---|---|
| Voltage: | 24VDC | Max.Power Consumption: | 190W |
| Bearing: | NMB Ball Bearing | Insulation Class: | Class F |
| Unit Size: | D90*L114mm | Life Time(MTTF): | ＞20000hours |
| Driver Board: | External | Speed Control: | PWM Or 0~5V |
| High Light: | 92*90mm brushless dc blower,12Kpa brushless dc blower,Ventilatros and Inflatables brushless dc blower |
||
OWB9290B-24V Blower parameters:
| Model | OWB9290B-24V-220 |
| Voltage | 24VDC |
| At Free Blowing | |
| Speed | 22500±10%rpm |
| Current | 7.8±10%A |
| Air Flow | 47±10%m³/h |
| At Static Pressure | |
| Speed | 28500±10% rpm |
| Current | 5.2±10% A |
| Air Pressure | 12.5±10% Kpa |
| At Working Point | |
| Air Pressure | 8.0Kpa |
| Speed | 25500±10%rpm |
| Current | 7.7±10%A |
| Air Flow | 25±15%m³/h |
Drawing:
P-Q Performance Curve:

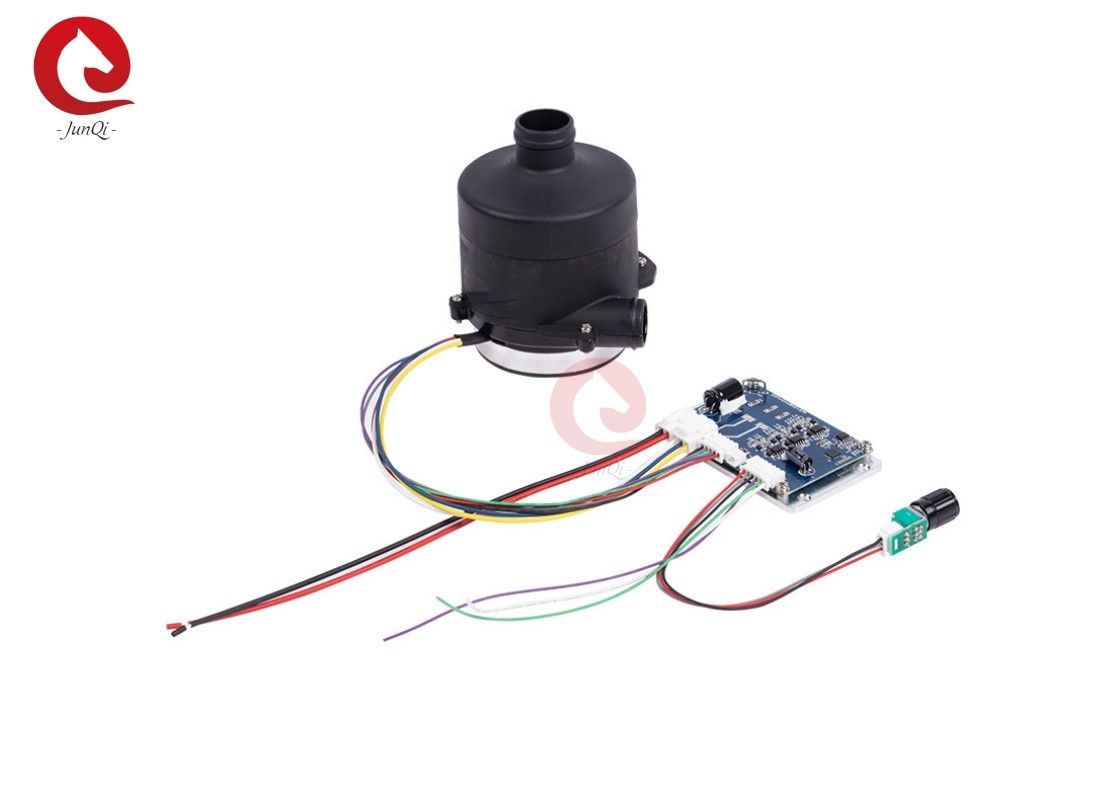

Wiring Diagram for Driver Controller:
Package:
Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
Brushless DC Air Blower Features:
High pressure and airflow output by compact size design
High reliability, specialized controller make the working more reliable
High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling
