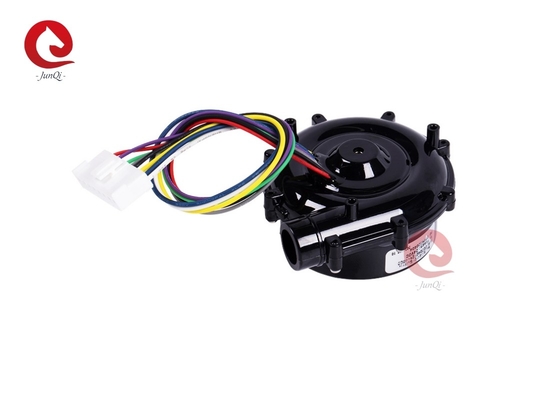

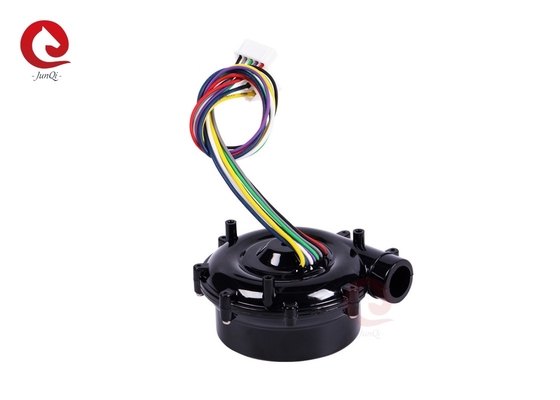

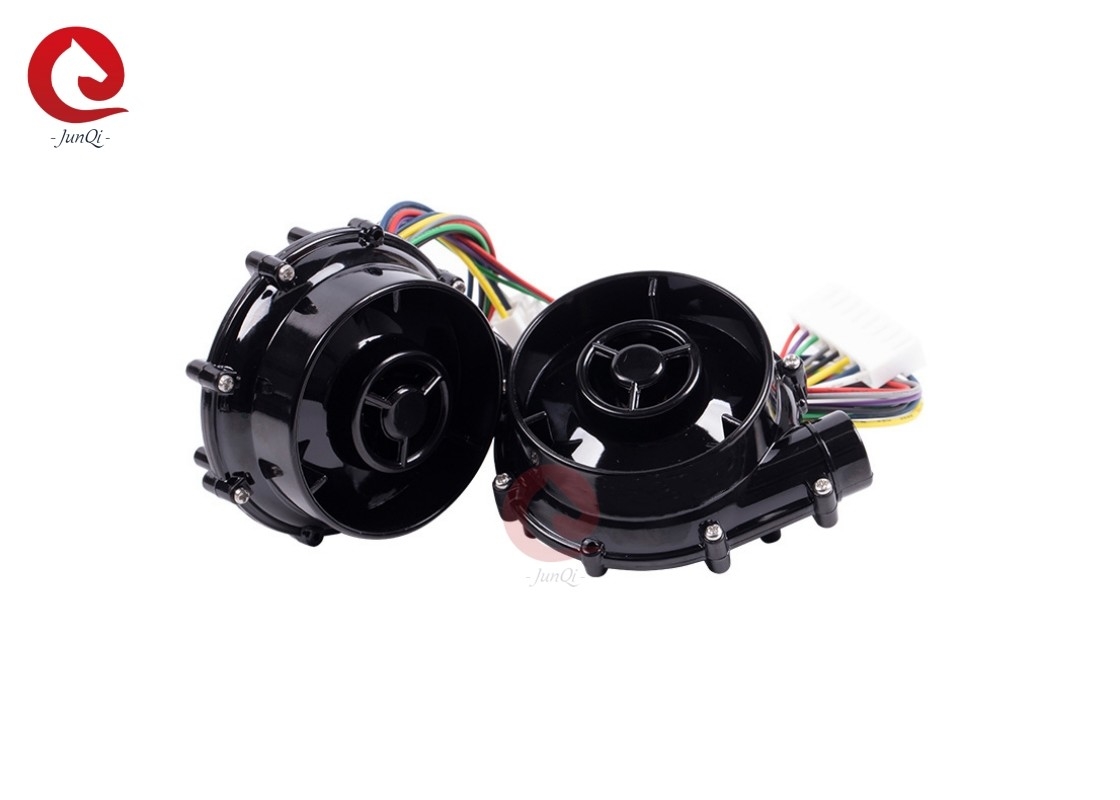

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan

Product Details:

Place of Origin:	China
Brand Name:	JEUNKEI
Certification:	ISO9001,CE
Model Number:	OWB7040-24V

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs ( sample available)
Price:	USD24-USD30/PC
Packaging Details:	Suite for export
Delivery Time:	depend on the order quantity /Negotiable
Payment Terms:	T/T, , Western Union, Paypal
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Name:	Brushless DC Centrifugal Blower Fan	Model No.:	OWB7040-24V
Voltage:	24VDC	Static Pressure:	6.8Kpa
Bearing:	NMB Ball Bearing	Motor Type:	3-Phase DC Brushless Motor
Life Time(MTTF):	＞12000 Hours ( Under 25℃）	Warranty:	12 Months
Outlet Tube Diameter:	OD12mm- ID12mm	Unit Size:	D70mm*H37mm

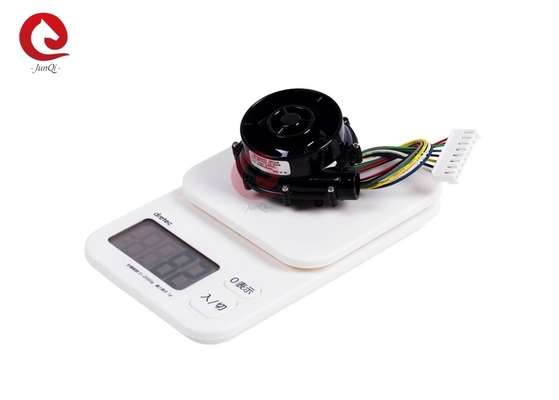

Weight:	80g	Color:	Black
Highlight:	24V brushless centrifugal fan , 60mm brushless centrifugal fan , Small Size brushless centrifugal fan

OWB7040 Blower Fan Parameter:

Model	OWB7040-24V
Voltage	24VDC
Free-Blowing
Speed	37000±7% rpm
Current	2.7±10%A
Air Flow	25.5±10%m³/h
At Static Pressure
Speed	45000±7%rpm
Current	0.8±15%A
Air Pressure	6.5±10%Kpa
At Working Point
Air Pressure	4Kpa
Speed	40000±10%rpm
Current	1.9±10%A
Air Flow	13±10%m³/h

Notes:

1. Don't use max pressure as working point, this point is not safe since airflow is too small.

2. To add a filter onto the inlet can make the blower run longer time.

3. The right impeller run direction is CCW.

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan 0

Drawing:

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan 1

Wiring Diagram
Pin 1	Red	Vcc
Pin 2	Purple	Hall A
Pin 3	Green	Hall B
Pin 4	Grey	Hall C
Pin 5	Black	GND
Pin 6	Yellow	Phase A
Pin 7	Blue	Phase B
Pin 8	White	Phase C

P-Q Performance Curve:

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan 2

Applications:

1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
