| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | ISO9001,CE |
| Model Number: | OWB8045-24V |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD40-USD65/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 1000pcs per month |

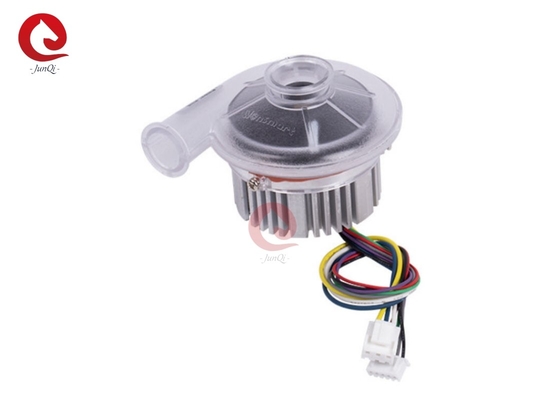

| Name: | 24V 3-Phase BLDC Blower Fan | Model No.: | OWB8045-24V |
|---|---|---|---|
| Voltage: | 24VDC | Air Flow: | 47m³/h |
| Bearing: | NMB Ball Bearing | Speed Control: | PWM Or 0-5V |
| Size: | 80*45mm | Noise: | 79dBA |
| Life Time: | 20000hours | Application: | Mdeical Device |
| High Light: | 24VDC bldc blower fan,Medical Device brushless blower fan,CPAP brushless blower fan |
||
Brushless DC Air Blower Features:
High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise
High efficiency, much more efficient than brush motor blower
High reliability, specialized controller make the working more reliable
High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling
Blower Technical Parameters:
| Model | OWB8045-24V |
| Voltage | 24VDC |
| At Free Blowing | |
| Speed | 37500±5%rpm |
| Current | 8.8±10%A |
| Air Flow | 39±5%m³/h |
| At Static Pressure | |
| Speed | 43000±5%rpm |
| Current | 3.3±10%A |
| Air Pressure | 12.7±5%Kpa |
| At Working Point | |
| Air Pressure | 8Kpa |
| Speed | 39000±5%rpm |
| Current | 7.3±10%A |
| Air Flow | 25±5%m³/h |
P-Q Performance Curve:
Dimensions:

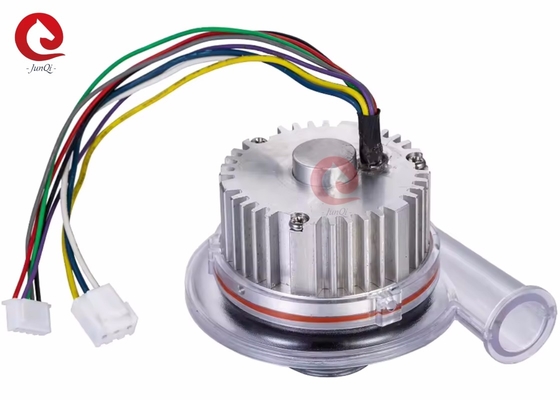

| Wiring Diagram | |||
| HX25002-5Y | |||
| Pin 1 | 26AWG | Red | +5V |
| Pin 2 | 26AWG | Purple | Hall A |
| Pin 3 | 26AWG | Green | Hall B |
| Pin 4 | 26AWG | Grey | Hall C |
| Pin 5 | 26AWG | Black | GND |
| HX39600-3Y | |||
| Pin 1 | 20AWG | Yellow | Phase A |
| Pin 2 | 20AWG | Blue | Phase B |
| Pin 3 | 20AWG | White | Phase C |
Application:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
