Place of Origin: | China |
Brand Name: | JEUNKEI |
Certification: | ISO9001,CE |
Model Number: | OWB13075-12V |
Minimum Order Quantity: | 5pcs ( sample available) |
---|---|
Price: | USD35-USD50/PC |
Packaging Details: | Suite for export |
Delivery Time: | depend on the order quantity /Negotiable |
Payment Terms: | T/T, , Western Union, Paypal |
Supply Ability: | 1000pcs per month |

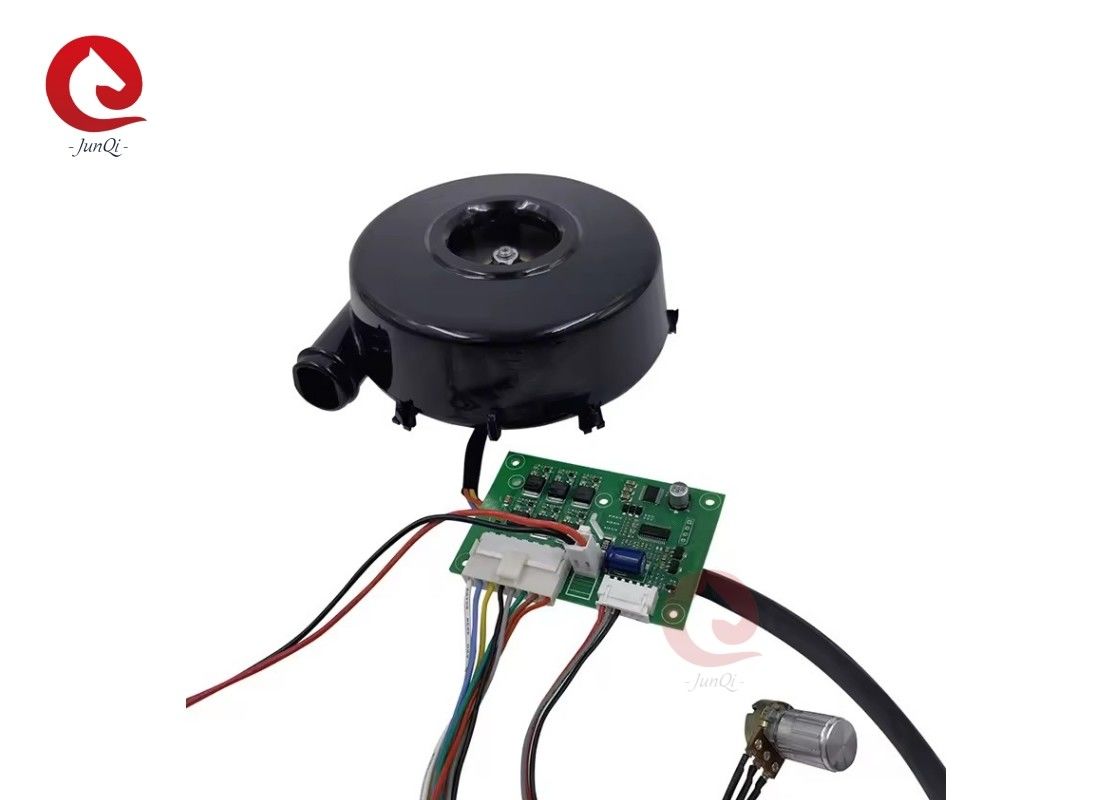

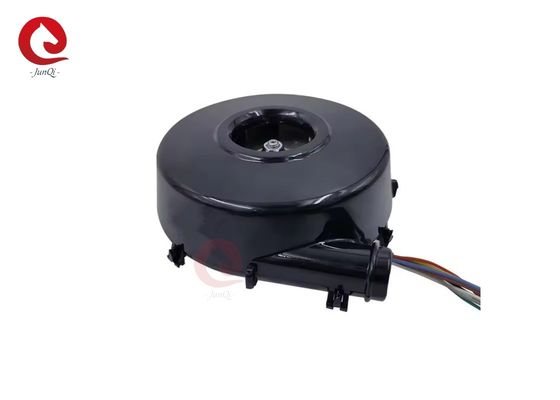

Name: | Brushless DC Blower Fan | Model No.: | OWB13075-12V |
---|---|---|---|
Voltage: | 12VDC | Power: | 90W |
Size: | 130*117*75mm | Air Volume: | 700L/min |
Wind Speed: | 13500rpm | Pole Paires Of Magnets: | 4P=2 |
Noise: | 45dB(1m-kpa) | ||
High Light: | 12V brushless blower fan,High Performance brushless blower fan,Portable Silent brushless blower fan |
The OWB13075 is high-perfrmance blower, it combines high airflow and low power consumption to meet a variety of applications, helps customers meet air flow requirements and improves the service life of the product at the same time.
Blower Technical Parameter:
Model | OWB13075-12V | OWB13075-24V |
Max.Flow | 650L/min | 800L/min |
Max.Pressure | 4kpa | 6.5kpa |
Current | 7A | 6.3A |
Speed | 13100rpm | 16000rpm |
Voltage Range | 7.8~14.8V | 7.8~30V |
Power | 84W | 150W |
Resistance | 210mΩ | 440mΩ |
Inductance | 89-95uH | 180-182uH |
Rotor inertia | 25.72gcm² | 25.72gcm² |
Noise | 48dB | 48dB |
MTBF | 25000hours | 25000 hours |
Using Temperature | -20~90℃ | -20~90℃ |
Weight | 340g | 340g |
Hall Angle | 120° | 120° |
Pole pair | 4P=2 | 49=2 |
Connection | Y | Y |
IP Class | IP54 | IP54 |
Dimensions:
Wiring Diagram | ||
No. | Wires | Code |
1 | White | U |
2 | Blue | V |
3 | Yellow | W |
4 | Black | GND |
5 | Gray | Hall A |
6 | Green | Hall B |
7 | Orange | Hall C |
8 | Red | +5V |
Flow and Pressure Curves:
Applications:
CPAP, Clinical Ventilator, Home Ventilator, Breathing Machine, Fuel Cell, Express Air Cushion Machine, Beatury Air Cooler, Sampling Instrument, Expectorant Vest.
