To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | ISO9001,CE |
| Model Number: | OWB7095 |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD45-USD55/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 1000pcs per month |

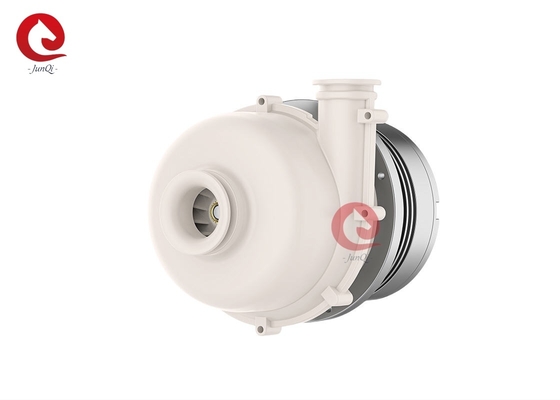

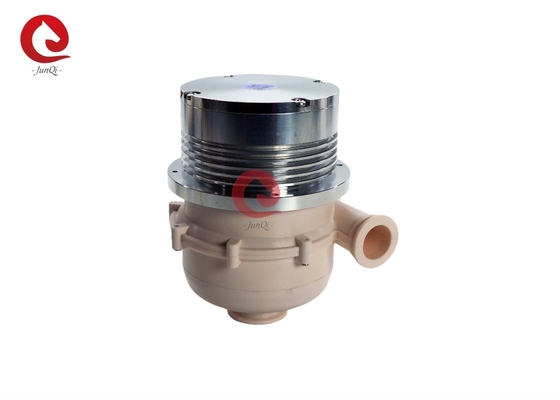

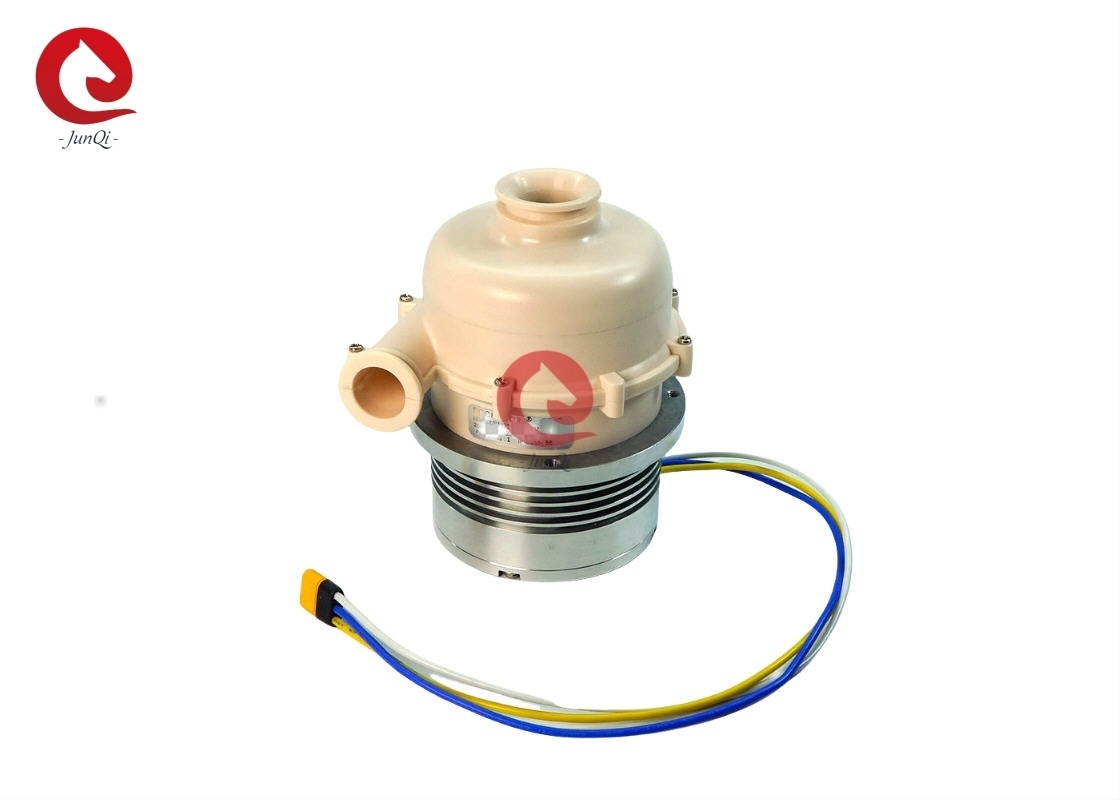

| Name: | Brushless DC Blower Fan | Model No.: | OWB7095 |
|---|---|---|---|
| Voltage: | 24V/220VAC | Max.Pressure: | 23Kpa |
| IP Rating: | IP50 | Noise: | 45dB |
| Power: | 270W/288W | Speed: | 38000±5%rpm |
| Using Temperature: | -20~50℃ | Material: | PA66 Plastic Casing |
| High Light: | 24CFM mini air blower,23kpa high power air blower,Inflator high speed air blower |
||
Description:
| 24CFM 23kpa high speed high power min Air blower 24v 220v for High speed inflator and scalpel smoke purification system | |||
| Model | OWB7095 |
Max.Air Flow (Air pressure=0) |
680L/min, 40.8m³/h, 24CFM |
| Material |
PA66+30%GF plastic impeller and casing (UL and ISO10993) |
Max.Pressure (Air Flow=0) |
23Kpa |
| Voltage | 24VDC/220VAC | Speed | 38000rpm |
| Power | 270W/288W | Noise | 45dB |
| Lifespan | 22000 hours | Using Temperature | -20~50℃ |
| IP rating | IP50 | Weight | 570g |
| Warranty | 12 months | Certification | CE |
OWB7095 is one of the high air volume blowers of JUNQI Blowers.
OWB7095 not only has a large air volume of 680l/min, but also its air pressure can reach 23kpa. The control accuracy is high, which Improves efficiency and accuracy during customer use.
Dimension:
Performance Curve:

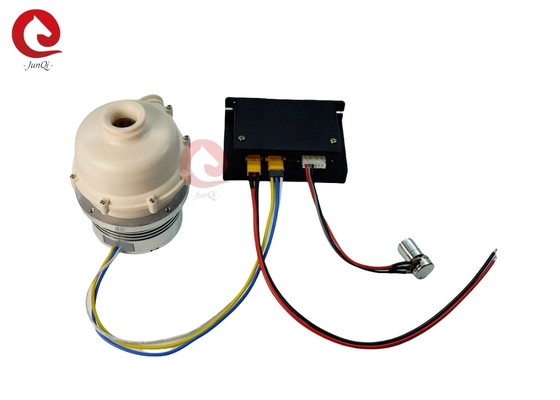

Matched Driver:
The driver is compatible with 0-5V and PWM modulation, and the wind speed can be more accurately adjusted according to demand.
1. Accepting speed regulation voltage 0-5V (Starting at 0.244V), PWM pulse speed regulation ( Frequency:10KHz, voltage:+5V,duty cycle:0-100%)
2. Directly cooperate with VSR to achieve full startup speed.
3. Then EN pin, in conjunction with GND, can control start and stop when the driver continuously receiveds a speed control signal.
4. FG*60/P=RPM, P=pole pair of Magnet.
Application:
OWB7095 can be mainly used in various types of ventilators(clinical and domestic), It has also worked closely with manufacturers in the hand dryer, environmental samplers, cell fuel stack and express air column filling industries.
DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.
Package:
