| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | ISO9001, CE |
| Model Number: | OWB7095 |
| Minimum Order Quantity: | 5pcs ( sample available) |
|---|---|
| Price: | USD40-USD60/PC |
| Packaging Details: | Suite for export |
| Delivery Time: | depend on the order quantity /Negotiable |
| Payment Terms: | T/T, , Western Union, Paypal |
| Supply Ability: | 1000pcs per month |
| Name: | Micro Blower Fan | Model No.: | OWB7095-24V/220VAC |
|---|---|---|---|
| Power Source: | DC Power Supply8 Battery | Voltage: | 24VDC/220VAC |
| Power: | 270-288W | Size: | 86*82*105mm |
| Air Volume: | 680L/min | Wind Speed: | 38500rpm |
| Pole Pairs Of Magnets: | 2P=1 | Warranty: | 12 Months |
| Noise: | 45dB(1m-kpa) | ||
| High Light: | 23kPa Brushless Fan Blower,Air Cushion Machine Brushless Fan Blower,Hand Dryer Brushless Fan Blower |
||
Brushless DC Air Blower Features:
1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise
2: High pressure and airflow output by compact size design
3: High efficiency, much more efficient than brush motor blower
4: High reliability, specialized controller make the working more reliable
5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling
Blower Main Technical Parameters:
| Model | OWB7095-24V | OWB7095-220VAC |
| Max.Flow (L/min) | 680 | 680 |
| Max.Pressure (kpa) | 23 | 23 |
| Current (A) | 12 | 1.182 |
| Speed (rpm) | 38500 | 38500 |
| Voltage Range (V) | 7.8~30 | 200~240 |
| Power (W) | 288 | 270 |
| Resistance (mΩ) | 51.5 | 5380 |
| Inductance (uH) | 165-170 | 24-26 |
| Rotor Inertia (g.cm²) | 8.73 | 8.73 |
| Noise dB(1m-1kpa) | 45 | 45 |
| MTBF (hour) | 22000 | 22000 |
| Weight (g) | 570 | 570 |
| Hall Angle | / | / |
| Pole Pair | 2P=1 | 2P=1 |
| Connection | △ | Y |
| IP Class | IP50 | IP50 |
Dimensions:
24V P-Q Curve and Flow&Power&Speed Curve:
Application:
OWB7095 can be mainly used in various types of ventilators(clinical and domestic), It has also worked closely with manufacturers in the hand dryer, environmental samplers, cell fuel stack and express air column filling industries.
DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.

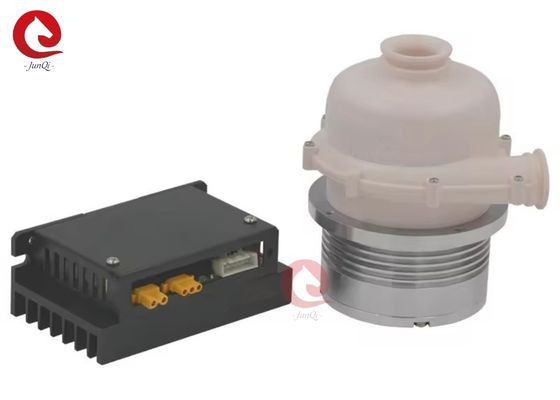

OWB7095 Blower Mattached Driver:
