To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | Changzhou,China |
| Brand Name: | Junqi |
| Certification: | CE, RoHs, REACH |
| Model Number: | NEMA11 Stepper motor |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | USD9-27/PC Negotialbe |
| Packaging Details: | CTN |
| Delivery Time: | 4weeks after get payment (base on order), |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000set/month |
| Model Number: | JQ28HB51-0674A | Step Angle(degrees): | 1.8° |
|---|---|---|---|
| Holding Torque: | 0.12N.m | Phase: | 2 |
| Type: | Hybrid | Current/Phase: | 0.67A |
| Usage: | Industrial | Function: | Control |
| Speed: | Low Speed | Structure: | Step |
| Portect Feature: | Enclosed | Shape: | Square |
| Body Length: | 51mm | Shaft: | Single Shaft |
| High Light: | junqi 0.12Nm Electric Stepper Motors,junqi 51mm nema stepper motor,junqi 0.67A Electric Stepper Motors |
||

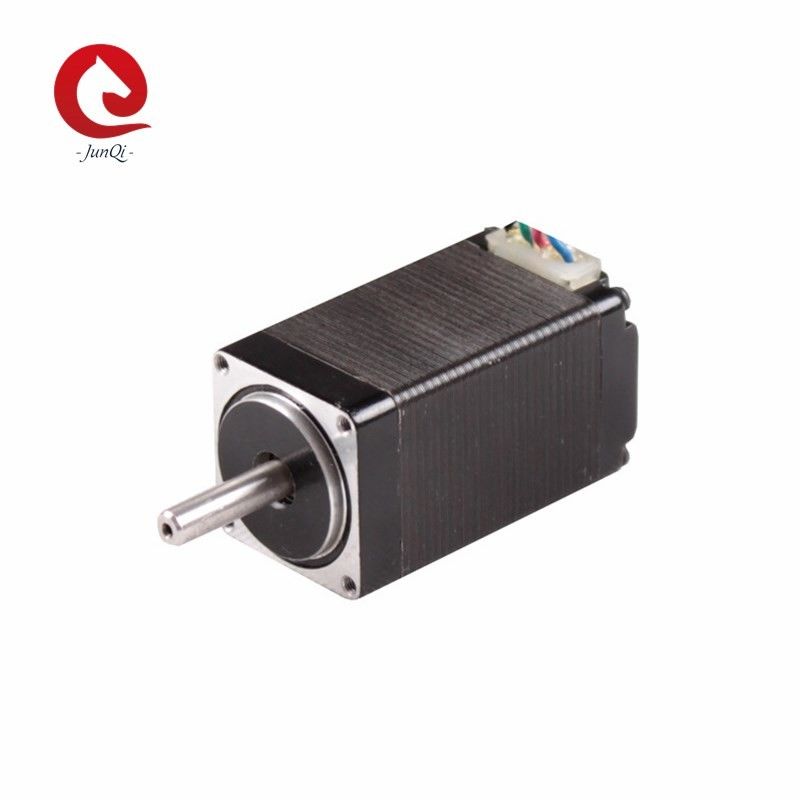

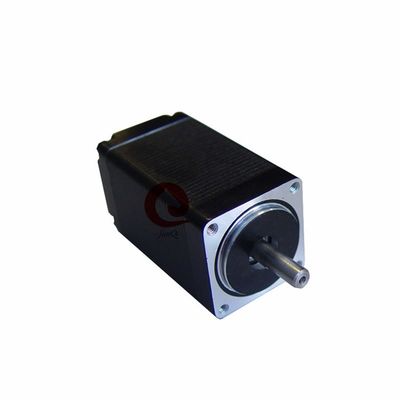

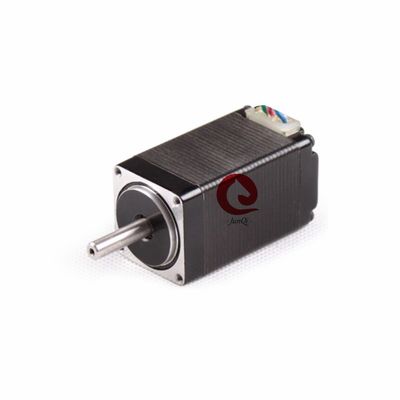

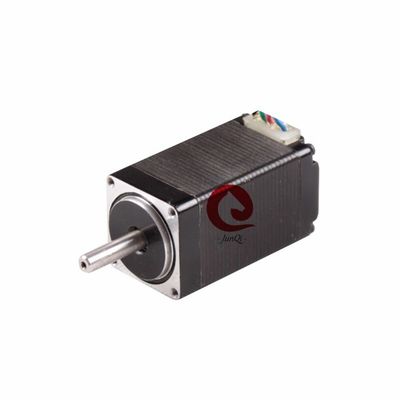

JQ28HB51-0674A 1.8Degree 2-phase stepper motor
Features:
1. Low Inertia, Quick Response
2. High Torque, High Efficiency
3. Low Vibration, Low Noise
4. Small Size
Quick Details:
| Model | Frame Size | Phase | Shaft Type |
Body Length (mm) |
Holding Torque (Nm) |
Rated Current (A) |
| JQ28HB51-0674A | NEMA11(28mm) | 2 | Single Shaft | 51 | 0.12 | 0.67 |
Mechanical Size:
Wiring Diagram:
Torque Curve:
| Items | Value |
| Phase | 2 |
| Step Angle | 1.8degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max Radial force | 28N 5mm from flange |
| Max Axial Force | 7N |
| Dielectric Strength | 600VAC / 1S |
| Insulation Resistance | 100MΩ ,500VDC |
| Ambient Temperature | -20℃~ +50℃ |
| Insulation Class | Class B |
| Certification | CE |
| IP Rate | IP30 |
| Lead Wire Type | Leads |
| Shaft Type | Single shaft |
| Rotor Inertia | 18 g.cm^2 |
| Frame Size | 28 mm |
| Body Length | 51 mm |
| Holding Torque | 0.12 N.m |
| Current/Phase | 0.67 A |
| Resistance | 9.2 Ω |
| Inductance | 7.2 mH |
| Winding Type | Bipolar |
| Detent Torque | 0.008 N.m |
| Front Shaft Length | 20 mm |
| Lead Wire No. | 4 |
| Weight | 0.2 kg |
| Shaft Diameter | 5 mm |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Motor Application Fields:
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
Bank Equipment: ATM machine
New Energy: Solar Tracking System
Robotics: Telepresence Robot; Humanoid Robot; Lawn Mower Robot; Robot Arm.
Agriculture Machinery: Fertiliser Distribution System; Harvesting Machines; Hydraulic Equipment Replacement; Precision Seed Drills; Pruning Scissors; Robotic Milking Machines
FAQ:
Q: How long is the lead time of orders?
A: Lead time : 4 weeks after receive the deposit
Q: What is your trade Assurance?
A: 100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q: Do You Make Customized Product?
A: Yes,We Accpet IT.
Q: About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q: What is the payment term?
A: T/T and Paypal is used more,please contact us for details
Q: What is the quality level of your product?
A: We produce good quality, refuse to produce low quality.
