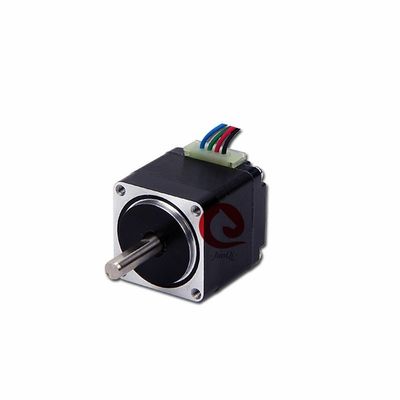

32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm

32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm

  • 32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm
  • 32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm
  • 32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm
  • 32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm
32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm
Product Details:
Place of Origin: Changzhou,China
Brand Name: Junqi
Certification: CE, RoHs, REACH
Model Number: NEMA11 Stepper motor
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD10-28/PC Negotialbe
Packaging Details: CTN
Delivery Time: 4weeks after get payment (base on order),
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000set/month
Contact Now
Detailed Product Description
Model Number: JQ28HB32-0956A Step Angle(degrees): 1.8°
Holding Torque: 0.043N.m Phase: 2
Type: Hybrid Current/Phase: 0.95A
Usage: Industrial Function: Control
Speed: Low Speed Structure: Step
Portect Feature: Enclosed Shape: Square
Body Length: 32mm Shaft: Single Shaft
High Light:

32mm cnc stepper motor

,

NEMA11 miniature stepper motor

,

NEMA11 cnc stepper motor

                                                       JQ28HB32-0956A 1.8Degree 2-phase stepper motor



Features:

1. Low Inertia, Quick Response

2. High Torque, High Efficiency

3. Low Vibration, Low Noise

4. Small Size



Quick Details:

Model Frame Size Phase Shaft Type

Body Length

   (mm)

Holding Torque

  (Nm)

Rated Current

 (A)

JQ28HB32-0956A NEMA11(28mm) 2 Single Shaft 32 0.043 0.95



Mechanical Size:

32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm 0

Wiring Diagram:



32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm 1



Torque Curve:

32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm 2



S

Items Value
Phase 2
Step Angle 1.8degree
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max Radial force 28N 5mm from flange
Max Axial Force 7N
Dielectric Strength 600VAC / 1S
Insulation Resistance 100MΩ ,500VDC
Ambient Temperature -20℃~ +50
Insulation Class Class B
Certification CE
IP Rate IP30
Lead Wire Type Leads
Shaft Type Single shaft
Rotor Inertia 9 g.cm^2
Frame Size 28 mm
Body Length 32 mm
Holding Torque 0.043 N.m
Current/Phase 0.95 A
Resistance 2.8 Ω
Inductance 1.0 mH
Winding Type Unipolar
Detent Torque 0.005 N.m
Front Shaft Length 20 mm
Lead Wire No. 6
Weight 0.11 kg
Shaft Diameter 5 mm

pecification:



We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm 3



Professional Factory:

32mm body length NEMA11 2phase Stepper Motor 28mm 0.95A 0.043Nm 4







Motor Application Fields:





Medical:                    Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment                                                 liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift

Textile:                      Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.

Industrial Control:      CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics:                    Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical:   Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation:         Printer, 3D Printer
Automobile:                    Seat Pump; Door System; Air Damper/Mixer; Lamp System
Bank Equipment:              ATM machine
New Energy:                      Solar Tracking System
Robotics:                               Telepresence Robot; Humanoid Robot; Lawn Mower Robot; Robot Arm.
Agriculture Machinery:              Fertiliser Distribution System; Harvesting Machines; Hydraulic Equipment Replacement; Precision Seed Drills;                                                            Pruning Scissors; Robotic Milking Machines
