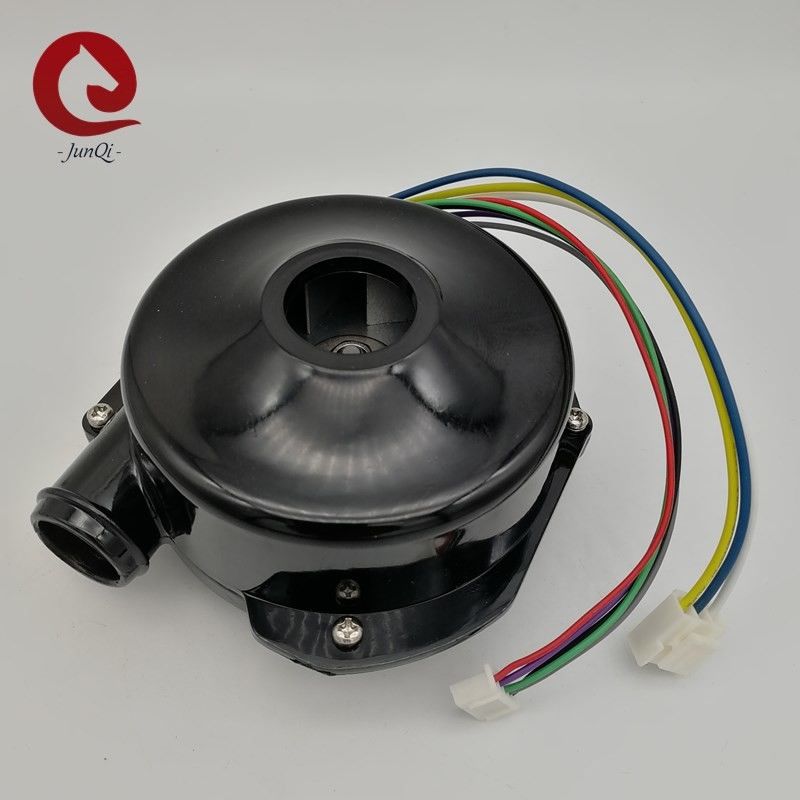

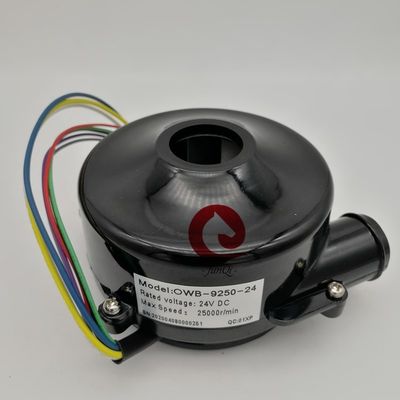

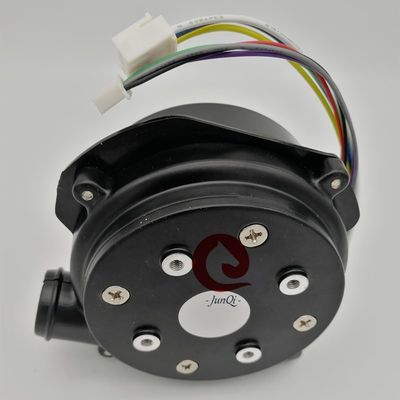

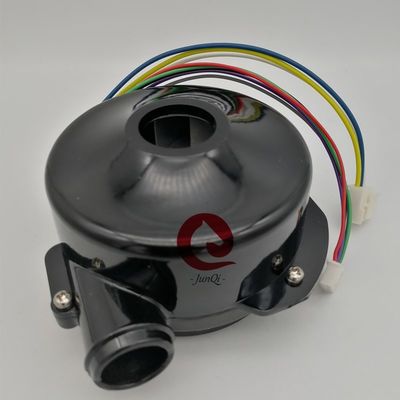

24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device

24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device

  • 24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device
  • 24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device
  • 24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device
  • 24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device
24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: CE,Rohs
Model Number: OWB-9250-240
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per day
Contact Now
Detailed Product Description
Product Name: BLDC Blower Rated Voltage: 24V DC
Rated Current: 6.5A Motor Speed(open): 24000RPM
Motor Speed(closed): 28500rpm Driving Motor: 3 Phase Brushless DC Motor
Bearing: NMB Ball Bearing Air Pressure: 8Kpa
Net Weight: 400g IP Grade: IP 54
Service Life: 10000 Hours
High Light:

24VBrushless DC Blower

,

24VDC Centrifugal Blower

,

28500rpm Brushless DC Blower

OWB9250 series DC brushless air blower







1: Brushless DC Air Blower Features:
High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise
High efficiency, much more efficient than brush motor blower
High reliability, specialized controller make the working more reliable
High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

2: Products Parameters

Model OWB9250-240 OWB9250-220
Rated Voltage 24VDC 24VDC
Rated current(open) 6.5A 5A
Air flow(open) 42M3/H 37M3/H
Motor Speed(open) 24000 RPM 22000RPM

Rated current(closed) 2.3A 2.2A
Air pressure(closed) 8kPa 6.8kPa
Motor Speed(closed) 28500 RPM 26500RPM

Motor pole 4 4
Phase Resistance 0.62 Ohm 0.66 Ohm
Noise 80 dBA 80 dBA
Ball Bearing NMB High-speed ball bearing
Driving motor 3 phase brushless DC motor
Hall sensor angle 120°
RPM-Pulse 1 Hz=30rpm
Winding type Delta
Winding withstand Voltage 500VDC (1 minute )
Insulation Class Class F
Blower weight 400 g
IP grade IP54
Operation temperature -20℃~ 50℃
Service life (under 40℃) 10000 hours










































3: Products performance

OWB9250 24V DC brushless blower commutating period
24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 0
OWB9250 brushless DC blower Performance curves
24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 1
24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 2
24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 3
4: Overall dimensions
24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 4
5: Wiring diagram
24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 5

Pin 4 Red +5V
Pin 5 Purple Hall A
Pin 6 Green Hall B
Pin 7 Grey Hall C
Pin 8 Black GND
Pin 1 Yellow Motor phase A
Pin 2 Blue Motor phase B
Pin 3 White Motor phase C


6: Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.


24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 6

7: Brushless DC Air Blower Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment

 24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 7



Packing:

24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 824V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 9

Shipment:

24V Brushless DC Blower DC Centrifugal Blower For Ventilating Device 10



FAQ:

Can we connect this centrifugal air blower directly onto power source?

This blower fan is with BLDC motor inside and it needs a controller board to run.

What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.

How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.

What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.

Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.

Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.

What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan

How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
