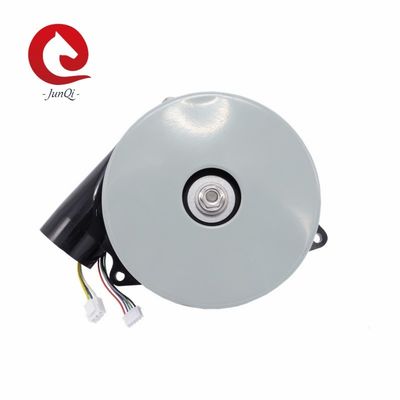

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise

  • Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise
  • Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise
  • Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise
  • Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise
Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: CE,Rohs
Model Number: OWB-1412-130
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per day
Contact Now
Detailed Product Description
Product Name: BLDC Blower Rated Voltage: 48VDC
Rated Current: 6.5A Motor Speed(open): 13000RPM
Motor Speed(closed): 16000rpm Driving Motor: 3 Phase Brushless DC Motor
Bearing: NMB Ball Bearing Air Pressure: 14.5Kpa
Noise: 85dBA Net Weight: 1500g
IP Grade: IP 54 Service Life: 10000 Hours
High Light:

6.5A Brushless DC Blower

,

13000RPM bldc Centrifugal Blower

,

16000rpm Brushless DC Blower



OWB1412 Series Brushless DC  air blower



48V DC air vacuum blower for vacuum cleaner,Air purifier,Hand dryer,
Air bubble machine , Ventilating device







 Brushless DC Air Blower Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment


2: Products Parameters

Model OWB1412-140 OWB1412-130
Rated Voltage 48VDC 48VDC
Rated current(open) 8A 6.5A
Air flow(open) 84M3/H 80M3/H
Motor Speed(open) 14000 RPM 13000RPM

Rated current(closed) 5.6A 3.7A
Air pressure(closed) 14.5kPa 12.5kPa
Motor Speed(closed) 16900 RPM 16000RPM

Motor pole 4 4
Phase Resistance 0.9 Ohm 1.0 Ohm
Noise 88 dBA 85 dBA
Ball Bearing NMB High-speed ball bearing
Driving motor 3 phase brushless DC motor
Hall sensor angle 120°
RPM-Pulse 1 Hz=30rpm/min
Winding type Delta
Winding withstand Voltage 500VDC (1 minute )
Insulation Class Class F
Blower weight 1500g
IP grade IP54
Operation temperature -20℃~ 50℃
Service life (under 40℃) 10000 hours











































3: Products performance


OWB1412 brushless DC vacuum blower commutating period

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 0



OWB1412 brushless DC blower Performance curves

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 1

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 2

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 3



4: Overall dimensions


Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 4


5: Wiring diagram
Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 5

Pin 4 Red +5V
Pin 5 Purple Hall A
Pin 6 Green Hall B
Pin 7 Grey Hall C
Pin 8 Black GND
Pin 1 Yellow Motor phase A
Pin 2 Blue Motor phase B
Pin 3 White Motor phase C


6: Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.






 Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 6

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 7

Packing:

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 8

Shipment:

Centrifugal Brushless DC Blower Aluminum Alloy Motor High Air Volume Low Noise 9



FAQ:

Can we connect this centrifugal air blower directly onto power source?

This blower fan is with BLDC motor inside and it needs a controller board to run.

What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.

How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.

What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.

Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.

Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.

What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan

How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
