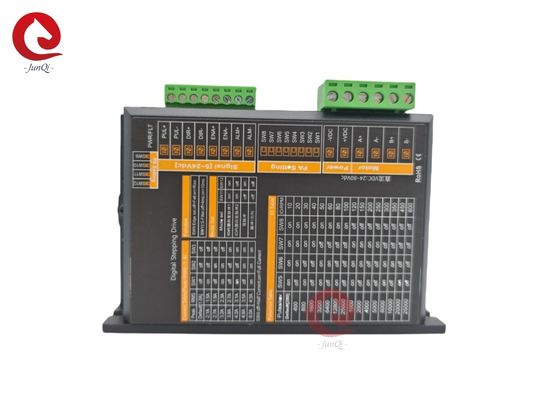

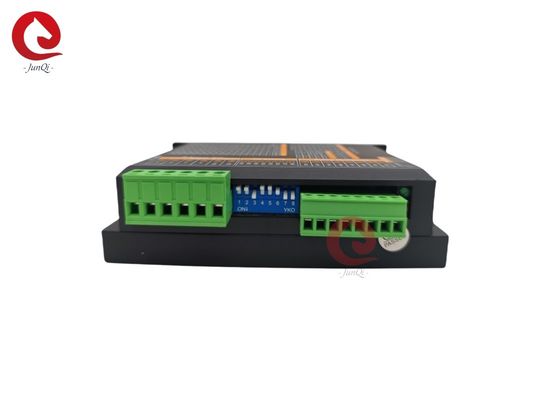

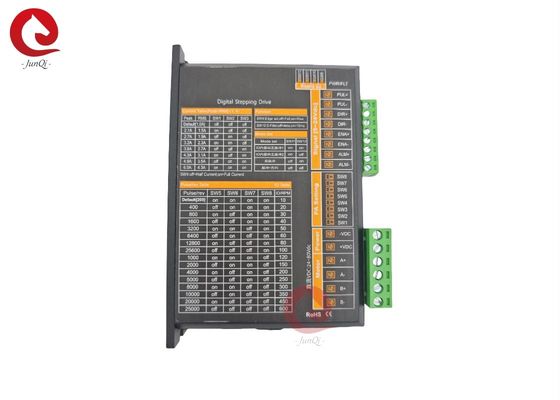

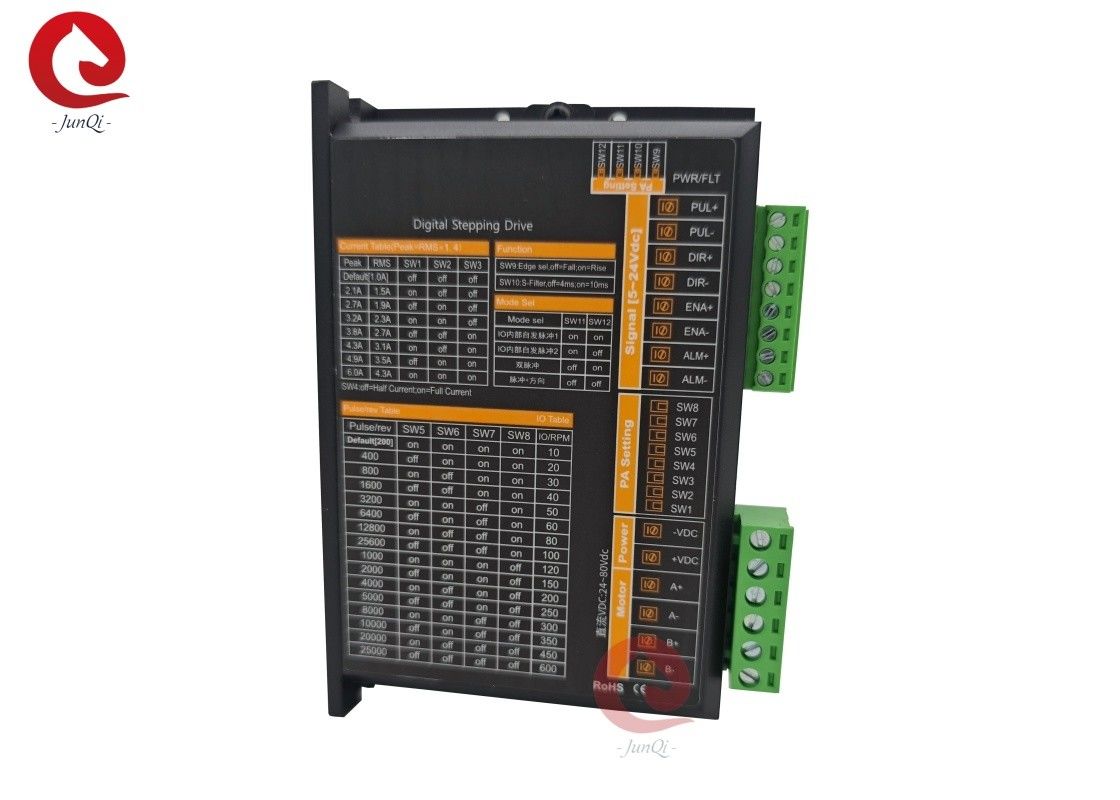

JQ6A 2Phase Stepper Motor Driver 24-80VDC 1-6A Stepper Motor Controller For Nema17 Nema 23 Nema34

Description:

JQ6Ais a new digital stepper motor driver introduced by our company. It adopts the latest 32-bit DSPdigital processing technology.The driver control algorithm adopts advanced variable current technology and advanced frequency conversion technology. The driver generates less heat and the motor vibrates less, smooth operation. USERS can set 200 ~ 51200 within the arbitrary subdivision and rated current within the arbitrary current value, to meet the needs of most applications. Due to the use of built-in micro-subdivision technology, even in the conditions of low subdivision, but also can achieve high subdivision effect, low, medium and high-speed operation is very smooth, ultra-low noise. The auto-tuning function is integrated in the driver, which can automatically generate the optimal operating parameters for different  motors and maximize the performance of the motors.

Features:

1. New 32 bit DSP Technology

2. Ultra-low vibration noise;

3. Built-in high subdivison;

4. Automatic parameter power-on setting function;

5. Variable current control greatly reduces the heat generation of the motor;

6. Can drive 4,6,8-wires 2-phase stepping motor;

7. Photoelectric isolation, alarm output;

8. Inpulse response frequency up to 500KHz ( factory default 200KHz);

9. Voltage range DC24-80VDC or AC20-60VAC;

10. The current setting is convenient and can be selected between 1.0-6.0A;

11. Sub-set range 200-51200, higher sub-customizeable;

12. It has the protection functions of overvoltage, low voltage, over current;

13. It has rising/falling edge, IO control spontaneous pulse, single/double pulse, high response/high seed and low vibration, self-measuring function.

Electrical Characteristics:

Mechanical Size:

Connections:

Current setting:

Pulse/rev Table:

Transportation:
