Technical Parameters:
| Item |

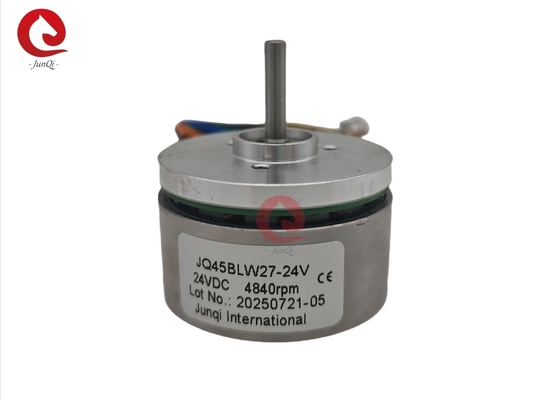

JQ45BLW27-24V |
| Rated voltage |
24VDC |
| Rated Torque |
130mN.m |
| No load speed |
6100±10% rpm |
| No load current |
＜0.5A |
| Rated Speed |
4840rpm |
| Rated Current |
3.26A |
| Peak Current |
9.5A |
| Peak Torque |
390mN.m |
| Back EMF |
2.75Vrms/kRPM |
| Number of Phase |
3 |
| Number of Poles |
16 |
| Line to Line Resistance |
0.56±10% ohms@20℃ |
| Line to Line Inductance |
0.27±20% mH@1kHz |
| Totor Inertia |
181g.cm² |
| Weight |
150g |
Motor Dimensions(mm):

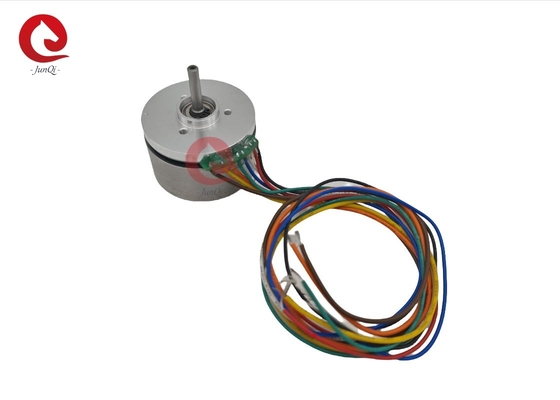

3-Phase and Hall lead wire connections:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Applications:
Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift
Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.
Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
Bank Equipment: ATM machine
New Energy: Solar Tracking System
Robotics: Telepresence Robot; Humanoid Robot; Lawn Mower Robot; Robot Arm.
Agriculture Machinery: Fertiliser Distribution System; Harvesting Machines; Hydraulic Equipment Replacement; Precision Seed Drills; Pruning Scissors; Robotic Milking Machines
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
