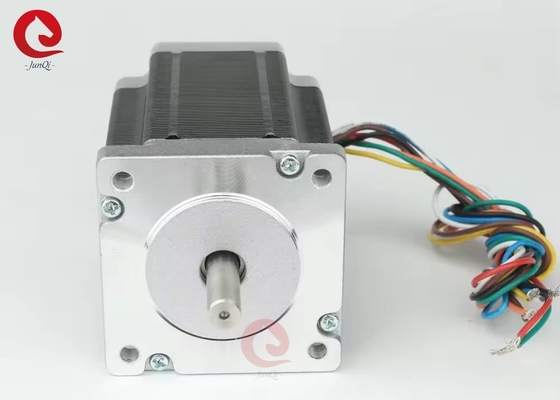

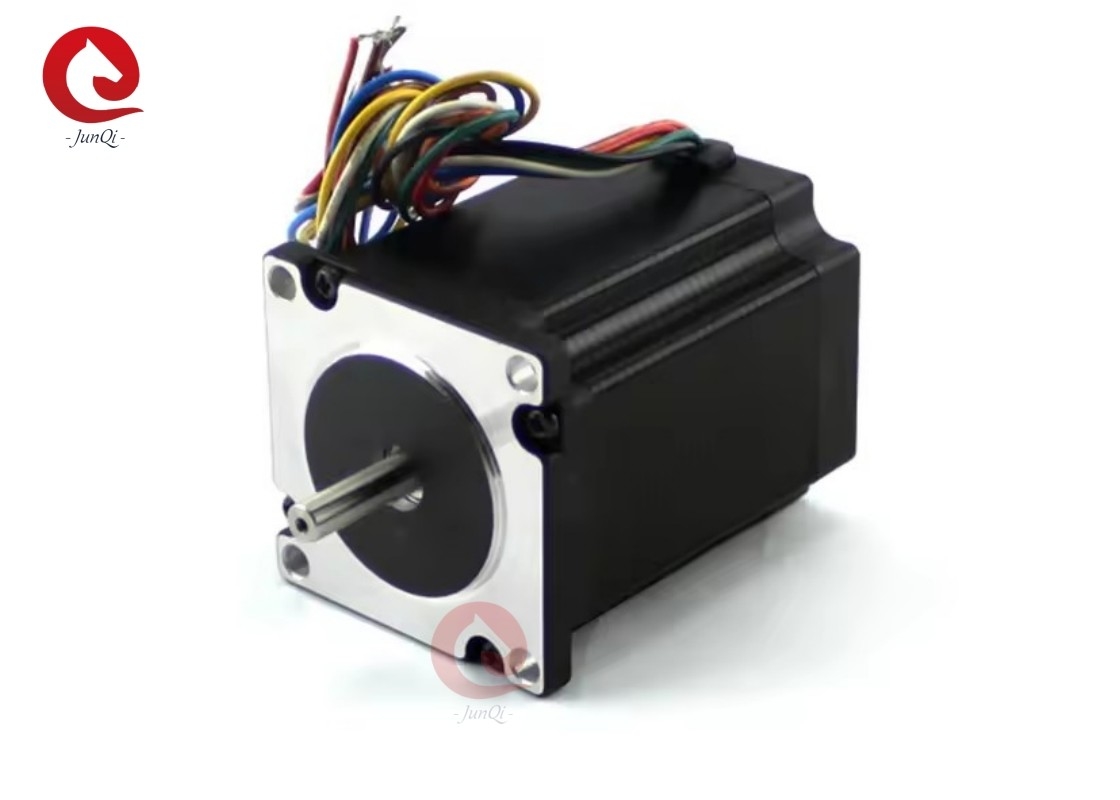

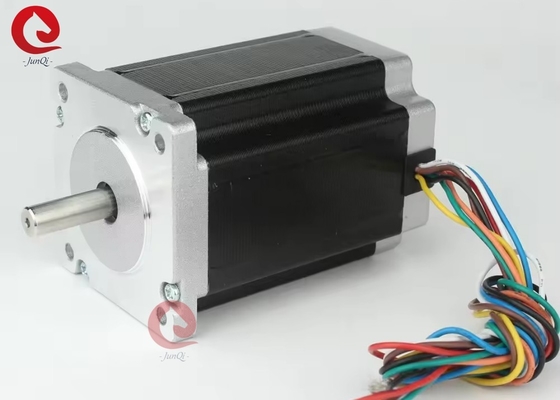

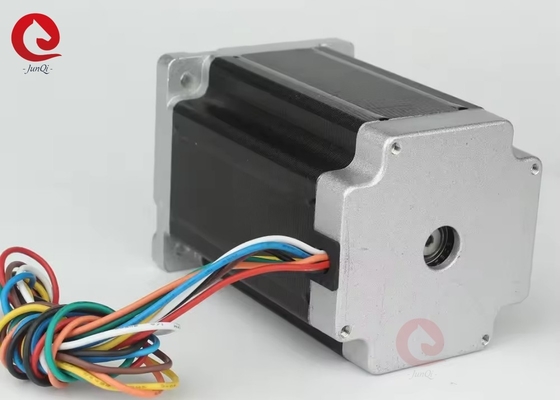

JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment

JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment

  • JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment
  • JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment
  • JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment
  • JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment
JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment
Product Details:
Place of Origin: China
Brand Name: JEUNKEI
Certification: RoHS,CE
Model Number: JQ60STH86-2008AF
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs ( sample available)
Price: USD20-USD40/PC
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T, , Western Union, Paypal
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Name: 60mm Stepper Motor Model No.: JQ60STH86-2008AF
Type: Hybrid Nema: 24
Step Angle: 1.8 Degree Size: 60mm
Current/Phase: 2.8A Holding Torque: 3.0N.m
Length: 88mm Weight: 1.4kg
Highlight:

Nema24 Hybrid Stepper Motor

,

2 Phase Hybrid Stepper Motor

,

1.8 degree Hybrid Stepper Motor



Description of the motor 60STH86:
1. High Performance: Our JQ60STH86-2008AF/1.8 degree 60mm 2phase Square hybrid stepper motor NEMA24 is designed for optimal performance, with a powerful motor and precision engineering to provide smooth and consistent motion. It is ideal for various industrial and automation applications.
2. High Torque: Our motor is equipped with a high torque feature that ensures efficient power transfer and strong endurance. It guarantees consistent performance even under heavy loads, making it suitable for demanding applications.
3. Environmentally Friendly: Our motor complies with CE, ISO, and RoHS certification, ensuring it meets stringent safety and quality standards. This makes it an environmentally friendly choice for conscious consumers and businesses.
4. Robust Construction: Designed with a square shape, the hybrid stepper motor is built to withstand harsh environments and heavy-duty applications. Its durable construction guarantees long-lasting performance and reliability.
5. Versatile Compatibility: The JQ60STH86-2008AF motor is compatible with a wide range of devices and systems, making it a versatile choice for various applications. It is suitable for use in automation equipment, robotics, 3D printing, and other industrial machinery.
General Specification:
Item Specification
Step Angle 1.8°
Step Angle Accuracy ±5%(full step, no load)
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 75N( 20mm from the flange)
Max.Axial Force 15N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B
Electrical Specifications:
Model

Current/

Phase

Resistance/

Phase

Inductance/

Phase

Holding

Torque

Detent

torque

#of

Leads

Rotor

Inertia

 Length Weight
Single shaft   A Ω mH N.m N.m # g-cm² mm kg

JQ60STH86-2008AF		 unipolar 2.0 3 6.8 2.1
0.12
8
840
88



1.4
parallel 2.8 1.5 6.8 3.0
series 1.4 6 27.2 3.0
Dimensions(mm):
JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment 0
Wiring Diagram:

JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment 1
Speed-Torque Curve:

JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment 2



Motor Application Fields:



Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift



Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.



Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.


Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.


Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System


Office Automation: Printer, 3D Printer


Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System

JQ60STH86-2008AF Nema24 2 Phase Hybrid Stepper Motor 1.8 degree High Torque3.0N.m For Textile Equipment 3





More information, please directly contact with us via email: ivanzhu@junqitrading.com
