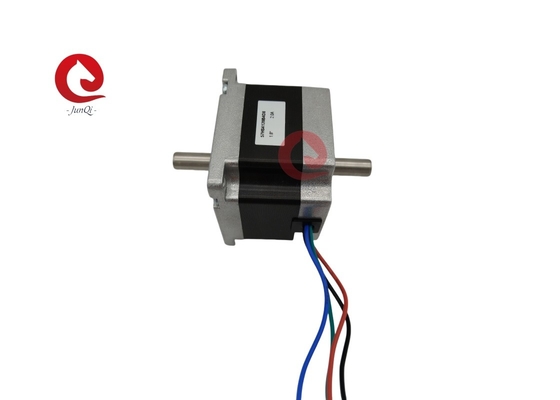

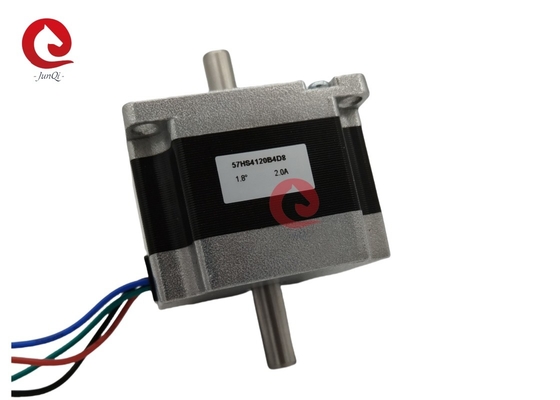

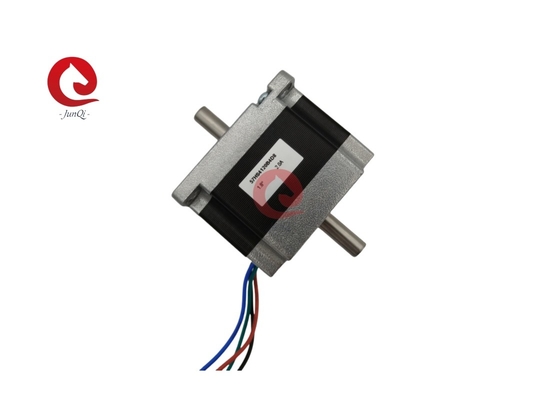

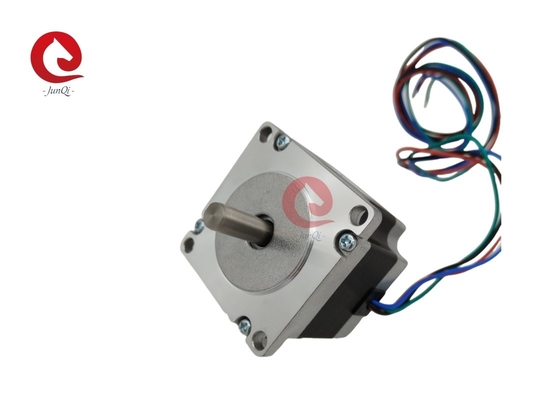

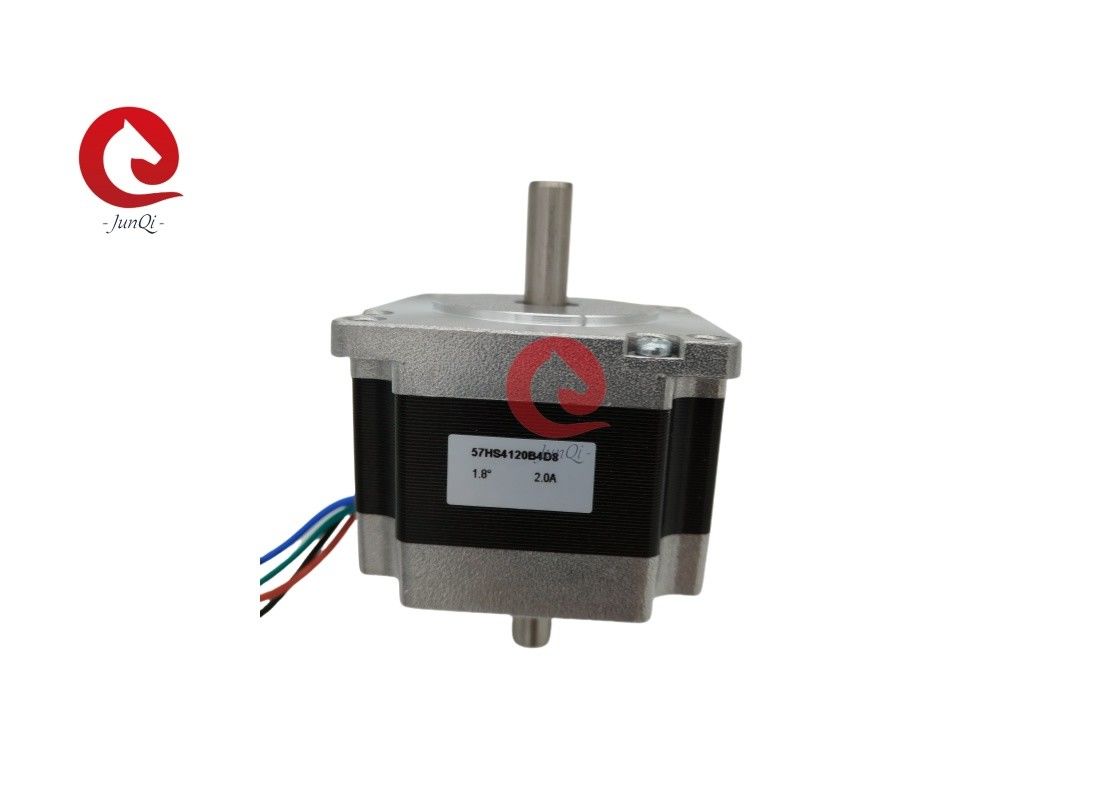

Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m

Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m

  • Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m
  • Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m
  • Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m
  • Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m
  • Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m
Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m
Product Details:
Place of Origin: China
Brand Name: JEUNKEI
Certification: TS16949,ISO9001, ISO14001,CE, ISO14001
Model Number: 57HS4120B4/B4D8
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs ( sample available)
Price: USD10-USD9/PC
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T, , Western Union, Paypal
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Model No.: 57HS4120B4 Type: 2 Phase Stepper Motor
Step Angle: 1.8° Voltage: 2.4V/Phase
Current: 2A/Phase Holding Torque: 0.55N.m
Warranty: 12 Months Lead Wire: 4
Weithg: 470g
High Light:

TS16949 car door lock replacement

,

TS16949 auto door lock repair

,

CE car door lock replacement

Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m





 General Specifications:



Step Angle Accuracy ±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin. 500V DC
Dielectric Strength 500VAC 1minute



Electrical Specification:



Model Step Angle(°) Rated Current (A)

Phase Resistance

(Ω)

PhaseInductance

(mH)

Holding Torque (N.m) Detent Torque (N.m) Rotor Inertia (g.cm2) Motor Length (mm) Lead wire ( No.) Motor Weitht(g)
57HS4120B4 1.8 2 1.2 2.5 0.55 2.5 150 41 4 470
57HS4120B4D8 1.8 2 1.3 3.3 0.7 2.6 68 41 4 450



Mechanical Dimensions:



57HS4120B4

Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m 0



57HS4120BD8

Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m 1



Wiring Diagram:

Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m 2

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

Junqi Nema23 Dual Shaft Stepper Motor 57HS4120B4/ B4D8 Holing Torque 0.55N.m/0.7N.m 3



FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality
