M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver

M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver

  • M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver
  • M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver
  • M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver
  • M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver
M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver
Product Details:
Place of Origin: China
Brand Name: JEUNKEI
Certification: TS16949,ISO9001, ISO14001,CE, ISO14001
Model Number: M545D(CW5045)
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs ( sample available)
Price: USD25-USD20/PC
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T, , Western Union, Paypal
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Model No.: M545D Type: 2 Phase Stepper Driver
Fit Motor: Nema 23/34 Voltage Range: 24V-50VDC
Current Range: 1.5-4.5A Dimensions: 118*75*33mm
Warranty: 12 Months OEM: Available
MOQ: 2pcs
Highlight:

Microstep Stepping Motor Driver

,

2 Phase Stepping Motor Driver

,

Nema 23/34 Stepping Motor Driver

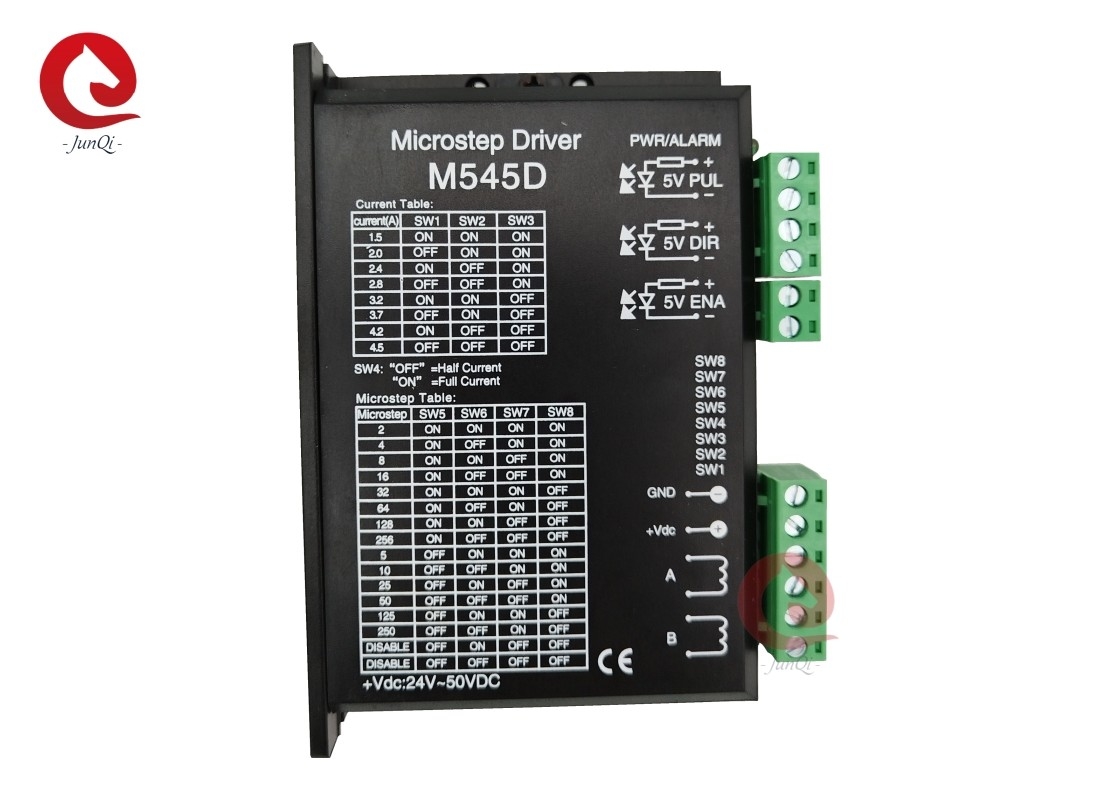

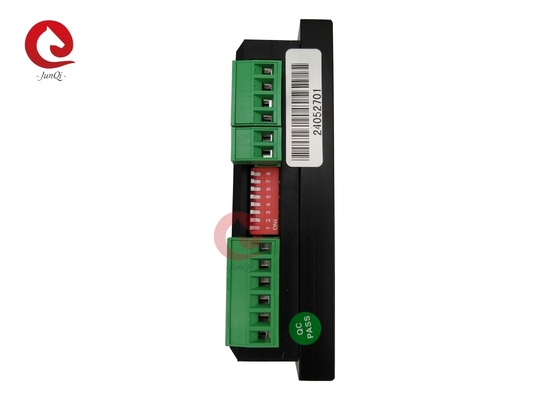

M545D (CW5045 updated version) 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver





Production Description:



The DM545D is a new generation microstep stepper motor driver. Due to the adoption of the advanced bipolar constant current chopper driver technology, it shows stable operation, provides excellent high torque. Moreover, it significantly reduces the noises and vibration of the operating motor.



Features:



1. Adoption of the advanced bipolar constant-current chopper driver technology
2. Low-noise, low-vibration and low temperature rising(with fan)
3. Voltage 18-50VDC
4. With 8 stalls output current setting, peak current 4.5A
5. With16 stalls microstep subdivisionsetting
6. Automatic half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequencyresponse 200KHZ.
8. Suitable for current range 1.5-4.5A nema23, nema34 2,4-phase Hybird stepper motor



Current Selection:



Peak RMS SW1 SW2 SW3
1.5A 1.07A on on on
2.0A 1.43A off on on
2.4A 1.72A on off on
2.8A 2.00A off off on
3.2A 2.28A on on off
3.7A 2.64A off on off
4.2A 3.00A on off off
4.5A 3.21A off off off



Microstep Selection:



Pulse/Rev SW5 SW6 SW7 SW8
400 on on on on
800 on off on on
1600 on on off on
3200 on off off on
6400 on on on off
12800 on off on off
25600 on on off off
51200 on off off off
1000 off on on on
2000 off off on on
5000 off on of on
10000 off off off on
25000 off on on off
50000 off off on off



Mechanical Dimension(mm):

M545D CW5045 updated version 18-50VDC 1.5-4.5A 1/256 Microstep Stepping Motor Driver 0



Driver Applications:



It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.
