| Place of Origin: | China |
| Brand Name: | JUNQI |
| Certification: | CE, ROHS |
| Model Number: | JY02A |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | PE bag+Carton |
| Delivery Time: | as confirmed |
| Payment Terms: | T/T, paypal |
| Supply Ability: | 1000 set per month |
| Working Voltage: | 4.5v-5.5v | Drive Mode: | SPWM |
|---|---|---|---|
| Working Temperature: | -55℃~125℃ | Direction Control: | CW/CCW |
| Soft Reversing: | Yes | Speed Signal: | Yes |
| Blocking Protection: | Yes | Adaptive Motor: | Sensorless BLDC Motor |
| Highlight: | JY02A BLDC Motor Driver IC,JY02 BLDC Motor Driver IC,SSOP-20 IC Chip |
||

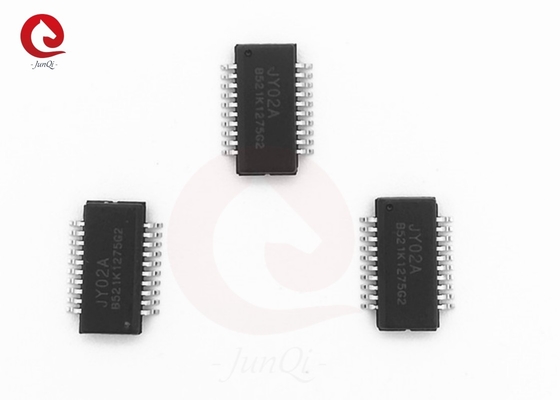

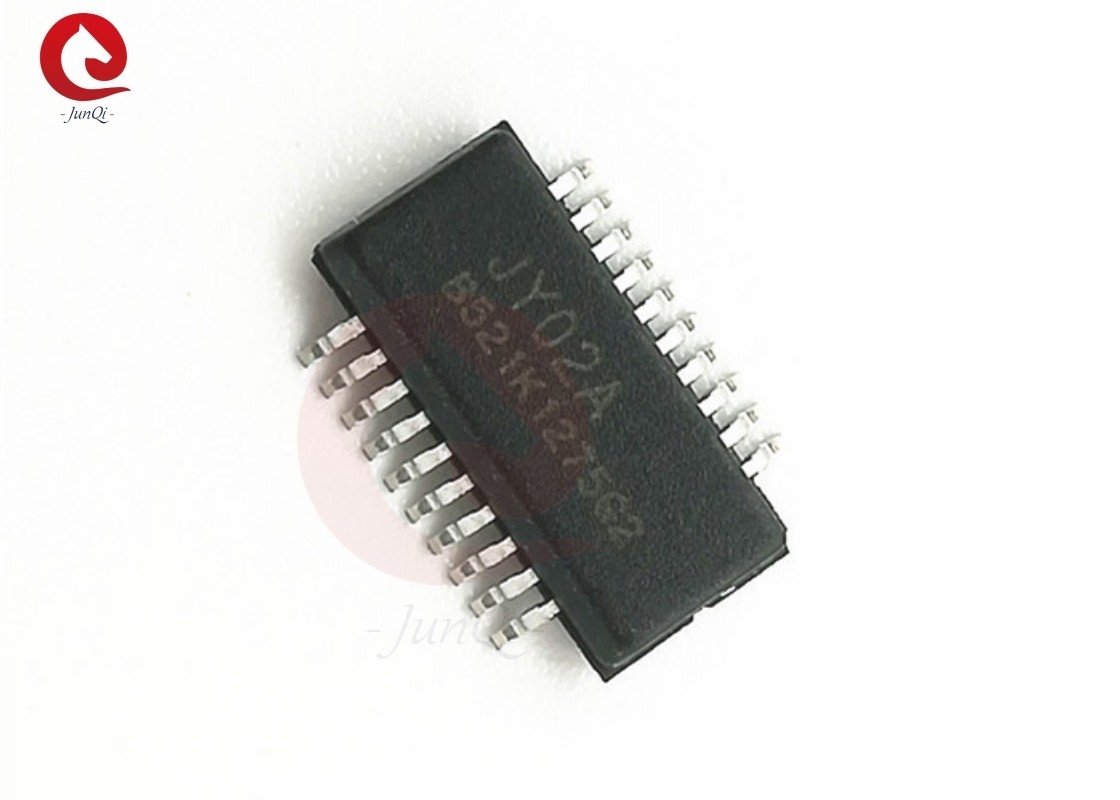

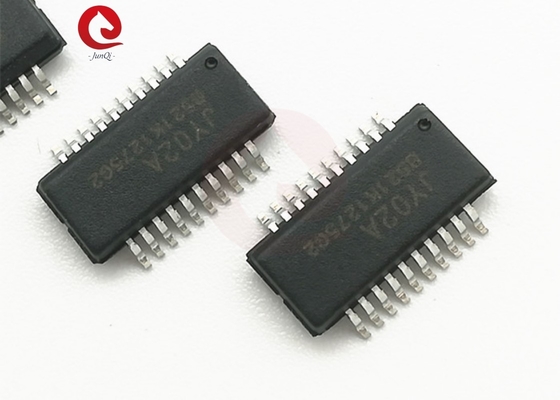

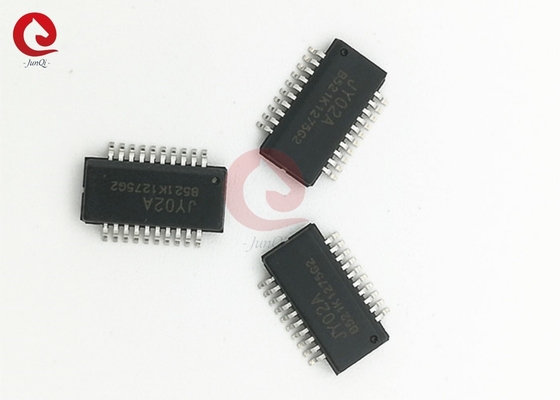

JY02A JY02 SSOP-20 IC Chip Control IC For Sensorless BLDC Motor , With PWM Control. JUYI Original Control IC
| Symbol | Min | Typical | Max | Unit | Condition |
| VDD | 4.5 | 5 | 5.5 | V | VDD-GND |
| IDD | 9 | mA | All output pins are disconnected | ||
| VIL | 0.3 | V | IO input low level value | ||
| VIH | 3.5 | V | IO input high level value | ||
| EMFV | 0.01 | 4.5 | V | BEMF effective voltage | |
| VFOV | 0 | 2.5 | V | Range of starting torque voltage | |
| IOL | 10 | mA | IO low level suction current | ||
| IOH | 5 | mA | IO high level output current | ||
| VODL | 0.75 | 0.8 | 0.85 | V | Undervoltage protection value |
| VODH | 2.95 | 3 | 3.05 | V | Overvoltage protection value |
| RPT | 3 | S | Soft start time | ||
| ISVA | 38 | 40 | 43 | mV | Constant current driveing is limit value |
| ISVB | 87 | 90 | 95 | mV | Overcurrent fast protection value |
| Vjd | 0 | 5 | V | Analog input voltage range | |
| Ijd | 100 | nA | Analog input current value |
JY02A Typical Application Schematic for sensorless brushless DC motor:
JY02A has built-in BEMF detection circuit
JY02A no need external comparator circuit for sensorless brushless DC motor.
