Model: | JY01/JY01A | Name: | Integrated Circult |
---|---|---|---|
Working Voltage: | 4.5~5.5V | Working Temperature: | -40℃~85℃ |
Drive Mode: | SPWM | Blocking Protection: | Yes |
Speed Adjustment: | Linear | Adaptive Motor: | BLDC Motor With Hall Sensor/ Without Hall Sensor |
Highlight: | 3Phase BLDC Motor Driver IC,Brushless DC Motor Driver Ic,Sensorless BLDC Motor Driver Ic |

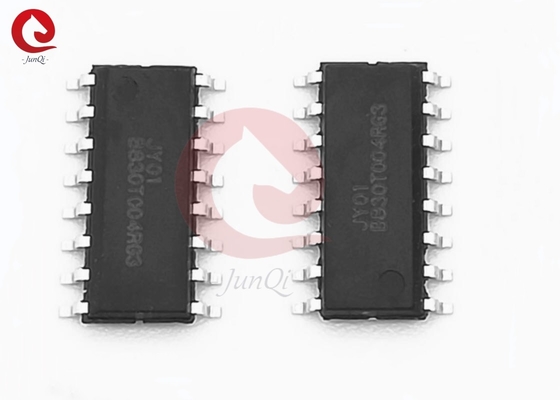

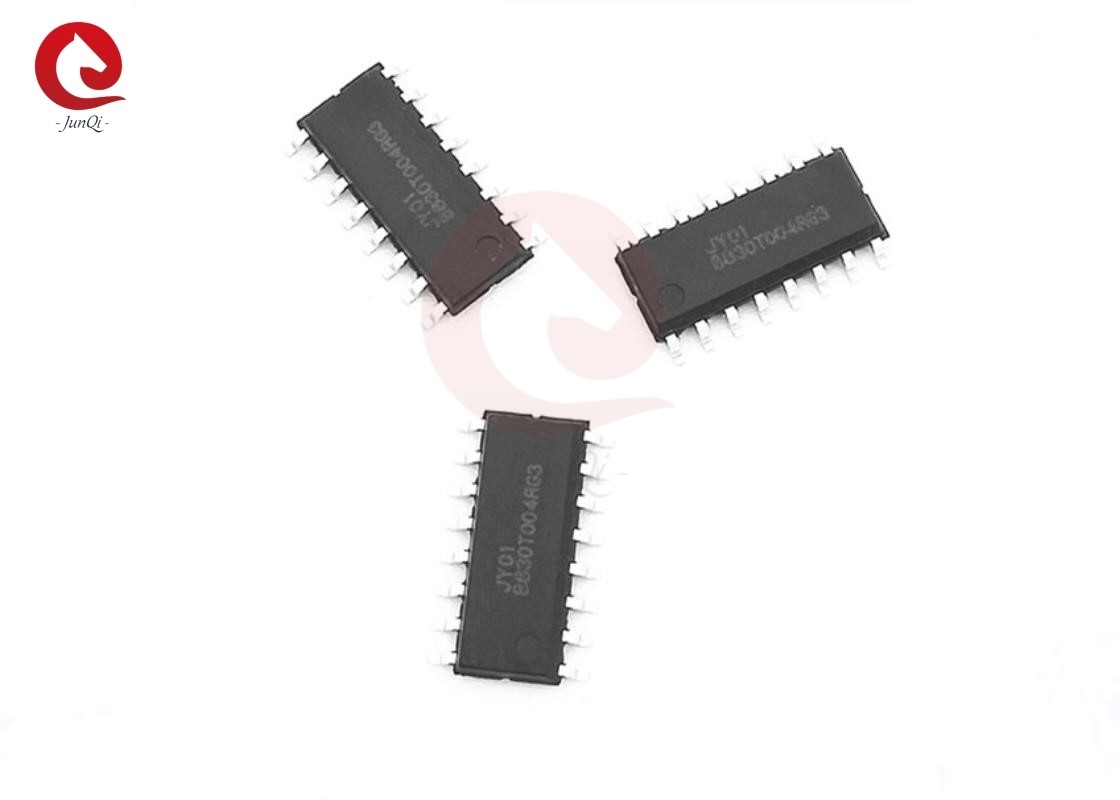

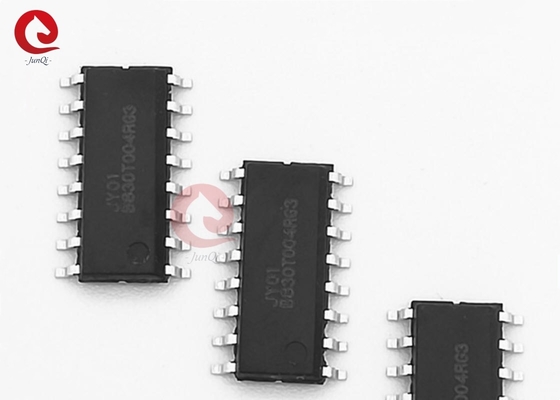

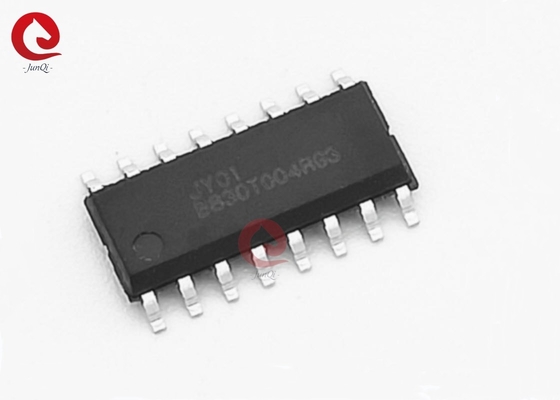

JY01 3 phase brushless dc motor driver IC for Hall sensor BLDC motor or sensorless BLDC motor
JY01 features
JY01 is special designed control IC for brushless DC motor driver, applied to Hall sensor BLDC motor or sensorless BLDC motor, its easy to application, peripheral circuit is simple, low costs, SPWM drive modewith low noise, high efficiency, stable quality and professional technical support,JY01 has been quickly approved by many electronic engineers.
JY01 has been widely used in many fields, such as:
brushless DC fan, brushless DC pump, lawn mower, scooter,balanced car, robot, scientific instruments and equipment,auto fuel pump, electric Windows, electric seat adjustment,air-conditioning fan, electric rearview mirror adjustment,such as home appliances such as vacuum cleaners, air conditioning, plumbing equipment, high-end children's toys, model aircraft, model cars, model, etc.; It has also been widely used in handheld tools such as grinding machines, hand drills, engraving machines, electric screwdrivers, etc
2:Characteristics
Working voltage: 4.5 v-5.5 V.
Working temperature: -40-85 ℃
Drive mode: SPWM
Daul drive mode : With Hall senor or sensorless
Adaptive motor: no hall motor/hall motor.
Steering control: positive/negative
Soft reversing: Yes
Speed signal: Yes
Overload protection: Yes
Current closed loop: Yes
Constant current drive: Yes
Blocking protection: Yes
Soft starting: yes
Special technology: JYKJ full condition safety start function
Speed adjustment: linear
Soft start period:1 S,3 S,10S optional
SOP16 packaging
JY01 is integrated 2 in 1 control IC for Hall or sensorless brushless DC motor, which makes it very easy to
application in use, please pay attention before circuit design and application.
1: JY01 for Hall sensor motor driver, connect Pin 1 to Vss or connect 5V while power on, JY01 will drive as Hall way.
2: JY01 for Sensorless motor driver, offer 0.1V -4V to Pin 1, JY01 will drive as Sensorless way.
Pin 1 is multi-function pin, there are three operational states:
1: JY01 in application settings when power on.
2: This pin is a Enable control pin under Hall way,High-level voltage is normal drive,Low-level voltage is
forbidden-drive (no output)
3: This pin is Start torque adjustment pin under Sensorless way,voltage range:0.1V-2V.
Please confirm the application state of JY01 before the design.
