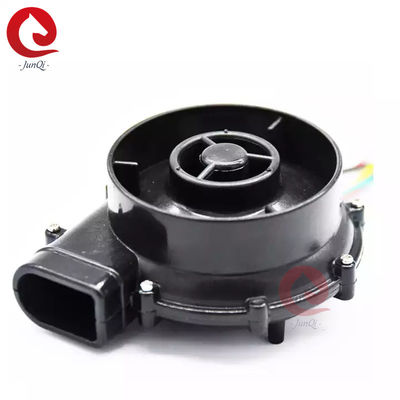

75W 6.5Kpa 380L/Min Brushless DC Air Blower Sleep Ventilator Environment Detector

Name: 75W 6.5Kpa 380L/Min Brushless DC Air Blower Sleep Ventilator Environment Detector
Brand: junqi
SKU: OWB8040
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (194 reviews)

Product Details:

Place of Origin:	China
Brand Name:	junqi
Certification:	CE,Rohs
Model Number:	OWB8040

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton+packing foams
Delivery Time:	5-30days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	BLDC Air Blower	Rated Voltage:	12V
Motor Speed(open):	25500RPM	Driving Motor:	3 Phase Brushless DC Motor
Bearing:	NSK Ball Bearing	Max Pressure:	5.5Kpa
Noise:	45dB(1Kpa-1m)	Net Weight:	105g
IP Grade:	IP 54	Service Life:	10000 Hours
Materials:	PA66+GF	Usage:	Air Cushion Machine, Cooling Equipment, Medical Device
Power:	75w	Size:	868040mm
Max Flow:	380L/min
High Light:	380L/Min Brushless DC Air Blower , 6.5Kpa Brushless DC Air Blower

12V/24V 75W Security Mask Blower OWB8040 6.5Kpa-380L/min Brushless DC Air Blower Sleep ventilator environment detector

Brushless DC Micro Air Blower :

1. PA66+30GF Plastic impeller and casing (UL and ISO10993).

2. All air-contacting parts are respiratory-physiologically harmless

3. Power supply: 12V-6A, 24V-4A

2: Blower Technical Parameters

Model	OWB8040-12V		OWB8040-24V
Rated Voltage	12VDC		24VDC
Rated current	5A		3A
Rated Speed	25500rpm		34000rpm
Rated Power	75W		75W
Max Air Flow	380L/min		380L/min
Max Presure	5.5Kpa		6.5kpa

Motor pole	2P=1		2P=1
Rotor inertia	4.78gcm²		4.78gcm²
Noise	45 dB (1Kpa-1m)		45 dB(1Kpa-1m)
Working temperature arrange	-20~85℃
Hall Angle	60°
Winding type	△		Y
MTBF	20000 Hours
IP Class	IP54
Bearing	NSK Ball Bearing
Blower weight	105 g
Materials	PA66+30%GF Plastic impeller and casing (UL and ISO10993), All air-contacting parts are respiratory-physiologically harmless
Matched Driver	BLDC8524-12V	BLDC8524-24V

3: Micro DC Air Blower performance

OWB8040 brushless DC blower Performance curve

4: Overall dimensions

75W 6.5Kpa 380L/Min Brushless DC Air Blower Sleep Ventilator Environment Detector 1
5: Wiring diagram

Pin 1	White	U
Pin 2	Blue	V
Pin 3	Yellow	W
Pin 4	Black	GND
Pin 5	Gray	Ha
Pin 6	Green	Hb
Pin 7	Orange	Hc
Pin 8	Red	+5V

6: Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.

Applications:

75W 6.5Kpa 380L/Min Brushless DC Air Blower Sleep Ventilator Environment Detector 3

FAQ:

Q1. What is your terms of 24VDC blower with 9.5kpa pressure and 580/min air flow packing?
A: Generally, we pack our 24V high pressure brushless dc blower in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T in advance. We'll show you the photos of the products and packages
before shipment.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your 24VDC blower with 9.5kpa pressure and 580/min air flow sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
