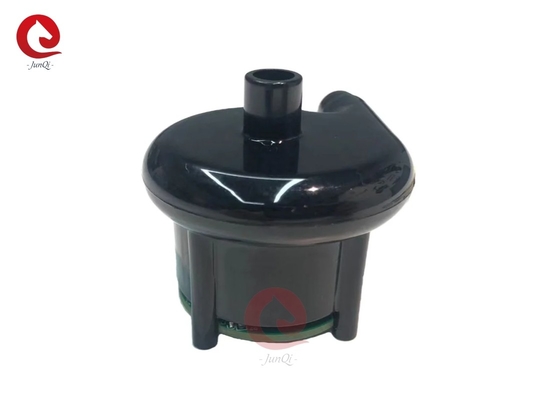

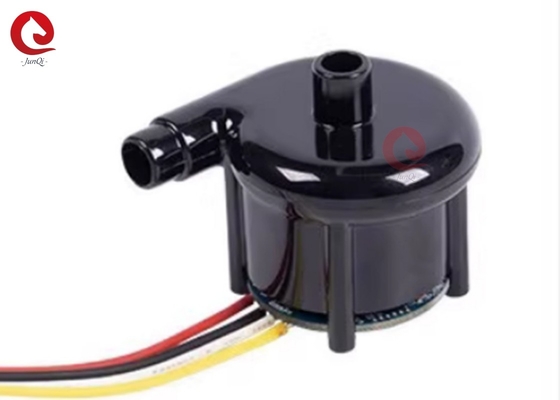

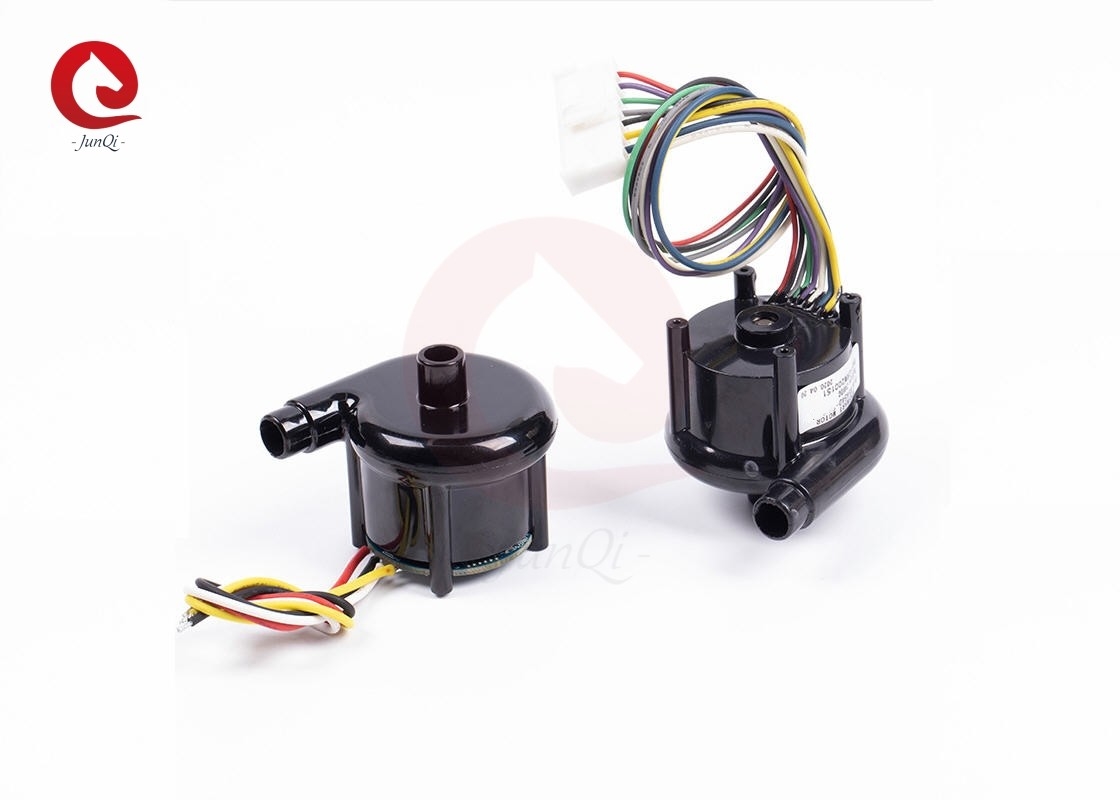

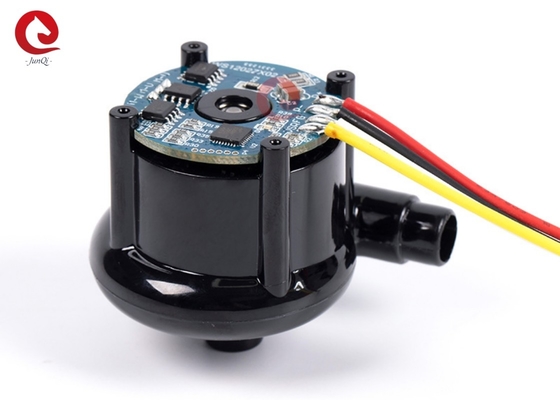

12V mini size big airflow centrifugal dc brushless blower with stable performance

12V mini size big airflow centrifugal dc brushless blower with stable performance

  • 12V mini size big airflow centrifugal dc brushless blower with stable performance
  • 12V mini size big airflow centrifugal dc brushless blower with stable performance
  • 12V mini size big airflow centrifugal dc brushless blower with stable performance
  • 12V mini size big airflow centrifugal dc brushless blower with stable performance
12V mini size big airflow centrifugal dc brushless blower with stable performance
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: CE,Rohs
Model Number: OWB4540-12V
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD35.5~ USD26.5
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per day
Contact Now
Detailed Product Description
Product Name: BLDC Blower Rated Voltage: 12VDC
Rated Current: 1.1A (Outlet Sealed) Motor Speed(open): 44000RPM(Outlet Sealed)
Driving Motor: 3 Phase Brushless DC Motor Bearing: NMB Ball Bearing
Air Pressure: 6Kpa (Outlet Sealed) Noise: 65dBA
Net Weight: 85g IP Grade: IP 54
Service Life: 10000 Hours



OWB4540 Series Brushless DC  air blower











1: Brushless DC Air Blower Features:
1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise

2: High pressure and airflow output by compact size design

3: High efficiency, much more efficient than brush motor blower

4: High reliability, specialized controller make the working more reliable

5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling


2: Products Parameters



Model OWB4540-12V OWB4540-12V
Rated Voltage 12VDC 24VDC
Outlet Open
Current 1.9A 0.5A
Rated Speed 37500rpm 42000rpm
Air Flow 8.5m³/h 7m³/h
Outlet Sealed
Current 1.1A 0.5A
Speed 44000rpm 45000rpm
Air Pressure 6.0Kpa 4.5Kpa
Resistance-Phase to phase 0.42~0.52 Ohm 0.42~0.52 Ohm
Induction-Phase to phase 0.13~0.17mH 0.13~0.17mH
Motor Pole pairs 1 1
Noise 65dB(A) 65dB(A)
Blower Fan Motor Parameters
Motor Type Three Phase Brushless DC Motor
Bearing Type NMB Ball Bearing
Insulation Class Class F
Protect Class IP54
Operating Temperature range -20℃~+60℃(No Condensation)
Hall Effect Sensor NO/
Speed@hall sensor frequency 1Hz=60r/min
Service Life MTTF(25℃ Rated Operation Point) 10000 hours
Weight 85g
Matched Driver Integrated



3: Products performance


12V mini size big airflow centrifugal dc brushless blower with stable performance 012V mini size big airflow centrifugal dc brushless blower with stable performance 1

4: Overall dimensions

12V mini size big airflow centrifugal dc brushless blower with stable performance 2





5: Attentions


1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.



7: Brushless DC Air Blower Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment

 12V mini size big airflow centrifugal dc brushless blower with stable performance 3

Packing:

12V mini size big airflow centrifugal dc brushless blower with stable performance 4



FAQ:

Can we connect this centrifugal air blower directly onto power source?

This blower fan is with BLDC motor inside and it needs a controller board to run.

What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.

How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.

What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.

Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.

Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.

What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan

How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
