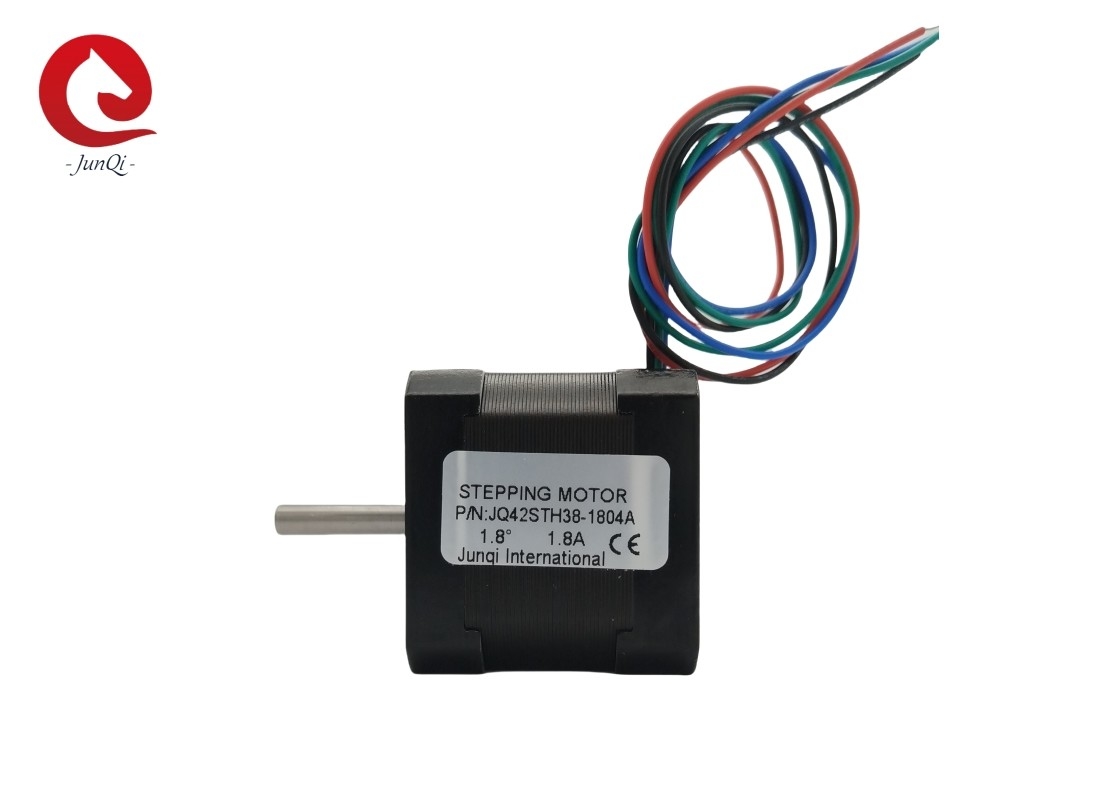

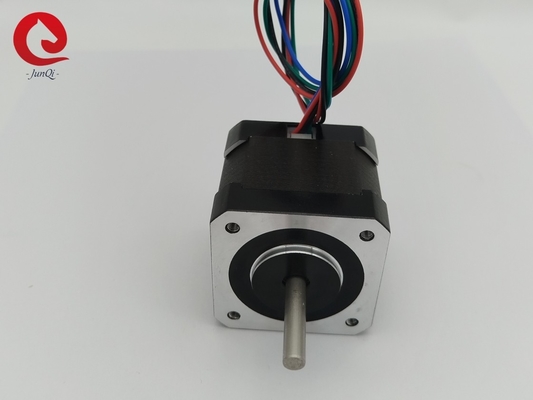

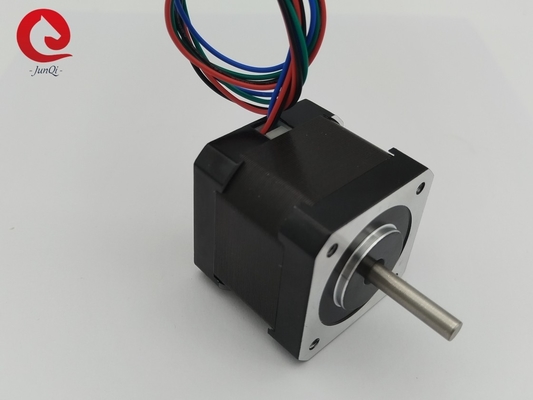

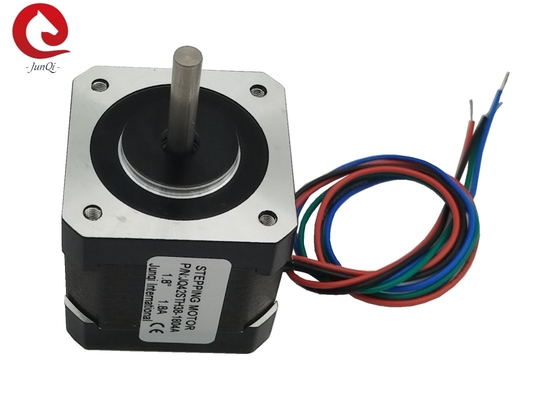

JQ42STH38-1804A 4-Lead Nema17 Stepper Motor 38mm Length 1.8A 0.4Nm For CNC Laser and 3D Printer

Product Details:

Place of Origin:	China
Brand Name:	JEUNKEI
Certification:	CE
Model Number:	JQ42STH38-1804A( JQ42HS38-1804A)

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs ( sample available)
Price:	4-9usd
Packaging Details:	CTN
Payment Terms:	T/T, paypal
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Phase:	2 Phase	Step Angle:	1.8°
Current/Phase:	1.8A	Holding Torque:	0.4N.m
Shaft Dia:	5mm	Color:	Black
Shaft Type:	Single Shaft	Shape:	Square
Highlight:	38mm Nema17 Stepper Motor , CNC Nema17 Stepper Motor , 38mm Length Nema17 Stepper Motor

JQ42STH38-1804A 4-Lead Nema17 Stepper Motor 38mm Length 1.8A 0.4Nm For CNC Laser and 3D Printer

Motor Specification:

Number of Phase	2
Step Angle(°)	1.8
Current/Phase (A)	1.8
Resistance/Phase (ohms @20℃)	1.34±15%
Inductance/Phase (mH@1KHz)	2.8±20%
Holding Torque (Nm)	0.4
Detent Torque (N.m)	0.015
Dielectric Strength	AC500V/1min/5mA Max.
Insulation Class	B (130℃) 80K Max.
Weight	0.28

Motor Dimension:

JQ42STH38-1804A 4-Lead Nema17 Stepper Motor 38mm Length 1.8A 0.4Nm For CNC Laser and 3D Printer 0

Exciting Sequence vs Direction of Rotation:

JQ42STH38-1804A 4-Lead Nema17 Stepper Motor 38mm Length 1.8A 0.4Nm For CNC Laser and 3D Printer 1

Wiring Diagram:

Motor Description:

JQ42STH38-1804A 4-Lead Nema17 Stepper Motor 38mm Length 1.8A 0.4Nm For CNC Laser and 3D Printer 3

Applications:

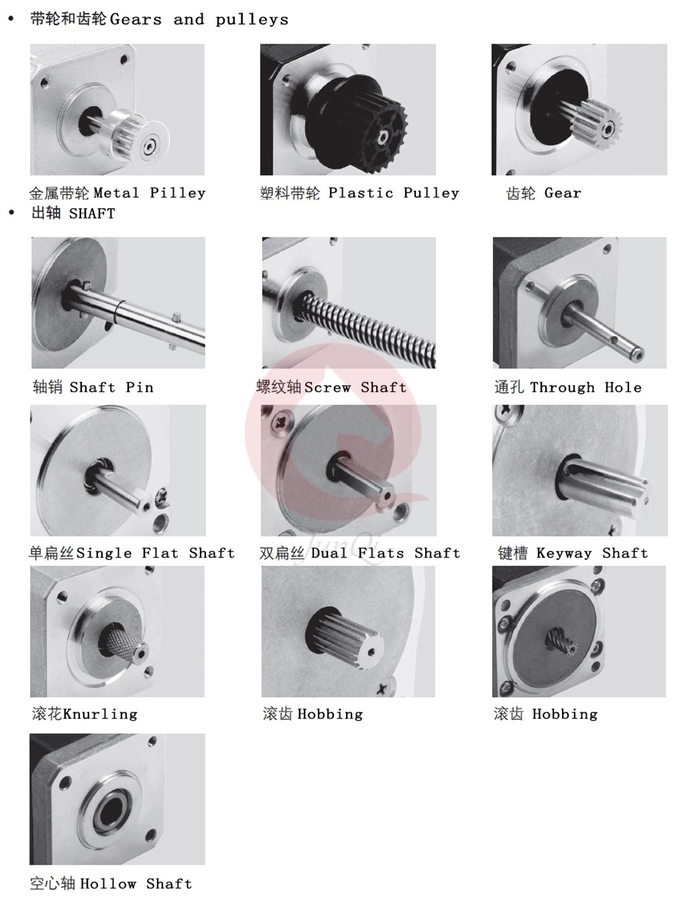

We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....
