| Place of Origin: | China |
| Brand Name: | Junqi |
| Certification: | CE,ROHS, UL |
| Model Number: | JQM-22RP180 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T, Western Union,PAYPAL |
| Supply Ability: | 10000PCS/Month |

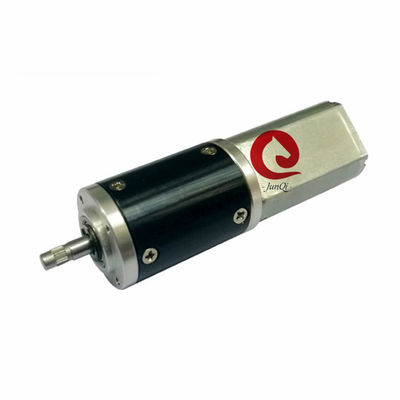

| Product Name: | DC Gear Motor | Model: | JQM-22RP180 |
|---|---|---|---|
| Voltage: | 3-24V | Driving Motor Speed: | 5000-9000rpm |
| Gear Motor Speed: | 2~2250rpm | Gearbox Size: | 18mm Round |
| Output Torque: | 0.05~3.5kg.cm | Gear Style: | Metal Gear |
| Application: | Home Appliance, Robotic |
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| JQM-1800055000 | 5 | ≤75 | 5000 | ≤158 | 4000 | 19 | 0.8 | ≥85 | ≥790 |
| JQM-1800128000 | 12 | ≤35 | 8000 | ≤300 | 6200 | 26 | 1.69 | ≥104 | ≥770 |
| JQM-1800249000 | 24 | ≤36 | 9000 | ≤120 | 7600 | 15 | 1.17 | ≥86 | ≥470 |
Technical Data of Gearbox:
| Reduction | 1 | 2 | 3 | 4 | 5 |
| Reduction Ratio | 4k,4.75k |
16k,19k, 22.5k |
64k,76k, 90k,107k |
256k,304k,361k, 428k,509k |
1024k,1216k,1444k, 1714k,2036k,2418k |
| Gearbox Length"L"mm | 13.5 | 16.9 | 20.5 | 24.1 | 27.6 |
| Gearbox Efficiency | 90% | 81% | 73% | 65% | 59% |
Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| JQM-22RP1800067500-256K | 6V | 39 | 150 | 22 | 480 | 3 | 0.7 | 1200 | 10 |
| JQM-22RP1800068000-361K | 6V | 22 | 200 | 16 | 550 | 4 | 0.7 | 1100 | 13 |
| JQM-22RP1800067000-509K | 6V | 13 | 260 | 8.5 | 500 | 4 | 0.3 | 830 | 10.7 |
| JQM-22RP1800063000-2418K | 6V | 1.2 | 60 | 0.8 | 90 | 4 | 0.03 | 220 | 11 |
| JQM-22RP18000912000-107K | 9V | 112 | 260 | 82 | 800 | 2.2 | 1.9 | 1920 | 8.2 |
| JQM-22RP1800128000-4.75K | 12V | 1550 | 160 | 1130 | 420 | 0.1 | 1.2 | 800 | 0.3 |
| JQM-22RP1800128000-16K | 12V | 500 | 140 | 360 | 380 | 0.32 | 1.2 | 760 | 1 |
| JQM-22RP1800126000-19K | 12V | 315 | 80 | 244 | 200 | 0.23 | 0.6 | 430 | 0.9 |
| JQM-22RP1800128000-107K | 12V | 75 | 120 | 56 | 320 | 1.8 | 1.0 | 720 | 6.9 |
| JQM-22RP1800126000-256K | 12V | 24 | 70 | 19.5 | 180 | 1.7 | 0.3 | 450 | 7 |
| JQM-22RP1800128000-304K | 12V | 26 | 75 | 20.5 | 250 | 3.1 | 0.7 | 700 | 12.5 |
| JQM-22RP1800126000-369K | 12V | 18 | 65 | 14 | 180 | 2.5 | 0.4 | 400 | 9 |
| JQM-22RP1800128000-428K | 12V | 18 | 75 | 15 | 250 | 4.8 | 0.7 | 700 | 18.5 |
| JQM-22RP1800129000-509K | 12V | 17 | 200 | 12 | 350 | 5.5 | 0.7 | 580 | 18 |
| JQM-22RP1800128000-2418K | 12V | 3.3 | 120 | 2.4 | 400 | 10 | 0.2 | 692 | 40 |
| JQM-22RP1800247000-4K | 24V | 1750 | 60 | 1310 | 120 | 0.05 | 0.7 | 225 | 0.18 |
| JQM-22RP1800249000-64K | 24V | 140 | 200 | 105 | 350 | 1 | 1.1 | 470 | 4 |
| JQM-22RP1800249000-107K | 24V | 84 | 70 | 63 | 200 | 2 | 1.3 | 450 | 8 |
| JQM-22RP1800249000-256K | 24V | 35 | 80 | 25 | 210 | 4.2 | 1.1 | 450 | 15 |
| JQM-22RP1800249000-304K | 24V | 29 | 60 | 22 | 180 | 5 | 1.1 | 430 | 20 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
Our motor products contain range:
