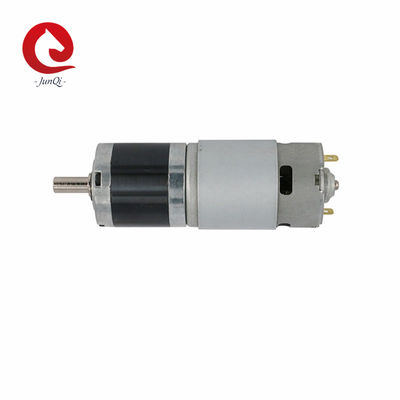

JQM-42RP775 12V 42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer

JQM-42RP775 12V 42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer

  • JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer
  • JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer
  • JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer
  • JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer
JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-42RP775
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD20-usd25/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Model: JQM-42RP775
Voltage: 12-24V Driving Motor Speed: 3000-6000rpm
Gear Motor Speed: 5~1100rpm Gearbox Size: 42mm Planetary Gearbox
Output Torque: 3.5~100kg.cm Gear Style: Metal Gear
Application: Home Appliance, Robotic, Electric Bicycle

JQM-42RP775 12V 42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer

JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer 0



Technical Data of Gearbox:



Reduction 1 2 3 4
Reduction Ratio 3.7k,5K

13K,18K,25K

49K,67K,92K,125K

181K,336K,458K

Gearbox Length"L"mm 33.5 43.5 53.5 63.5
Gearbox Efficiency 90% 81% 73% 65%



Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque Power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
JQM-7750123000 12 ≤220 3000 ≤1000 2200 350 7.7 ≥1180 ≥3500
JQM-7750124500 12 ≤450 4500 ≤2000 3300 500 16.5 ≥1690 ≥6500
JQM-7750126000 12 ≤900 6000 ≤4000 4500 750 34.5 ≥2700 ≥13000
JQM-7750243000 24 ≤110 3000 ≤500 2200 350 7.7 ≥1180 ≥1800
JQM-7750244500 24 ≤230 4500 ≤1000 3300 500 16.5 ≥1690 ≥3300
JQM-7750246000 24 ≤450 6000 ≤2000 4500 750 34.5 ≥2700 ≥7000



Gear Motor Mechanical Size:

JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer 1What a Model Number Tells You?

We follow some rules to create each model number. A model number would tell you a lot of useful messages. Here is a sample.



JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer 2

So here we can learn that it is a 37mm Round Spur gear motor, 12V driving motor #555, no load input speed 6000rpm and reduction ratio 100:1. Hey, what about output speed? You need to do a little calculation. Input speed 6000rpm ÷ reduction ratio 100 = 60rpm



Gear Motor Electric Data:

Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-42RP77501212000-3.7K 12V 3243 ≤4700 2528 ≤20000 3 77.8 ≥43000 ≥12
JQM-42RP7750123500-3.7K 12V 945 ≤600 772 ≤3100 1.7 13.5 ≥8000 ≥8
JQM-42RP7750127000-3.7K 12V 1891 ≤1900 1544 ≤8900 2.5 39.6 ≥20000 ≥10
JQM-42RP7750126000-5K 12V 1200 ≤1200 1087 ≤6000 2.6 29.0 ≥17430 ≥13
JQM-42RP7750128000-25K 12V 320 ≤2000 226 ≤7200 15 34.8 ≥20500 ≥62
JQM-42RP7750127000-125K 12V 56 ≤1100 47 ≤7300 63 30.4 ≥20900 ≥313
JQM-42RP7750126000-49K 12V 122 ≤1250 97 ≤4650 22.3 22.2 ≥1730 ≥122
JQM-42RP7750126000-125K 12V 48 ≤950 37 ≤4200 52 19.7 ≥12000 ≥220
JQM-42RP7750123600-125K 12V 28 ≤550 23 ≤2100 43 10.1 ≥7100 ≥222
JQM-42RP7750246000-3.7K 24V 1621 ≤700 1414 ≤3800 2.3 33.4 ≥12000 ≥13.9
JQM-42RP77502410000-13K 24V 769 ≤1100 685 ≤7400 9.9 69.6 ≥27150 ≥62
JQM-42RP77502410000-13.7K 24V 730 ≤860 626 ≤5500 10.7 68.7 ≥2500 ≥64.6
JQM-42RP7750248000-25K 24V 320 ≤850 280 ≤4000 15 43.1 ≥14500 ≥80
JQM-42RP7750242100-49K 24V 42 ≤170 32 ≤700 13.5 4.4 ≥1400 ≥51
JQM-42RP7750243000-49K 24V 61 ≤200 53 ≤1100 15.8 8.6 ≥3500 ≥93
JQM-42RP7750242100-67K 24V 31 ≤130 23 ≤590 17 4.0 ≥1420 ≥75
JQM-42RP7750247000-67K 24V 104 ≤600 90 ≤3600 32 29.6 ≥13600 ≥216
JQM-42RP7750243600-125K 24V 28 ≤300 24 ≤1800 57 14.0 ≥5400 ≥300
JQM-42RP7750244500-181K 24V 24.8 ≤900 19 ≤3030 92 17.9 ≥6200 ≥368
JQM-42RP7750242000-336K 24V 6 ≤150 4.7 ≤500 57 2.7 ≥1000 ≥220
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in



Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


JQM-42RP775  12V  42mm Planetary Geared Brush Motor For Electric Lock Power Window Printer 7


FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.





Our motor products contain range:
